Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO-220
Features
■ Complementary PNP-NPN devices TIP41 - TIP42
■ New enhanced series
■ High switching speed
■ hFE grouping
■ hFE improved linearity
Applications
■ General purpose circuits
■ Audio amplifier
■ Power linear and switching
Description

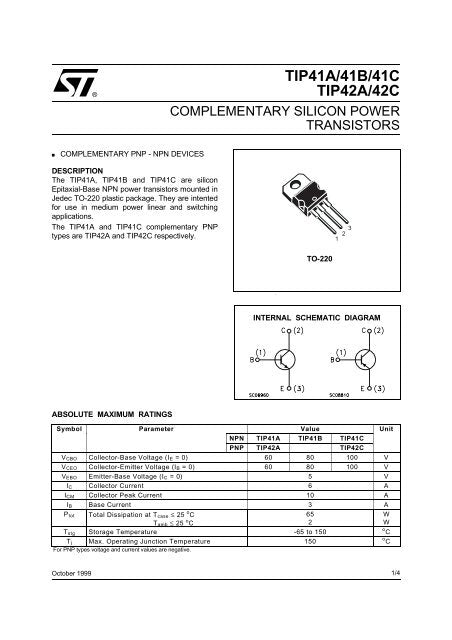

The TIP41C is a base island technology NPN
power transistor in TO-220 plastic package that
make this device suitable for audio, power linear
and switching applications. The complementary
PNP type is TIP42C
Package Included:

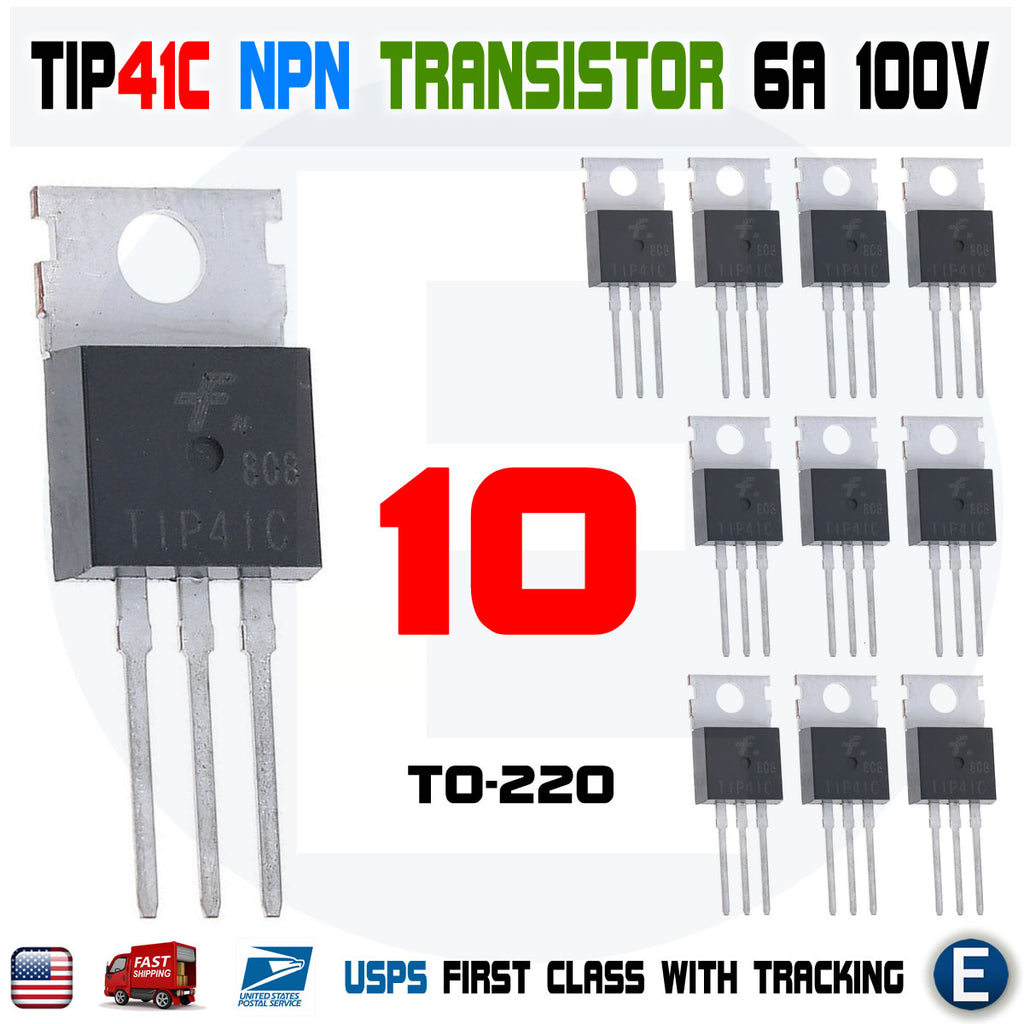

10pcs TIP41C TIP41 NPN Bipolar Transistor TO-220 100V 6A 65W Fairchild USA
