5pcs TIP36C TIP36 Power Transistor 25A 100V PNP bipolar
Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
TIP36C-5
The TIP36C TO-247 is a high-power, PNP complementary silicon power transistor designed for use in a wide range of applications such as audio amplification, switching power supplies, and DC-DC conv...
$6.63
customers are viewing this product
The TIP36C TO-247 is a high-power, PNP complementary silicon power transistor designed for use in a wide range of applications such as audio amplification, switching power supplies, and DC-DC converters. The device is specially packaged in a TO-247 package which allows for easy installation and improved thermal dissipation, making it suitable for high power applications where heat dissipation is crucial.
This device has a maximum collector-emitter voltage of 100V and a maximum collector current of 25A. The TIP36C is capable of handling high power dissipation while maintaining a low thermal resistance, making it ideal for power switching applications.
One of the key features of the TIP36C is its high current gain and low saturation voltage. This allows for improved efficiency and reduced power loss in applications that require high current switching. Additionally, the TIP36C has a high frequency capability and a low input capacitance, which allows for improved audio quality and reduced distortion in audio amplification applications.
The TIP36C is also designed for use in switching power supplies and DC-DC converters. It has a high frequency capability and a low input capacitance, which allows for improved efficiency and reduced power loss. Additionally, the TIP36C has a low input capacitance and a high output impedance, which allows for improved efficiency and reduced power loss.
The TIP36C TO-247 transistor is RoHS compliant and meets UL standards for safety and reliability. With its high current gain, low saturation voltage, and high power handling capabilities, the TIP36C TO-247 is an excellent choice for high power switching and audio amplification applications where thermal dissipation is crucial. The TIP36C is often used in a complementary pair with the NPN TIP35C, to form a complementary symmetric amplifier circuit.
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage 'Vcb': 140 V
Maximum Collector-Emitter Voltage 'Vce': 100 V
Maximum Emitter-Base Voltage 'Veb': 5 V
Maximum Collector Current 'Ic max': 25 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO-247
Package Included:

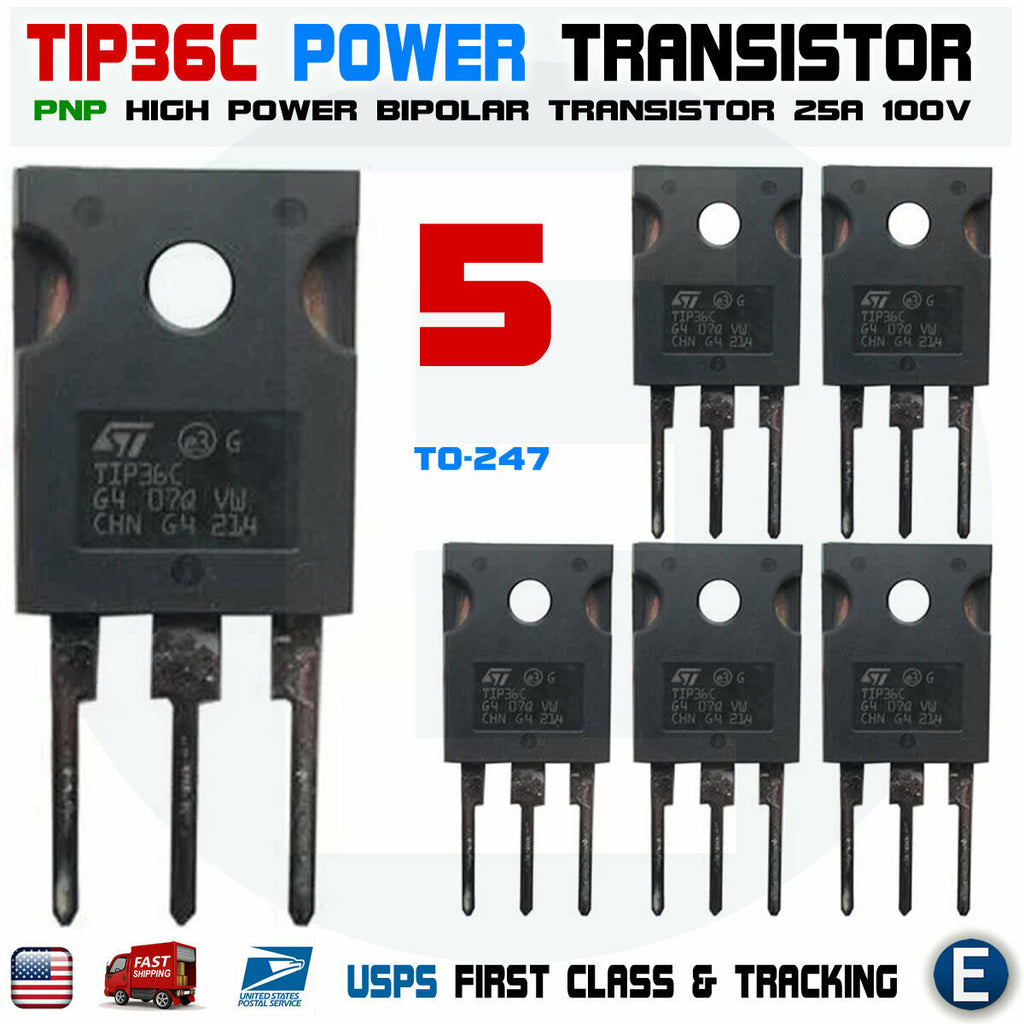

5pcs TIP36C TIP36 Power Transistor 25A 100V PNP bipolar to-247
