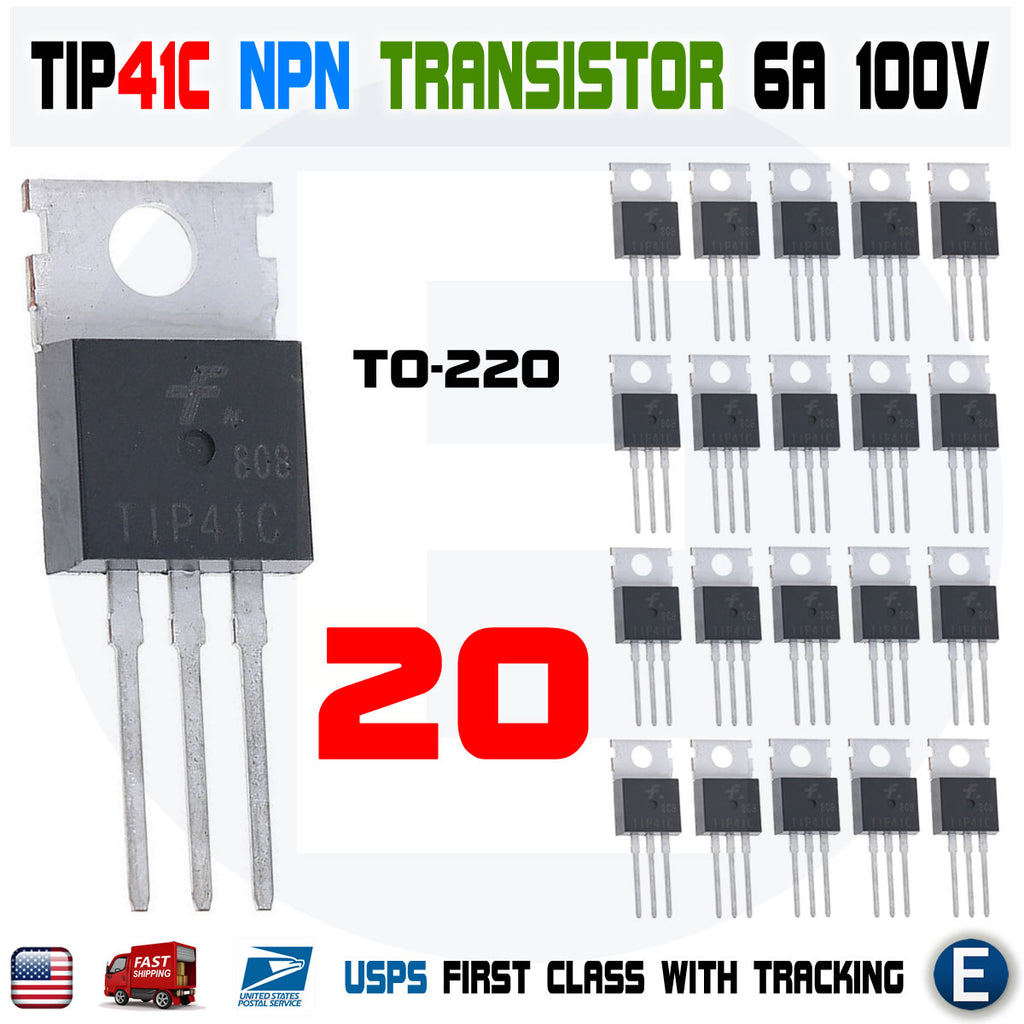

20pcs TIP41C TIP41 NPN Bipolar Transistor TO-220 100V 6A 65W Fairchild USA

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
Material of Transistor: SiPolarity: NPNMaximum Collector Power Dissipation (Pc): 65 WMaximum Collector-Base Voltage |Vcb|: 140 VMaximum Collector-Emitter Voltage |Vce|: 100 VMaximum Emitter-Base Vo...
$12.63
  customers are viewing this product

Material of Transistor: Si

Polarity: NPN
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO-220

Features
■ Complementary PNP-NPN devices TIP41 - TIP42
■ New enhanced series
■ High switching speed
■ hFE grouping
■ hFE improved linearity

Applications
■ General purpose circuits
■ Audio amplifier
■ Power linear and switching

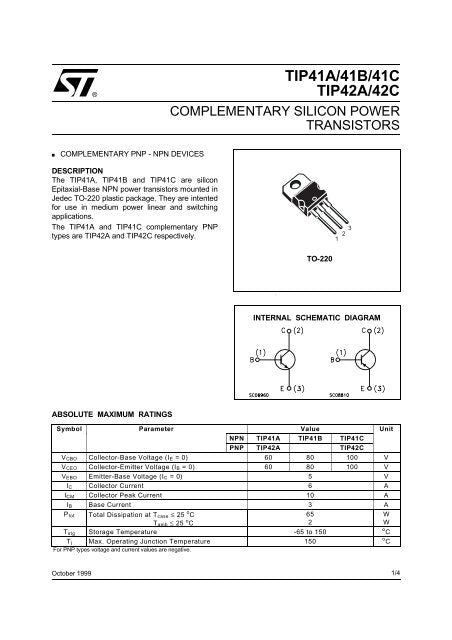

Description
The TIP41C is a base island technology NPN
power transistor in TO-220 plastic package that
make this device suitable for audio, power linear
and switching applications. The complementary
PNP type is TIP42C

Package Included:
10pcs TIP41C TIP41 NPN Bipolar Transistor TO-220 100V 6A 65W Fairchild USA
