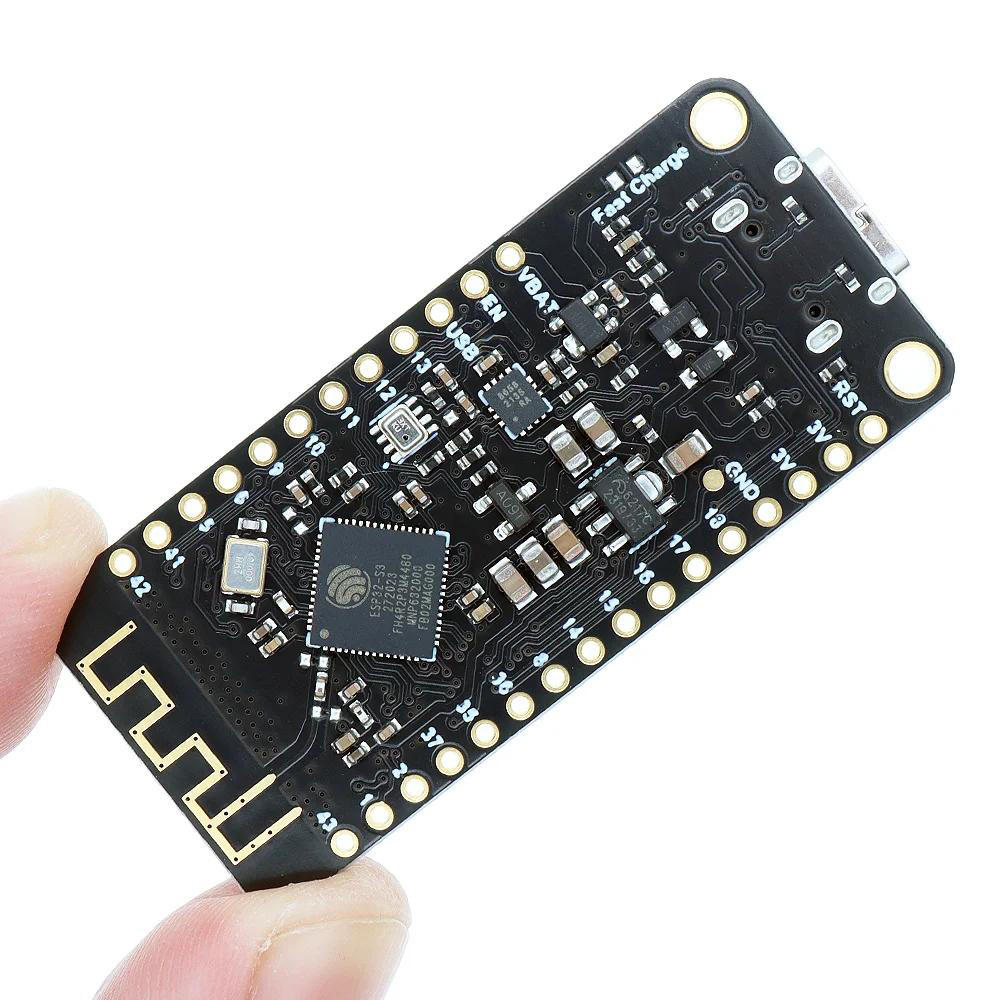

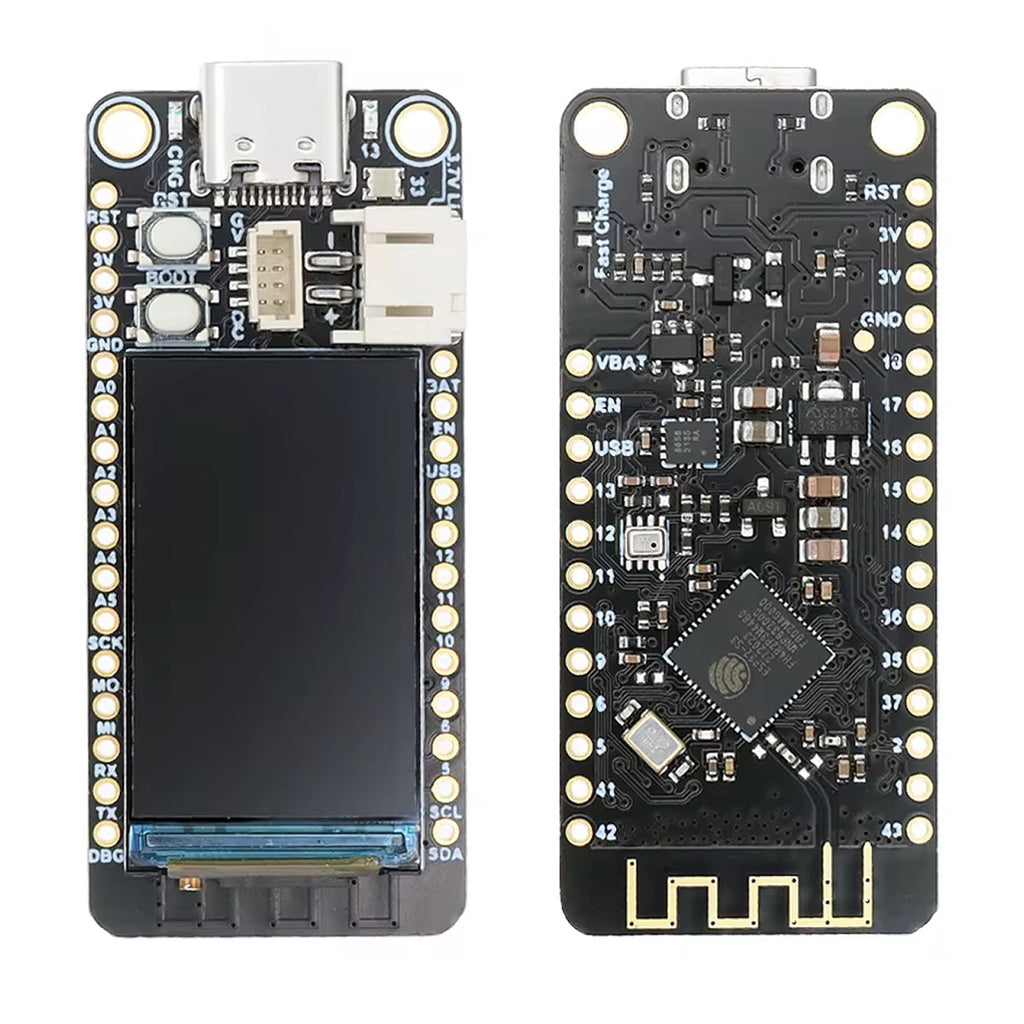

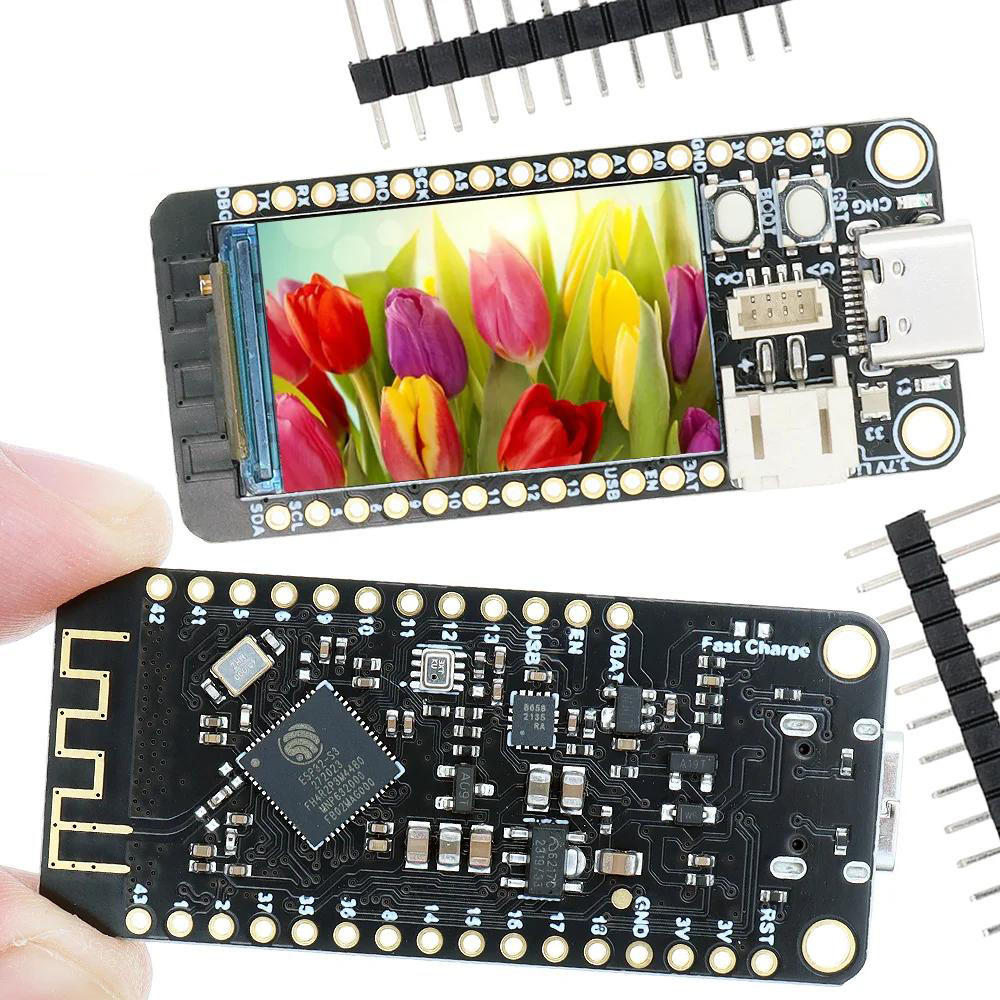

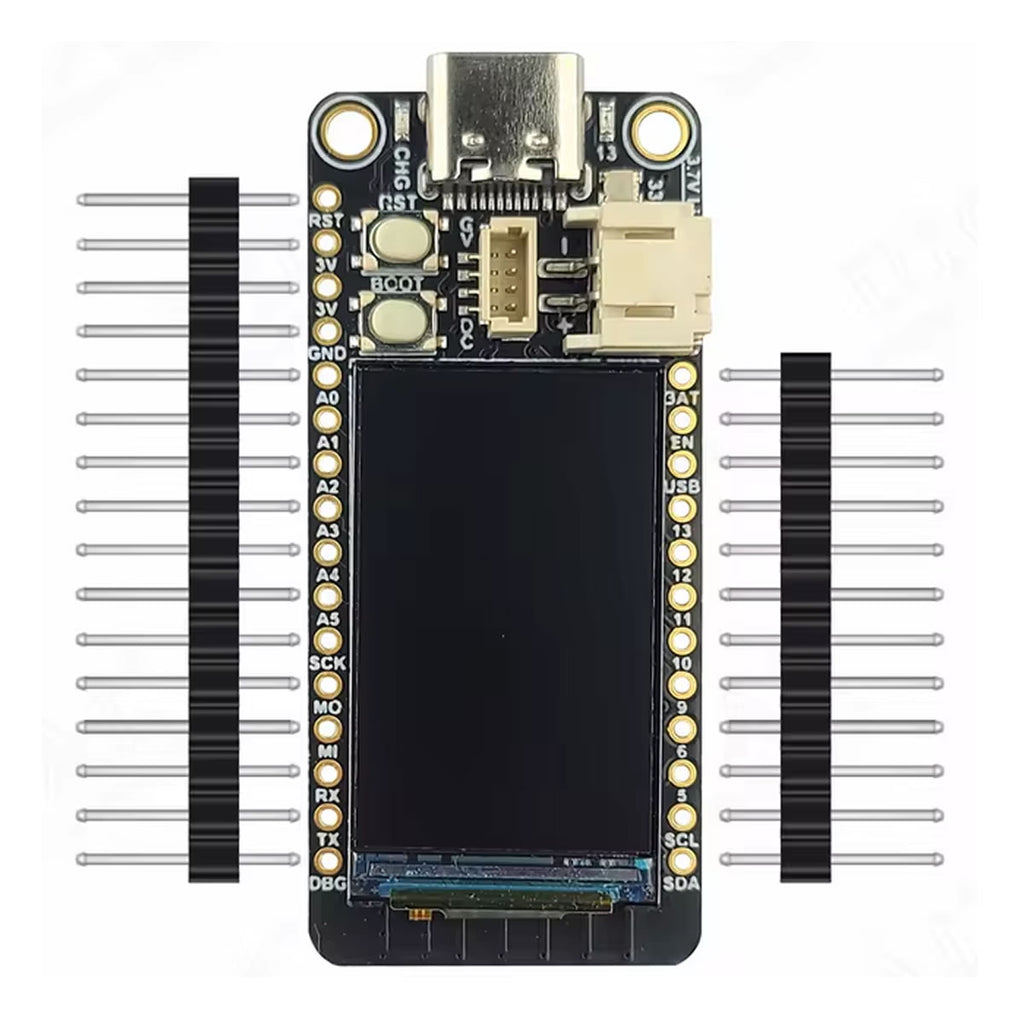

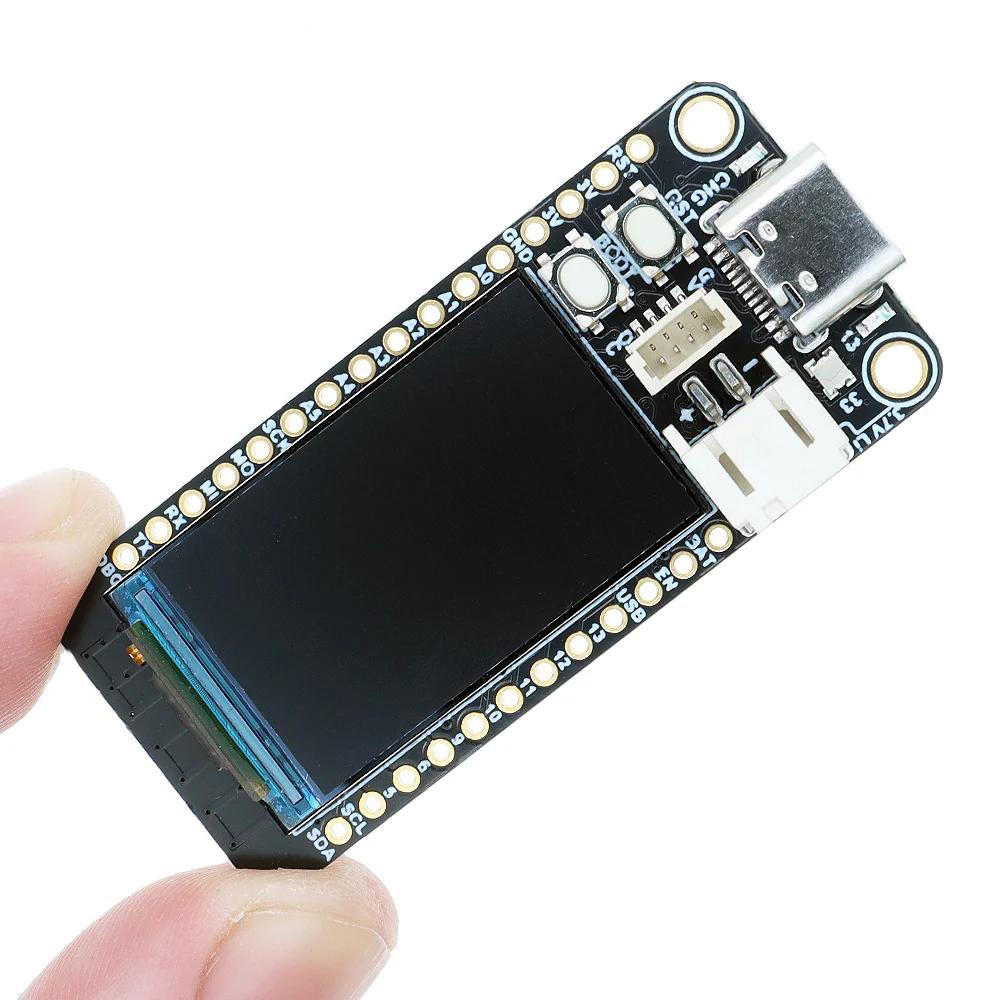

ESP32-S3 Development Board With 1.14 Inch TFT With BMP280 and QMI8658C

Zoom the image with the mouse

Sold Out

ESP32-S3 Development Board With 1.14 Inch TFT With BMP280 and QMI8658C Sensors

Availability Out of stock

Product Type Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Development Kits & Boards

Vendor Unbranded

SKU: C-02-08-05

$15.98

customers are viewing this product

TS-ESP32-S3 Development Board, a powerful and versatile platform designed for developers and hobbyists alike. This board integrates an ESP32-S3 microcontroller with a 1.14-inch TFT display, BMP280 sensor, and QMI8658C sensor, offering a comprehensive solution for various IoT and embedded applications.

Key Features:

ESP32-S3 Microcontroller:
Dual-core Xtensa LX7 processor
Wi-Fi 802.11 b/g/n
Bluetooth 5.0
USB OTG support
Abundant GPIOs for peripheral interfacing
1.14-Inch TFT Display:
Dual-core 240 MHz Tensilica processor
Built-in 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE) connectivity
4 MB Flash memory
2 MB PSRAM

Additional Features:
USB Type-C connector for power and programming
LiPo battery charging support
STEMMA QT connector for easy expansion with I²C devices
Onboard reset and boot buttons
Programmable RGB LED

Resolution: 240x135 pixels
Driver IC: ST7789
SPI interface
Vivid color reproduction
BMP280 Sensor:

Digital barometric pressure sensor
Pressure range: 300 to 1100 hPa
Temperature measurement range: -40 to 85°C
I2C interface
QMI8658C Sensor:

6-axis motion sensor (3-axis gyroscope + 3-axis accelerometer)
High sensitivity and low noise
I2C interface
Additional Specifications:

Power Supply: 5V via USB-C
Programming: Compatible with Arduino IDE and ESP-IDF
Dimensions: Compact form factor for easy integration
This development board is ideal for projects involving environmental monitoring, motion detection, and user interface development. Its combination of advanced sensors and display capabilities makes it a versatile choice for a wide range of applications.

Package Included:
1 x ESP32-S3 Development Board With 1.14 Inch TFT With BMP280 and QMI8658C Sensors
Instructions are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
