Esp32-S3 Development board ESP32 SuperMini development board WiFi Bluetooth
In stock
Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Development Kits & Boards
D-01-01-06
SUPER MINI ESP32-S3 Development Board BT 5.0 Wifi Module for Internet of Things RISC-V 23.5mm*18mm Low Power 18Pin 4M Flash ESP32 S3
ESP32S3SuperMini is an IoT mini development board based on the ...
$10.98
customers are viewing this product
SUPER MINI ESP32-S3 Development Board BT 5.0 Wifi Module for Internet of Things RISC-V 23.5mm*18mm Low Power 18Pin 4M Flash ESP32 S3
ESP32S3SuperMini is an IoT mini development board based on the Espressif ESP32-S3 WiFi/ Bluetooth dual-mode chip. The ESP32-S3 is a 32-bit RISC-V CPU that contains the FPU (floating point unit), which can perform 32-bit single-precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11b /g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also has a small and delicate form factor combined with a single-sided surface mount design. It is equipped with a wealth of interfaces, with 11 digital I/ OS that can be used as PWM pins and 4 analog I/ OS that can be used as ADC pins. It supports four serial interfaces: UART, I2C and SPI. The board also has a small reset button and a boot loader mode button.
Based on the above features, ESP32S3SuperMini is positioned as a high-performance, low-power and cost-effective iot mini development board suitable for low-power iot applications and wireless wearable applications.
Product parameter:
Powerful CPU: ESP32-S3, 32-bit RISC-V single-core processor, running at up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth: Bluetooth 5.0
Ultra-low power consumption: deep sleep power consumption of about 43μA
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
Chip model: ESP32S3FH4R2

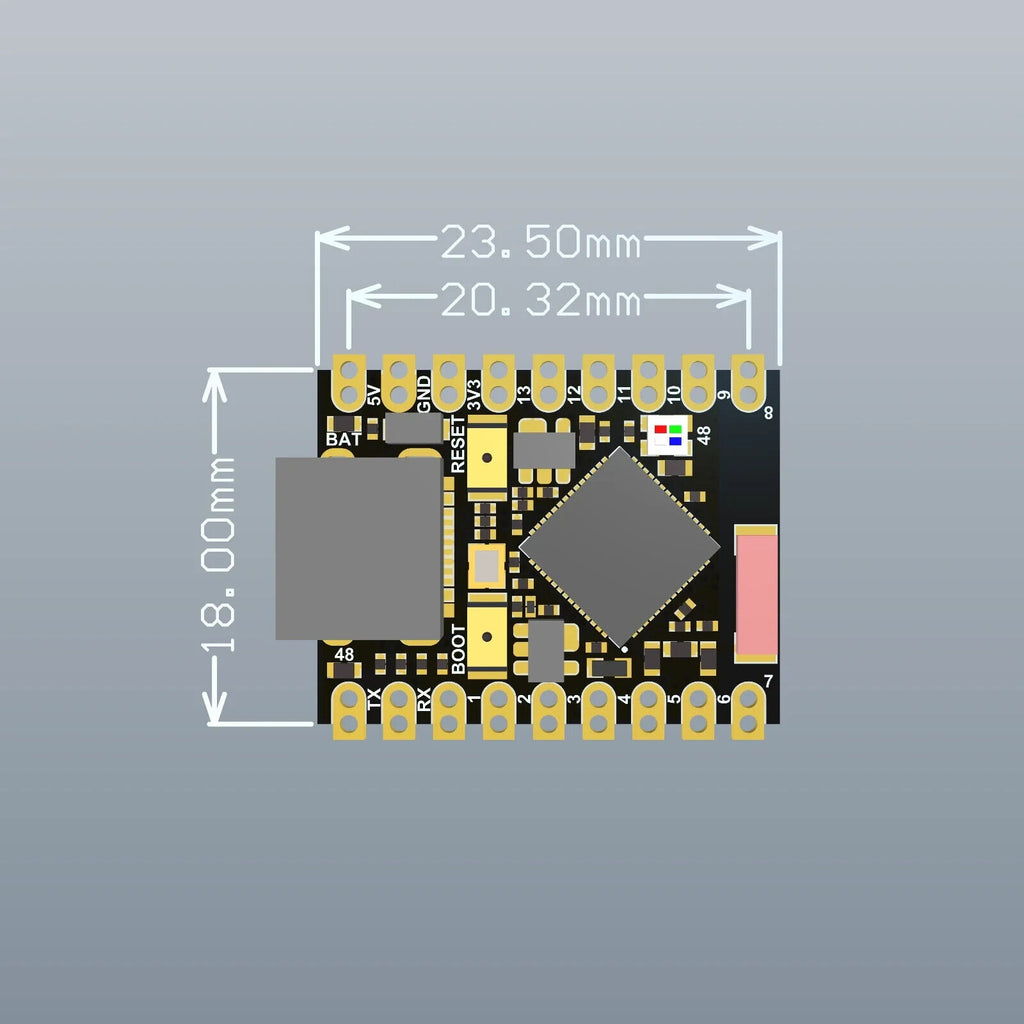

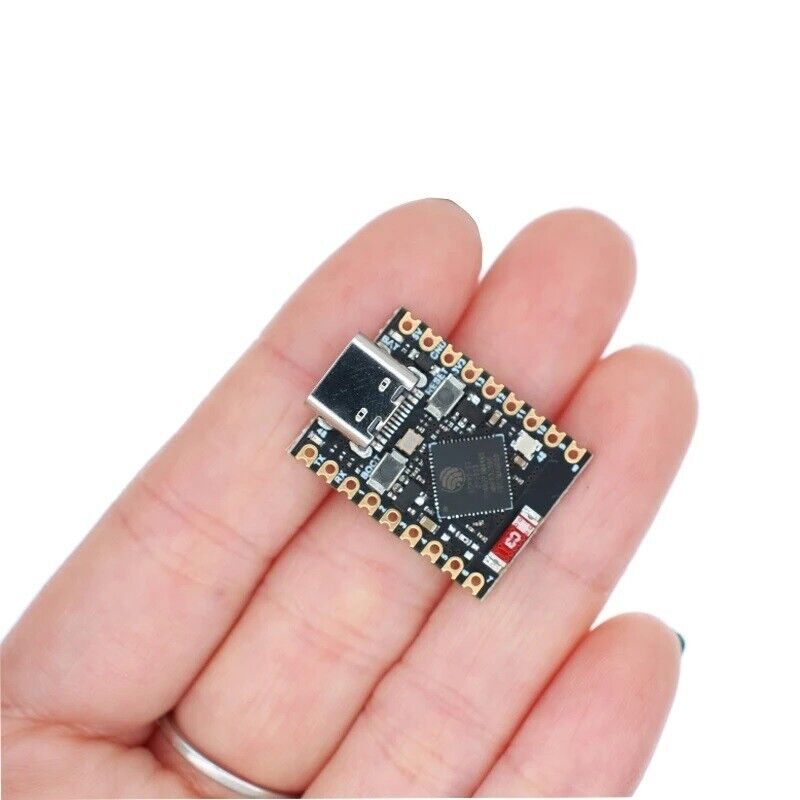

Ultra-small size: As small as the thumb (22.52x18mm) classic shape, suitable for wearables and small projects
Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup
Rich interface: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
Onboard RGB, blue LED: common GPIO48 pin
Package included:

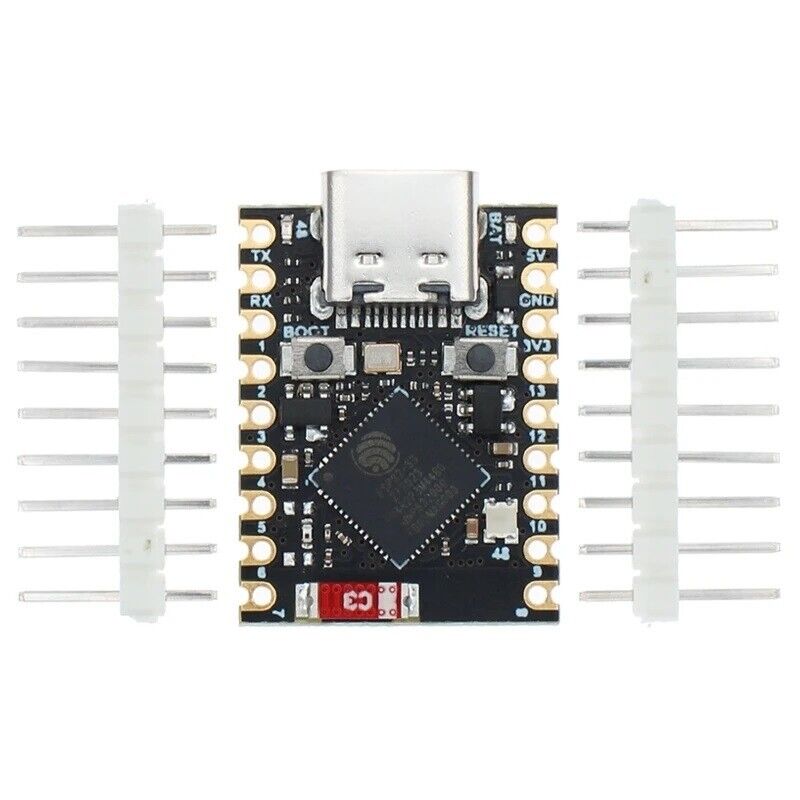

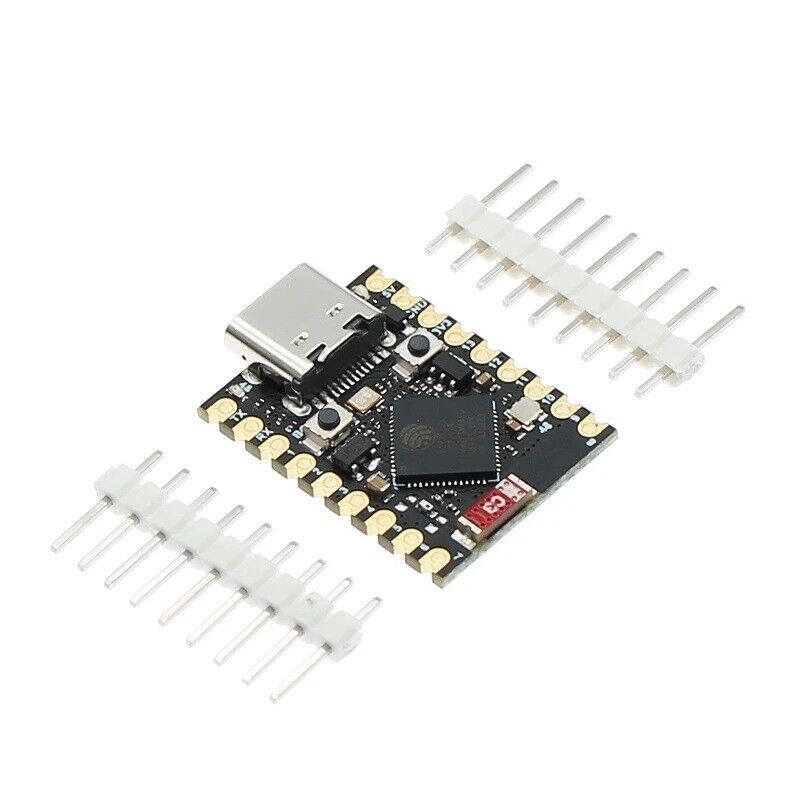

1 x Esp32-S3 Development board ESP32 SuperMini development board WiFi Bluetooth
2 x male pins
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
