UNO R3 ATmega328P CH340g Micro USB Board Arduino Compatible Black Rev 3
UNO R3 ATMEGA328P Type C USB - Compatible with Arduino
The Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 ...
$9.98
customers are viewing this product

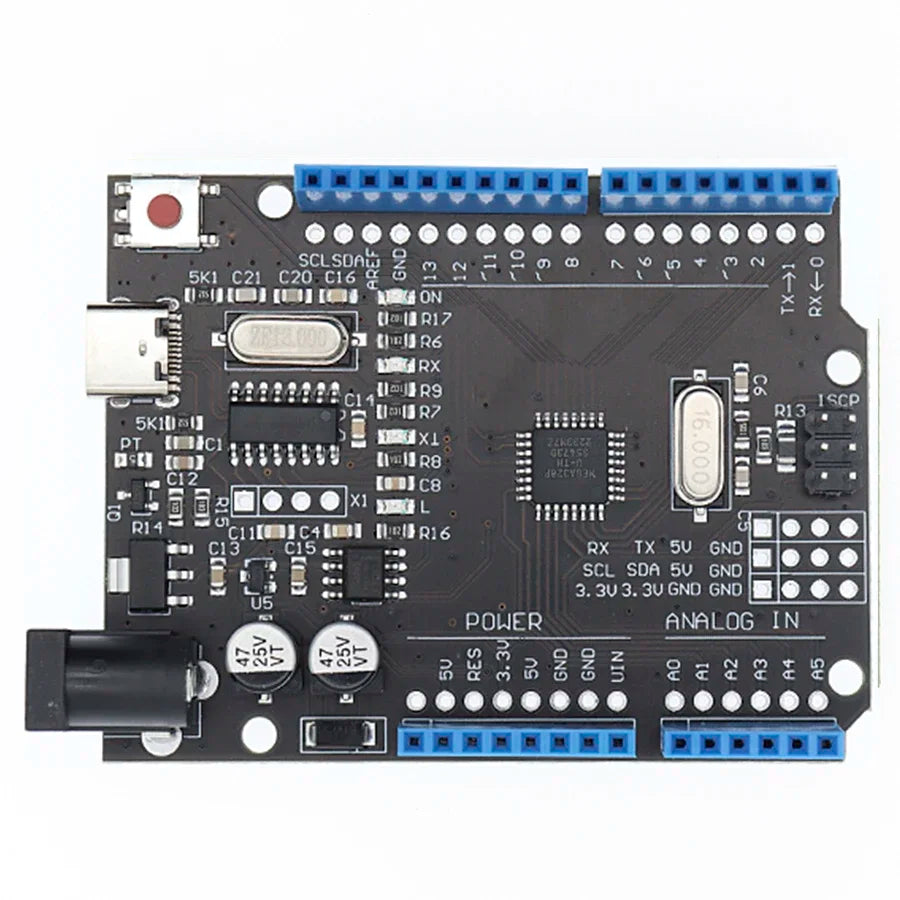

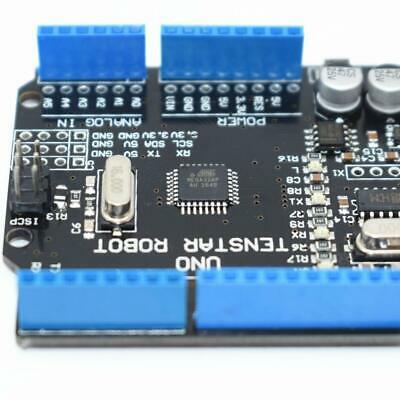

UNO R3 ATMEGA328P Type C USB - Compatible with Arduino
The Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Revision 3 of the board has the following new features:
1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
Stronger RESET circuit.
"Uno" means one in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.
Advantages:
1 completely solve the traditional UNO board win7 and win8 system is not compatible with the above instability. Especially in the pirated 64-bit WIN7 system, the official board can not be installed driver, and this version is very simple and easy to install.
2. Increase the pin socket, easy to use DuPont line.
3. Replace the 16u2, so that the cost reduced to half, consumers get the most benefits
Download the program simple and convenient. You can simply use the sensor, a variety of electronic components connected (such as: LED lights, buzzers, buttons, photoresistors, etc.), to make all kinds of interesting works.
The use of high-speed microprocessor controller (ATMEGA328), the development of user interface and environment are very simple, easy to understand, very suitable for beginners to learn.
Performance description
I / O digital input / output terminals 0 ~ 13.
I / O analog input / output terminals 0 ~ 5.
Support ISP download function.
Input voltage: connected to the computer USB without external power supply, external power supply 5V ~ 9V DC voltage input.
Output voltage: 5V DC voltage output and 3.3V DC voltage output.
Using Atmel Atmega328P microprocessor controller
Specifications:
Microcontroller: ATmega328P
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Type C USB
Package Included:

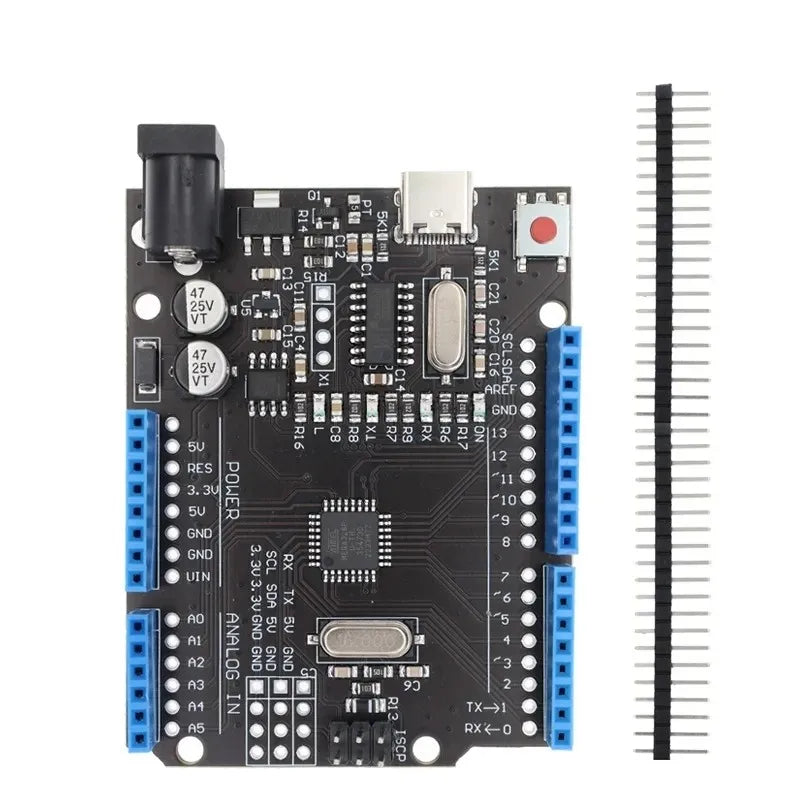

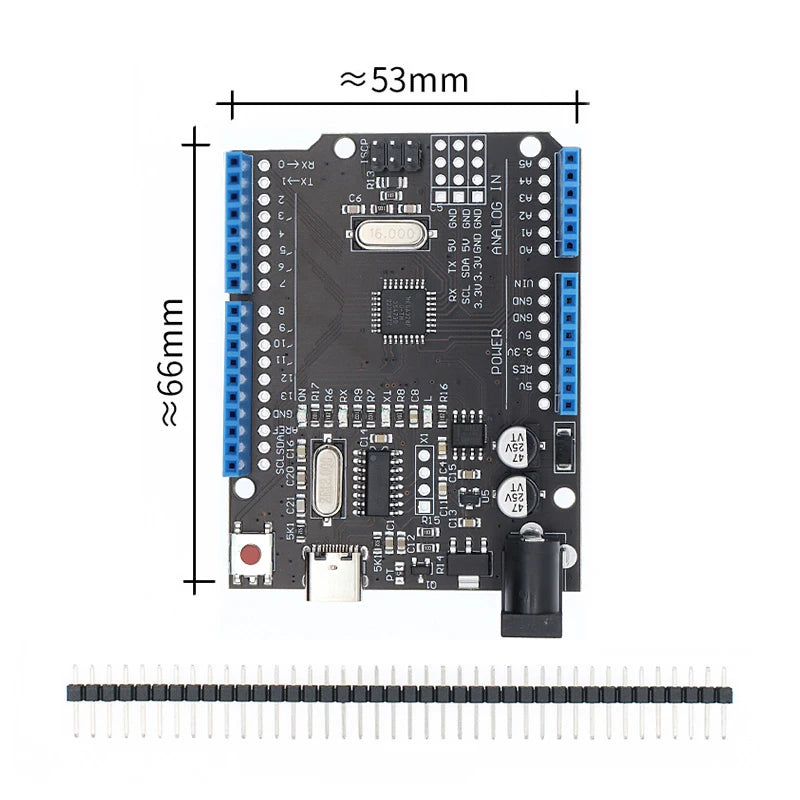

1 x UNO R3 ATmega328P CH340 Type C USB Board Arduino Compatible Black Rev 3.0
Instructions are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
