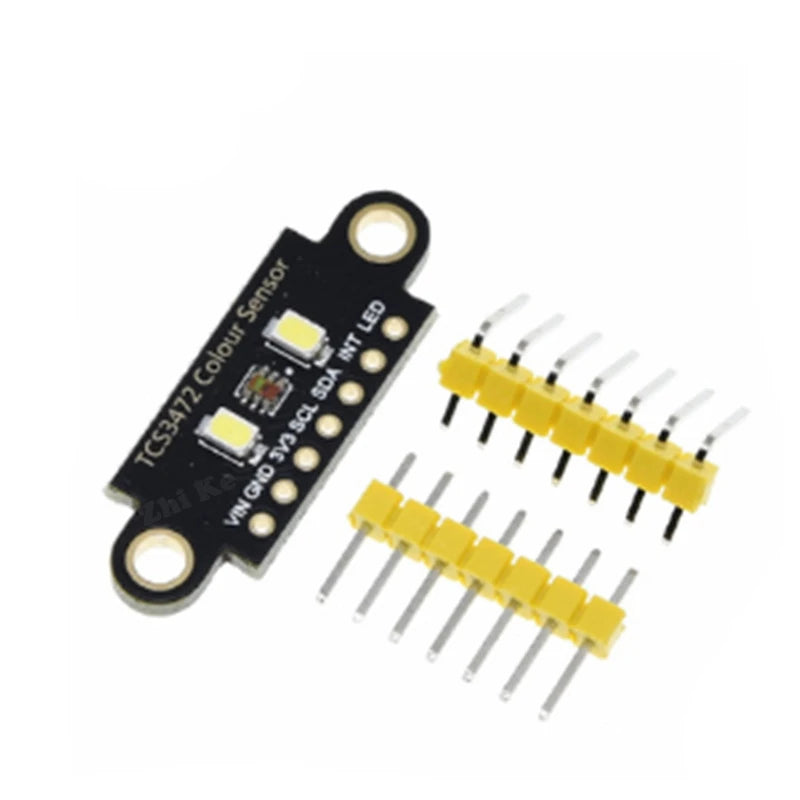

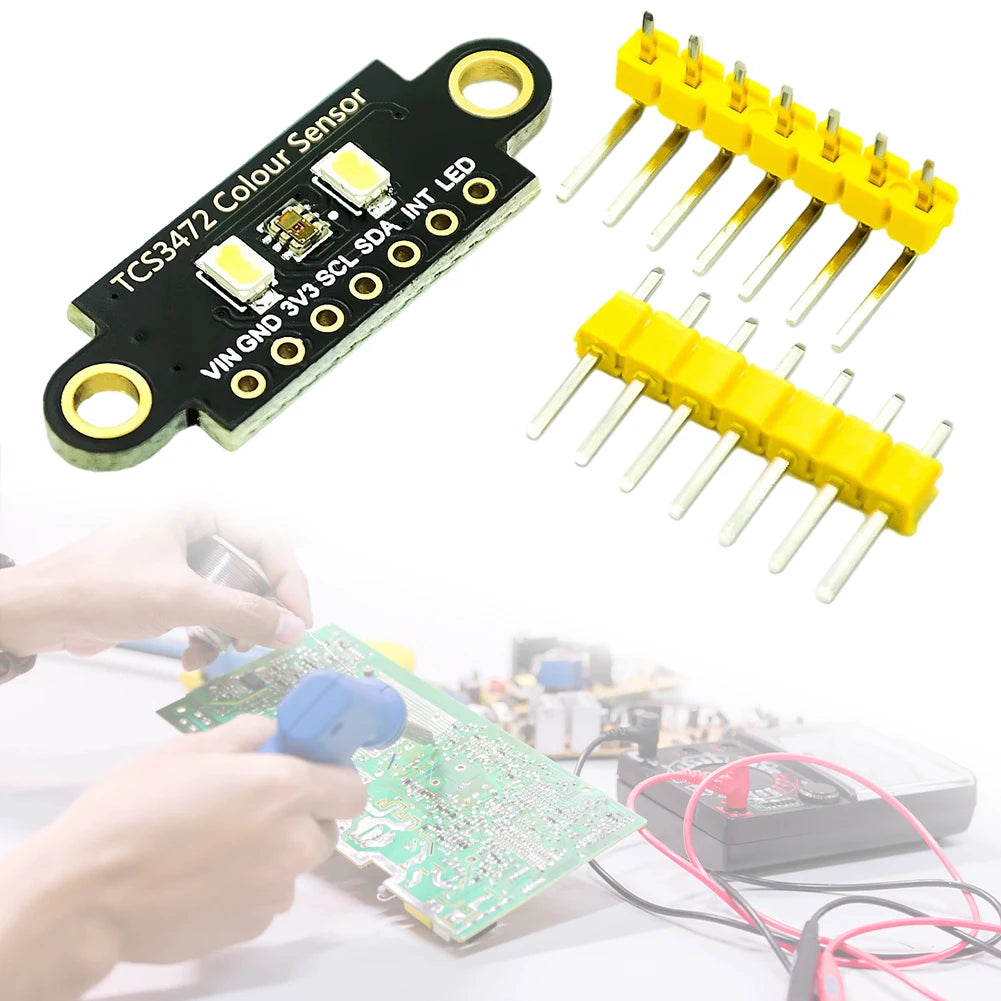

TCS34725 RGB 34725 Light Color Sensor Recognition Module For Arduino STM32 IIC
This module is based on AMS's TCS3472XFN color light digitizer as the core color sensor, the sensor provides
Digital output of red, green, blue (RGB) and clear light sensor values. The integrated i...
$3.98
customers are viewing this product
This module is based on AMS's TCS3472XFN color light digitizer as the core color sensor, the sensor provides
Digital output of red, green, blue (RGB) and clear light sensor values. The integrated infrared blocking filter can minimize the infrared spectral components of the incident light, and can accurately perform color measurement. With high sensitivity, wide dynamic range and infrared
Blocking filter. Minimize the effects of R and UV spectral components to produce accurate color measurements. And with ambient light intensity

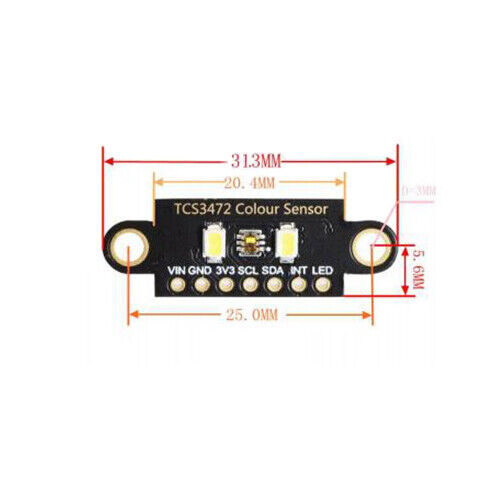

Detection and maskable interrupts. Communication via I2C interface. This design is based on the same design principle and provides 2 different shapes

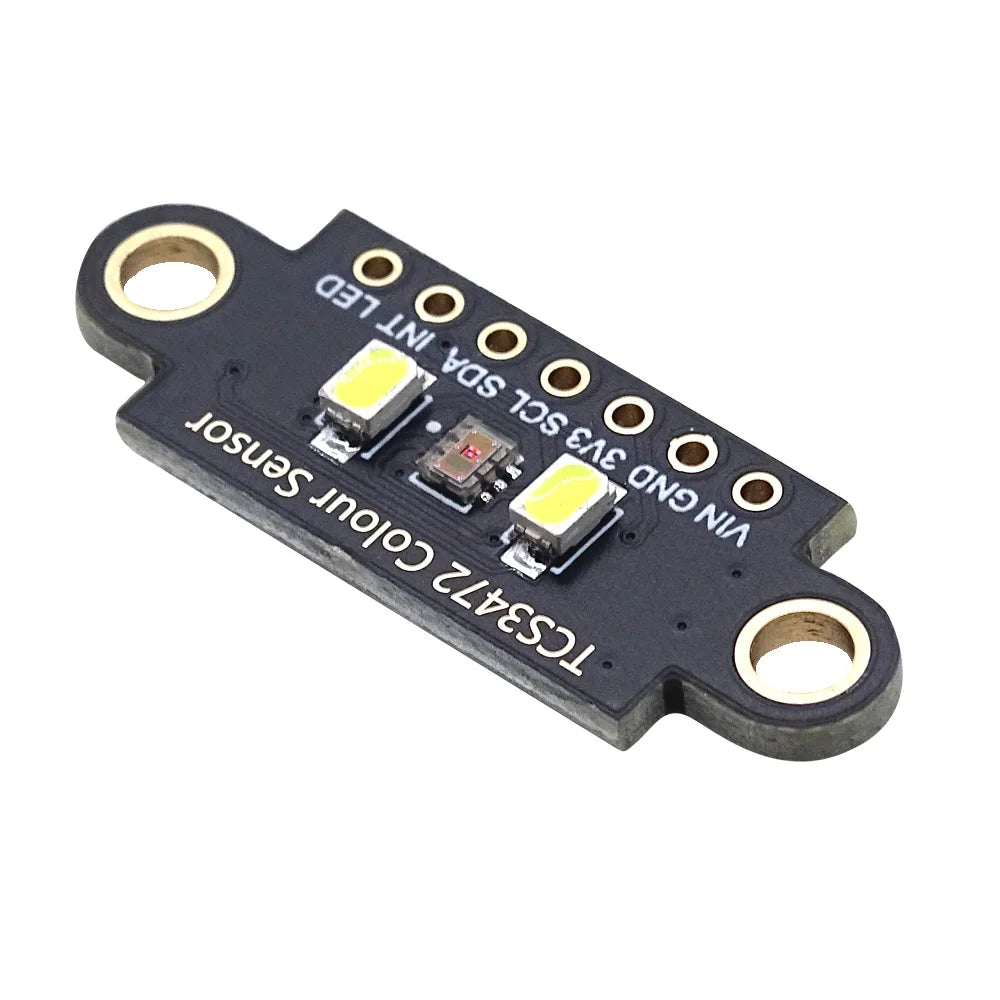

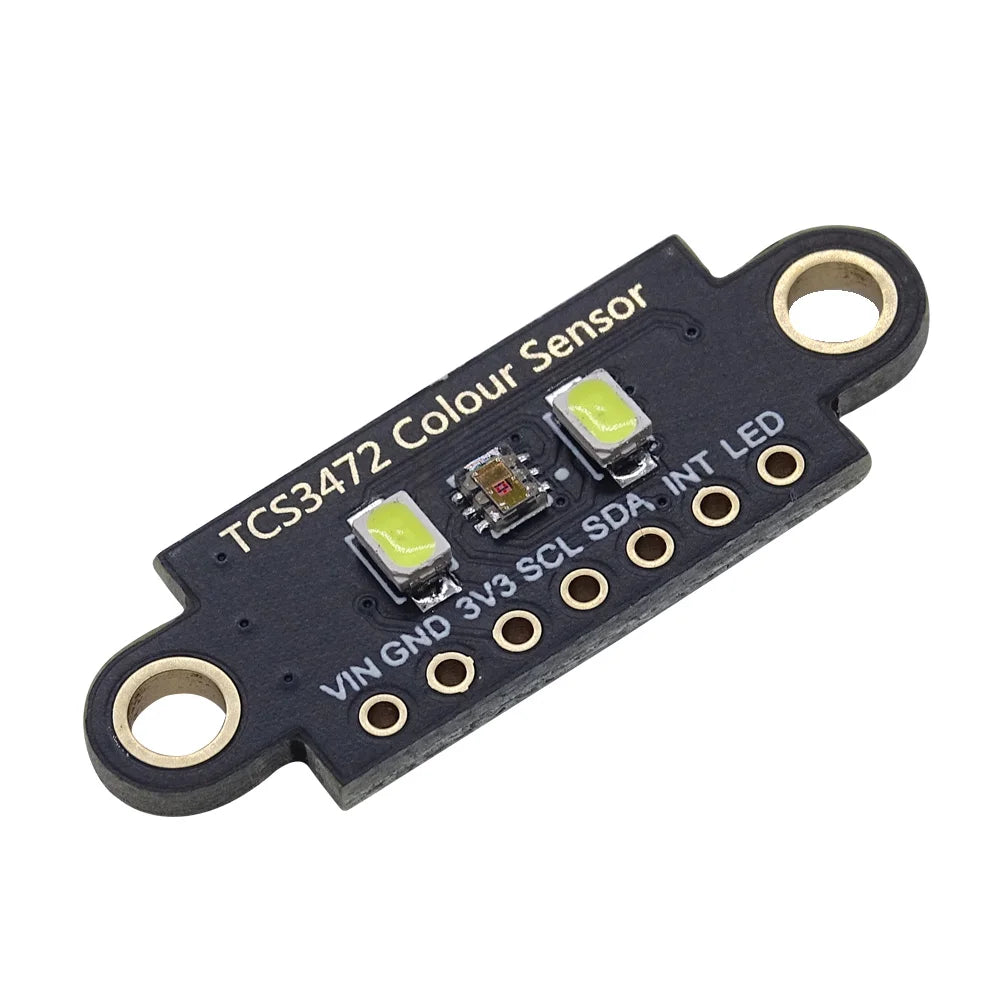

The design (two-hole version) provides users with more options for installation size and environment. The two-hole version is equipped with 2 LED lights to fill the object. This design provides Ardunio and STM32 sample programs.
Product parameters:
Working voltage: 3.3V/5V
Logic voltage: 3.3V/5v
Communication interface: I2C

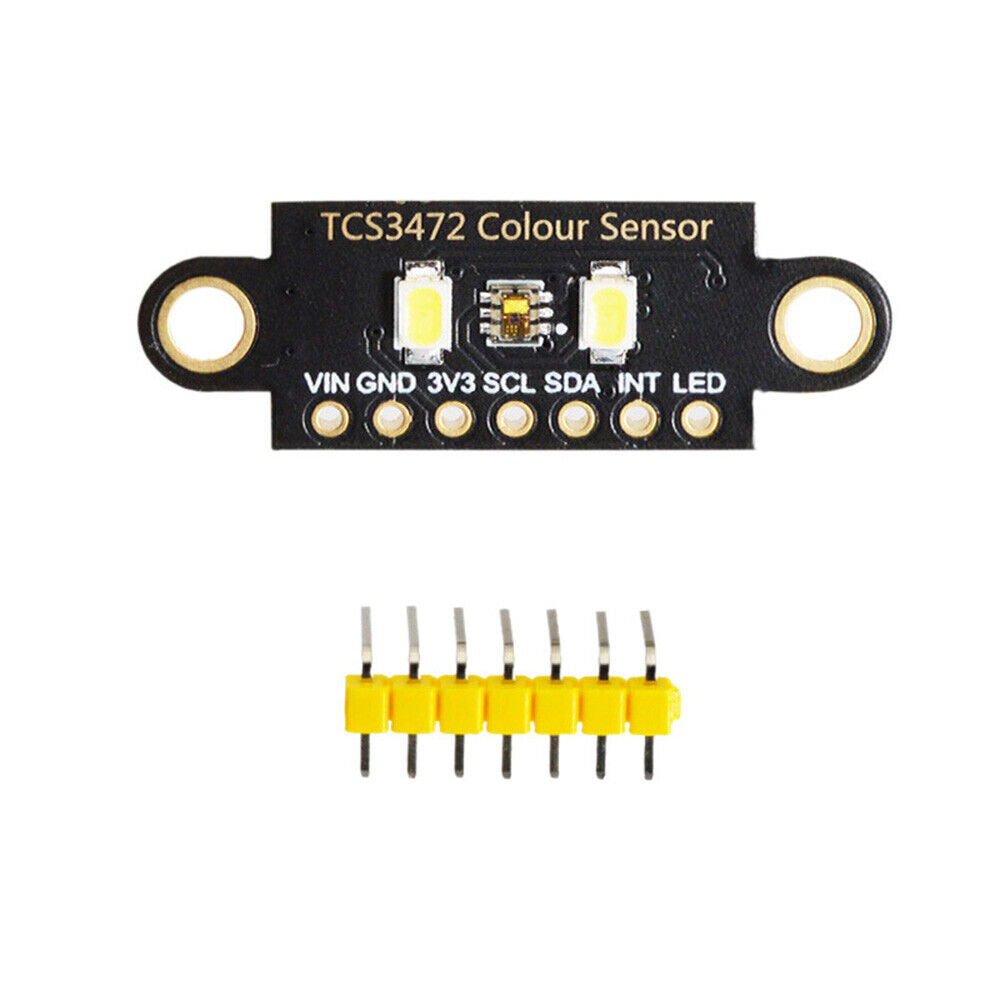

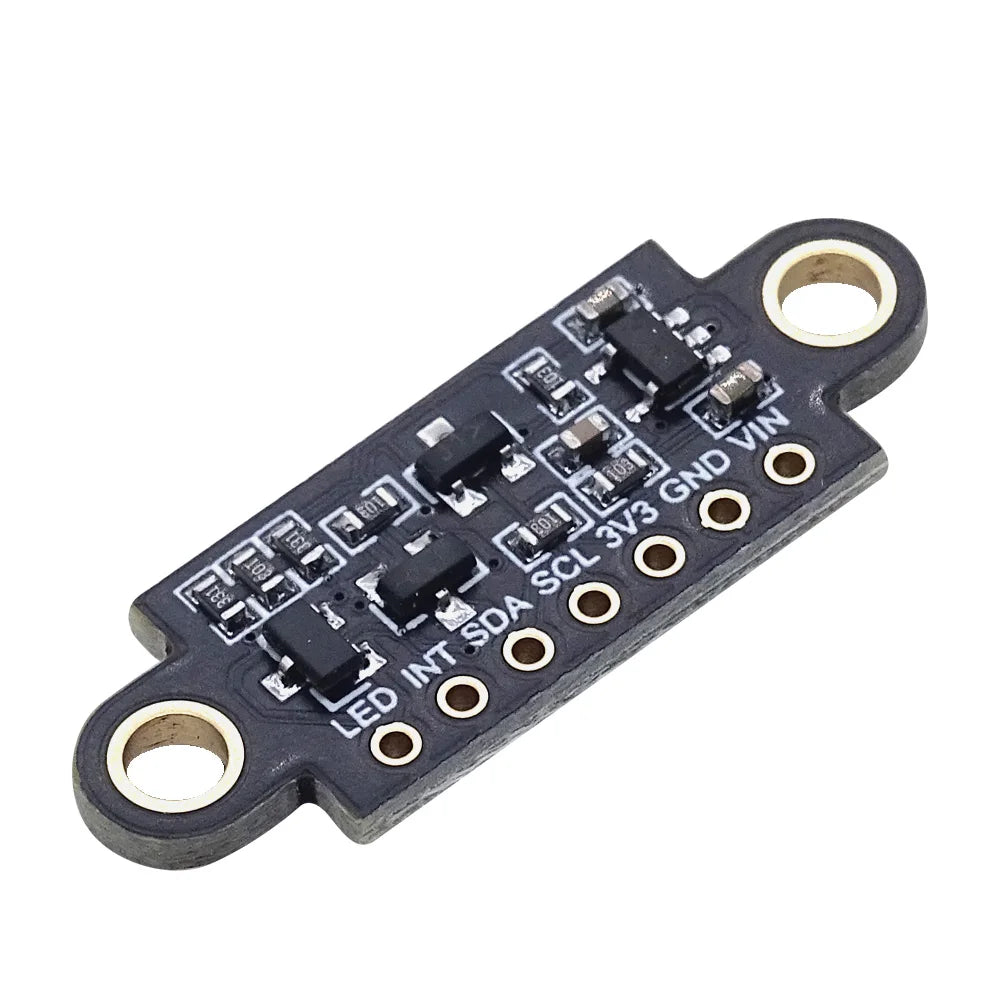

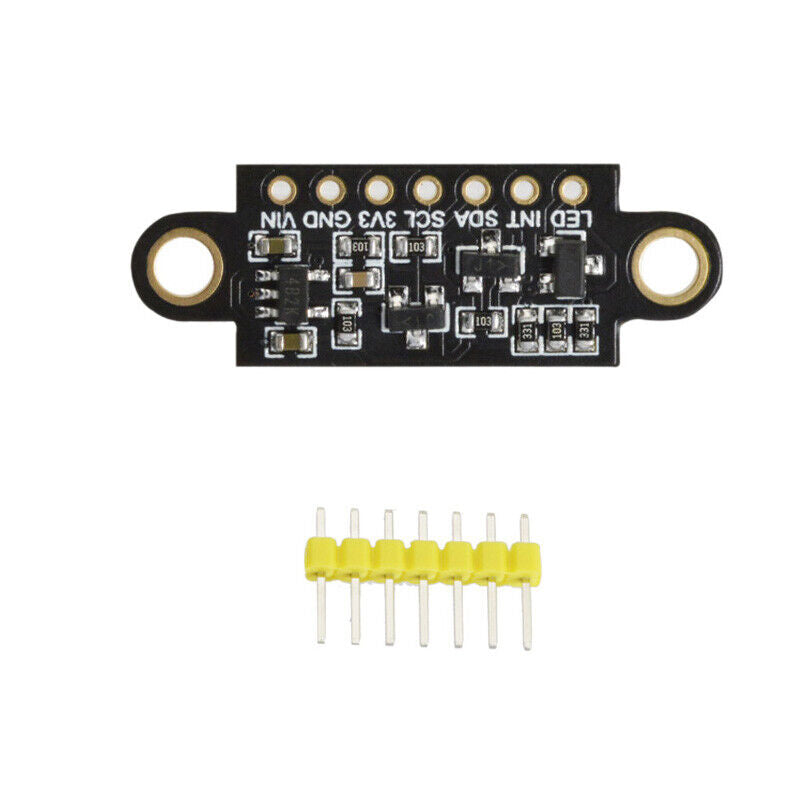

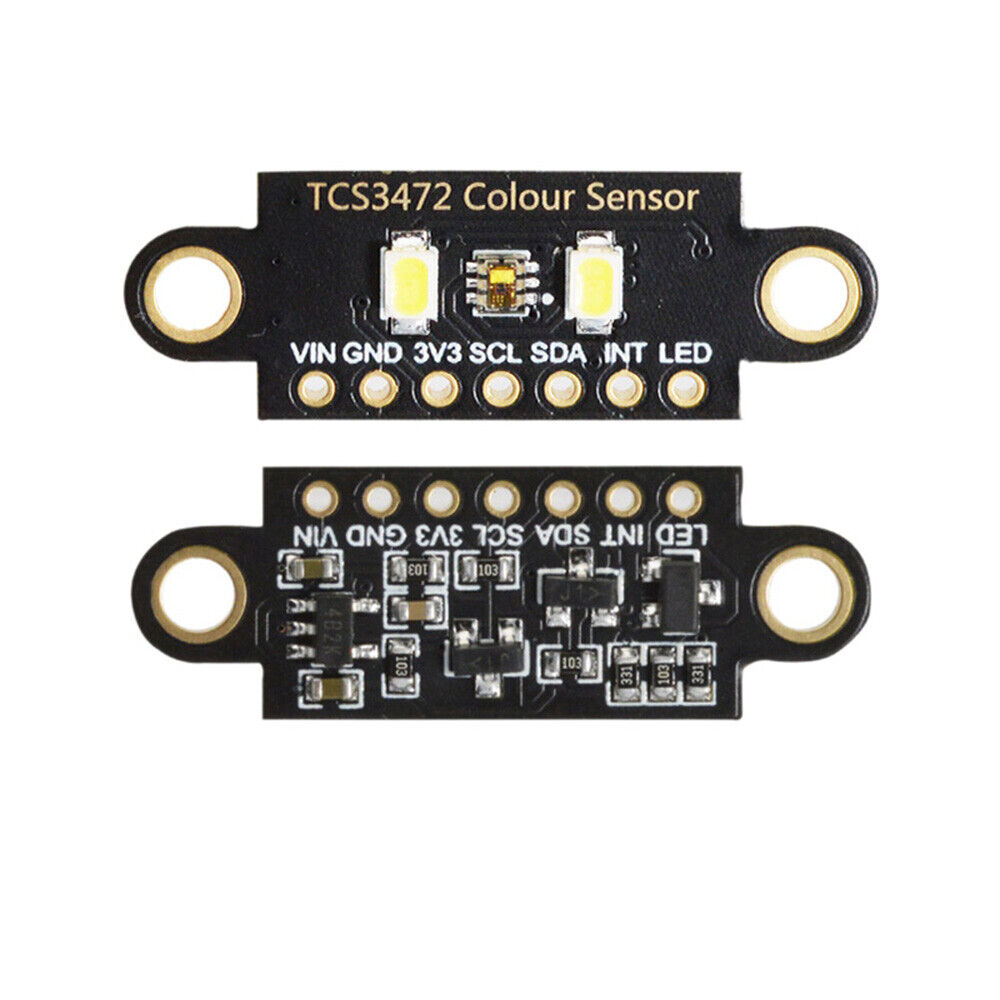

Interface Description:
Power pin
VIN: 3.3V/5V power supply+
GND: power ground-
3V3: 3.3v
SCL: 12C clock input
SDA: 12C data input
INT: interrupt output (open drain output)
LED: light emitting diode
Features:
1. 65-uA wait state with programmable wait state time from 2.4 ms to > 7 Seconds
2. Programmable Analog Gain and Integration Time
3. 3,800,000:1 Dynamic Range
4. Maskable Interrupt
5. Power management
6. Low Power: 2.5-uA Sleep State
7. I2C fast mode compatible interface
8. Data rates up to 400 kbit/s
Applications:
1. RGB LED Backlight Control
2. Light Color Temperature Measurement
3. Ambient Light Sensing for Display Backlight Control
4. Fluid and Gas Analysis
5. Product Color Verification and Sorting
Package Included:

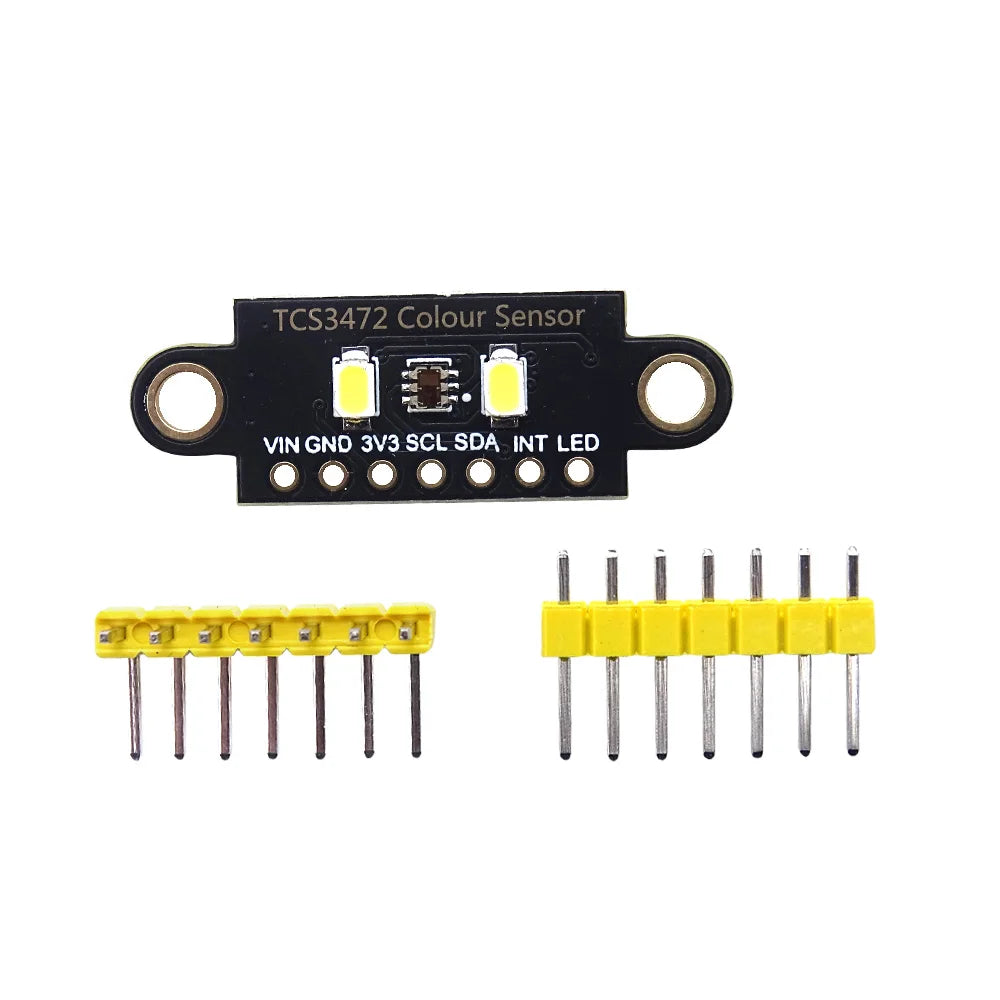

1 x TCS34725 RGB 34725 Light Color Sensor Recognition Module For Arduino STM32 IIC
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
