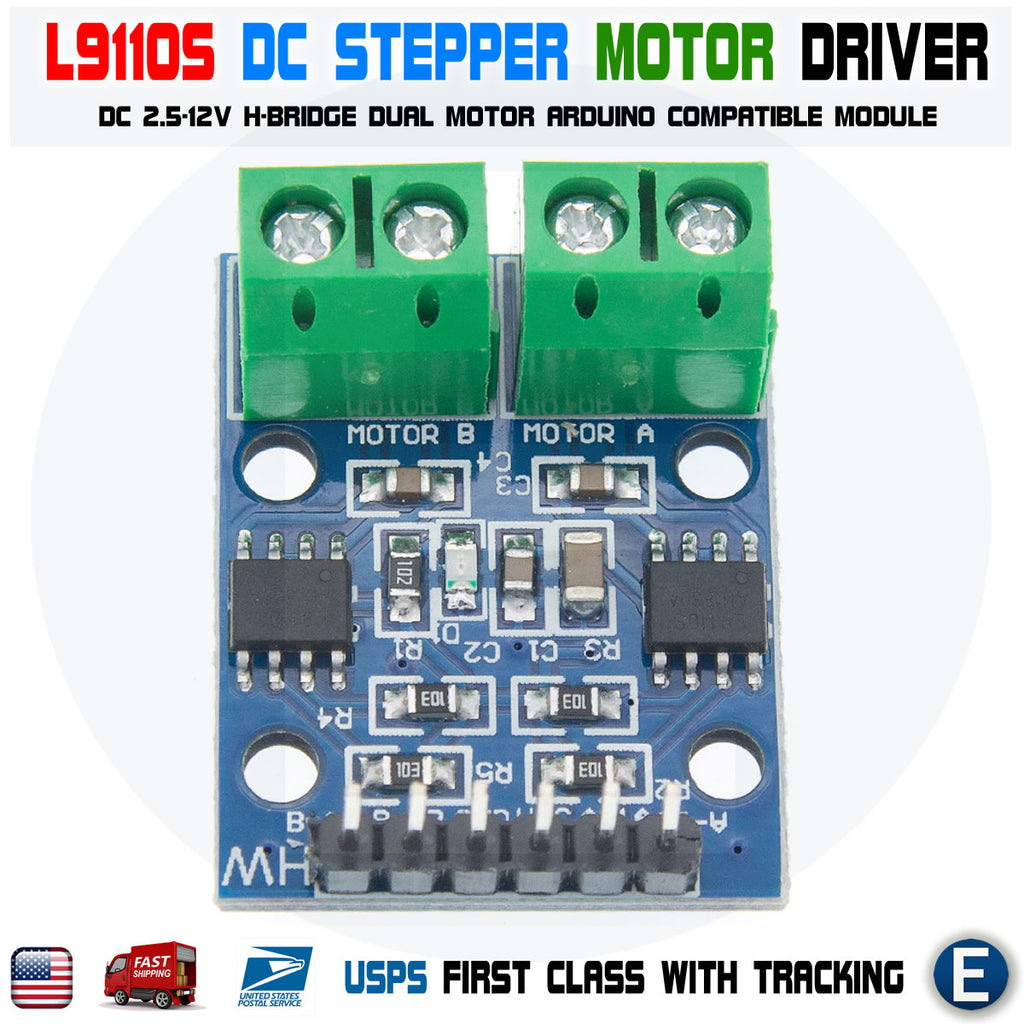

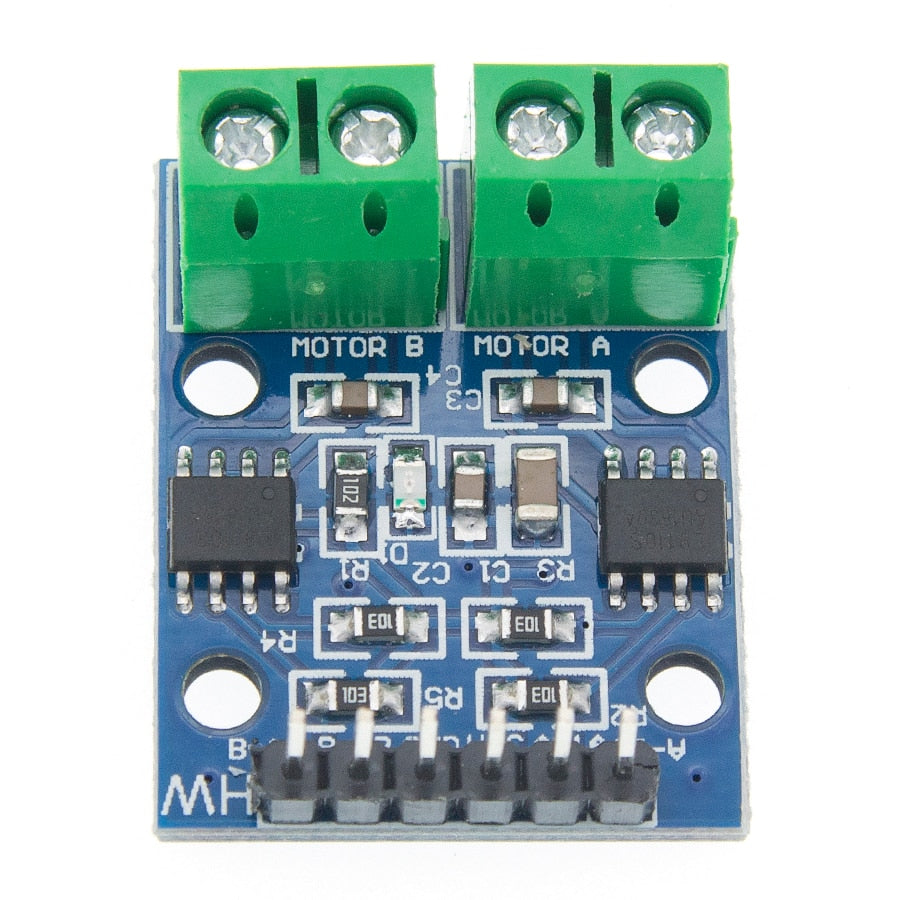

Dual motor driver chip L9110S
Module supply voltage :2.5-12V
Suitable motor Range: between the motor operating voltage 2.5v-12V, the maximum operating current 0.8A, voltage and current smart car currently available in the market are within this range
Can drive two DC motors , or a 4-wire 2 -phase stepper motor.
PCB size : 2.8cm * 2.1cm ultra- small size, suitable for assembly
A fixed mounting hole diameter : 3mm

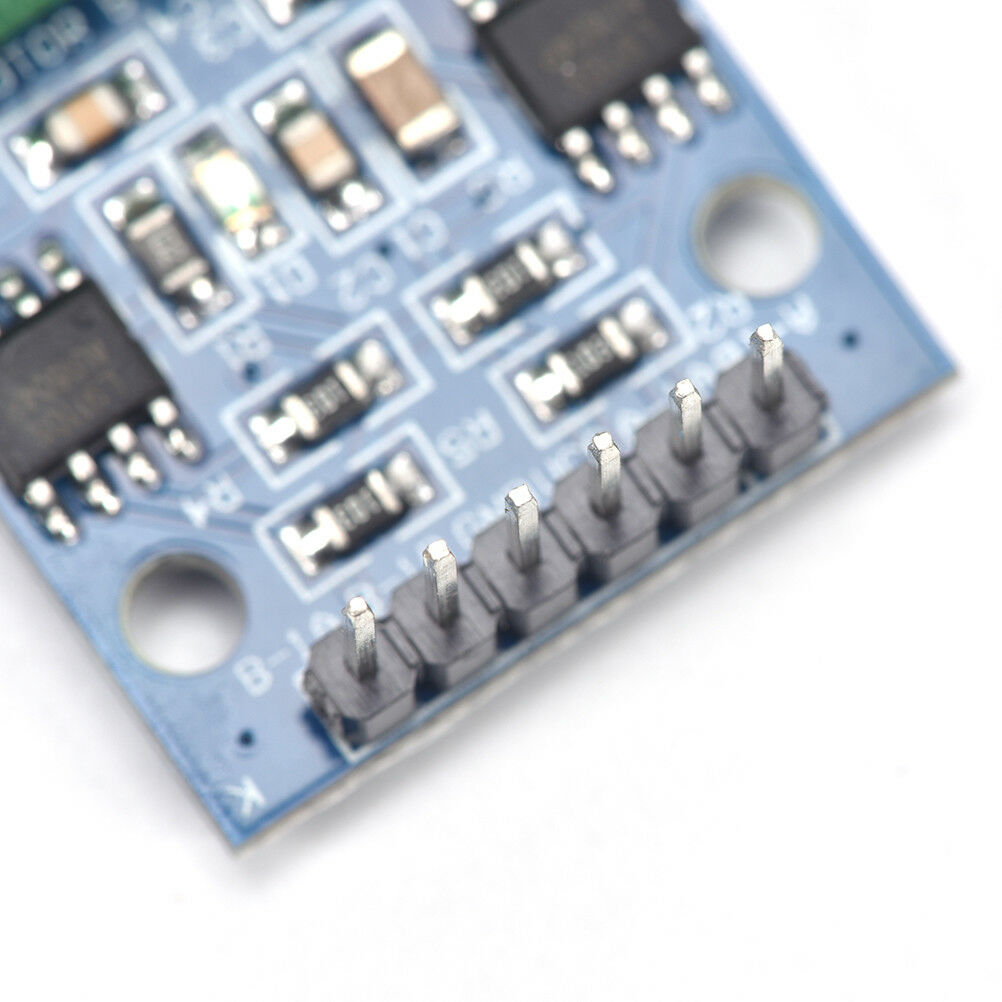

6P black bent pin description
External 2.5V-12V voltage VCC
External GND GND
IA1 external microcontroller IO port
IB1 external microcontroller IO port
IA2 external microcontroller IO port
IB2 external microcontroller IO port

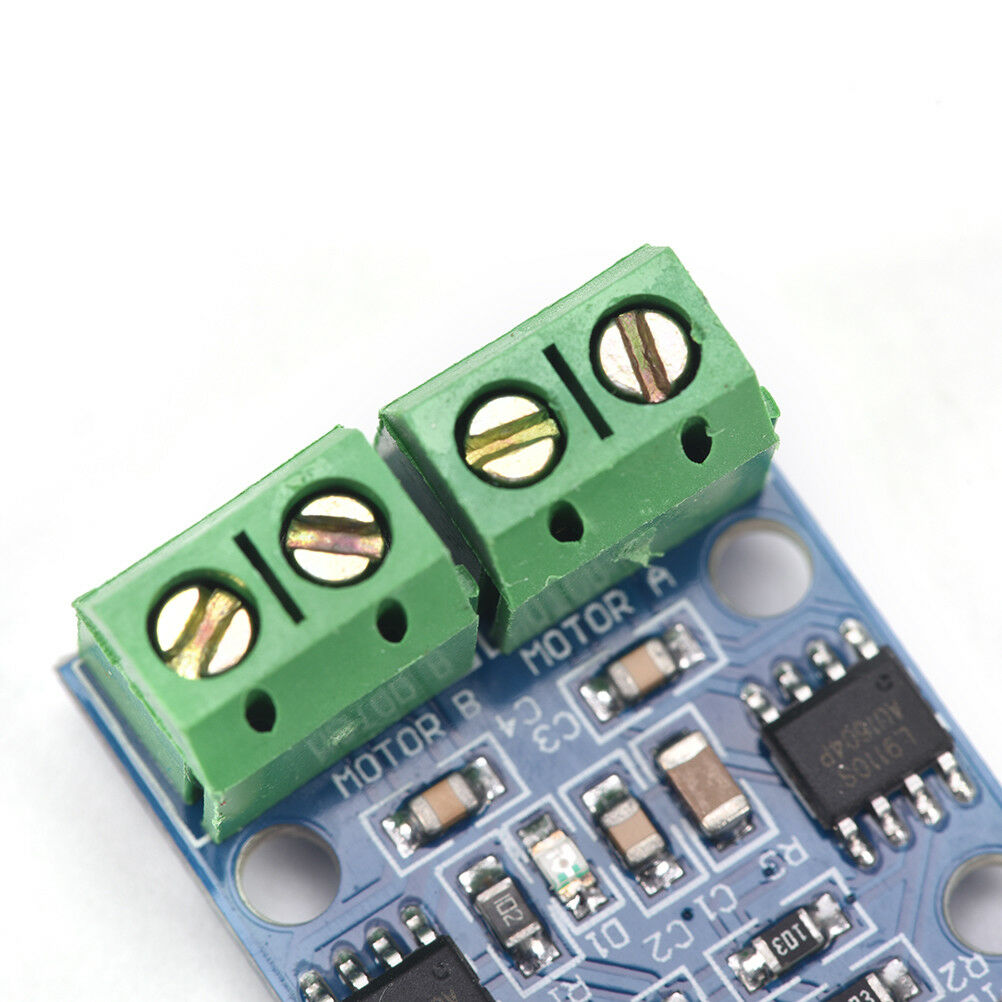

4P Green Terminal Description
OA1 OB1 DC 2 -pin connection , without direction
OA2 OB2 DC 2 -pin connection , without direction
Switched VCC, GND module power indicator light
IA1 input high , IA1 input low , [ OA1 OB1 ] motor is transferred ;
IA1 input low , IA1 input high , [ OA1 OB1 ] motor reversal ;
IA2 input high , IA2 input low , [ OA2 OB2 ] motor is transferred ;
IA2 input low , IA2 input high , [ OA2 OB2 ] motor reversal ;
Package Included:
1 x L9110S H Bridge DC Stepper Motor Dual Driver Board L9110 Board for Arduino
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
