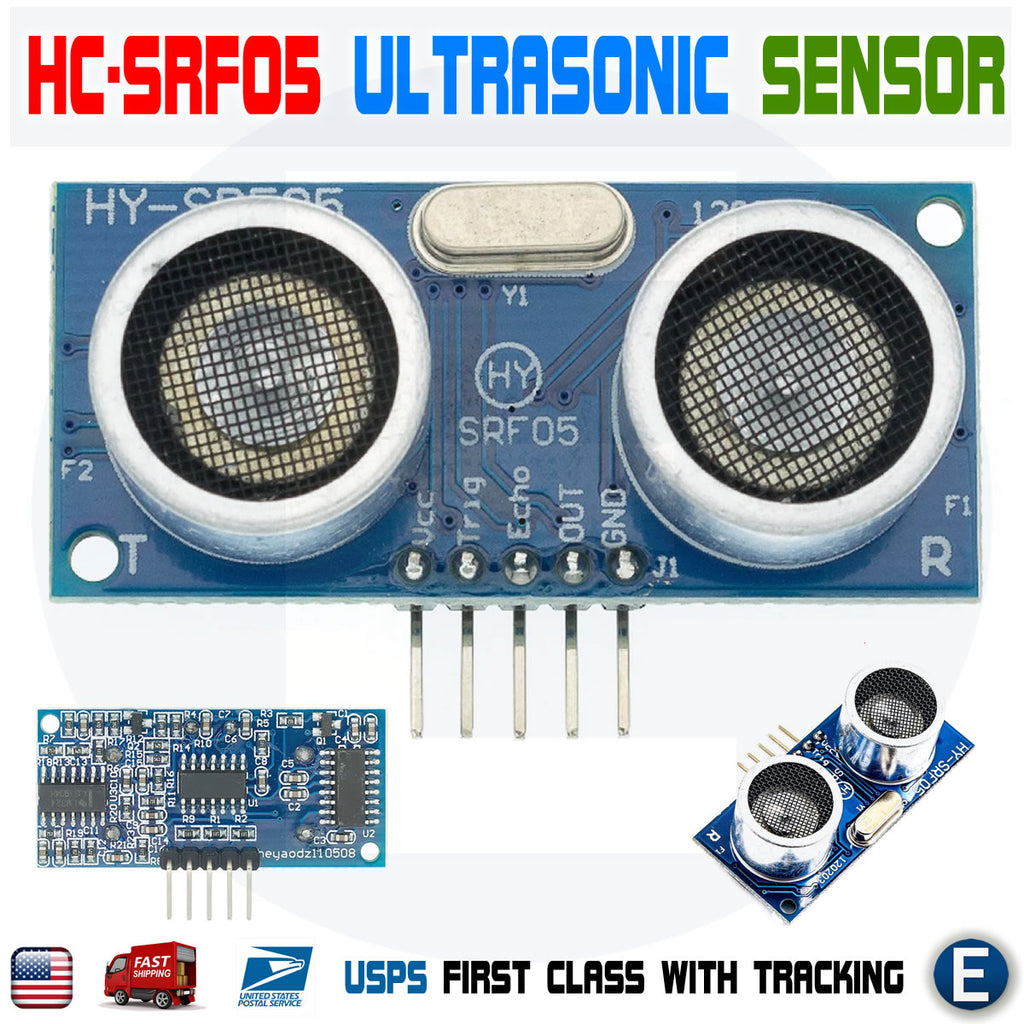

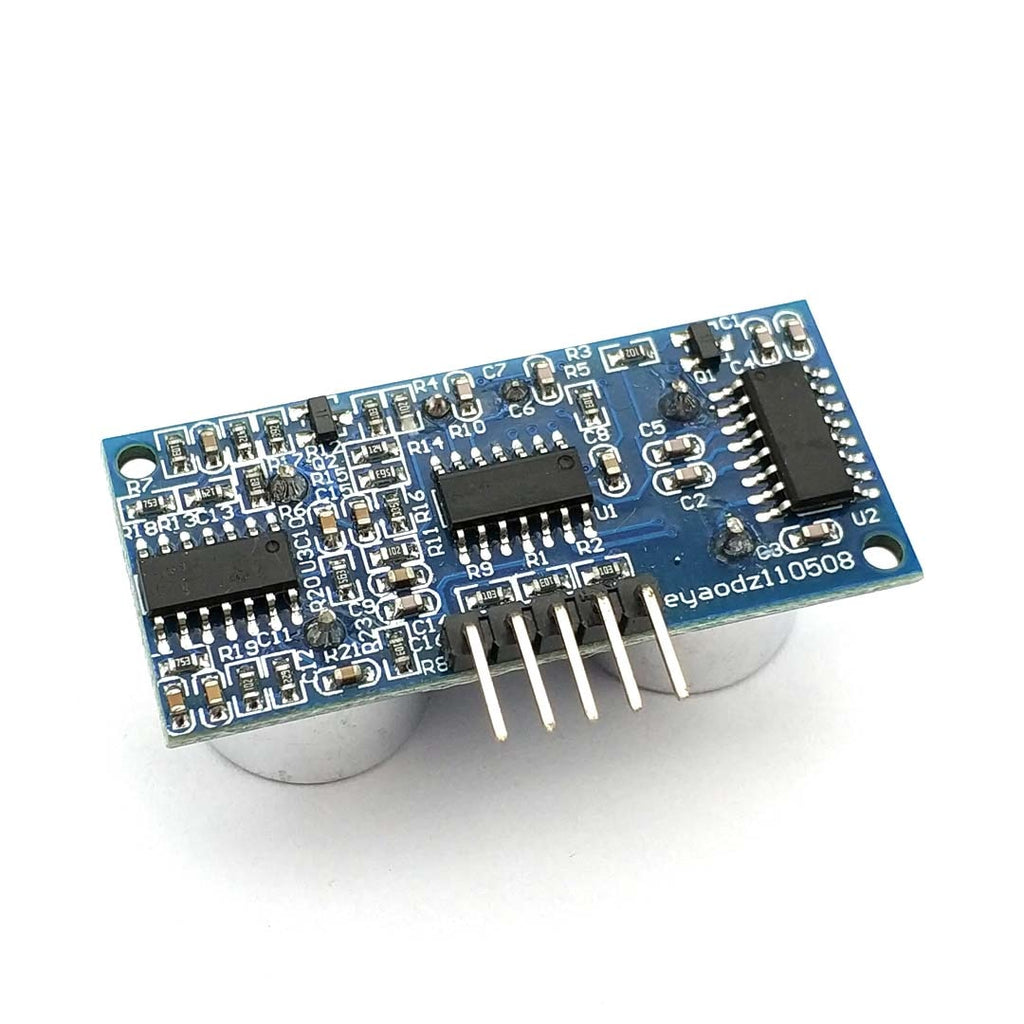

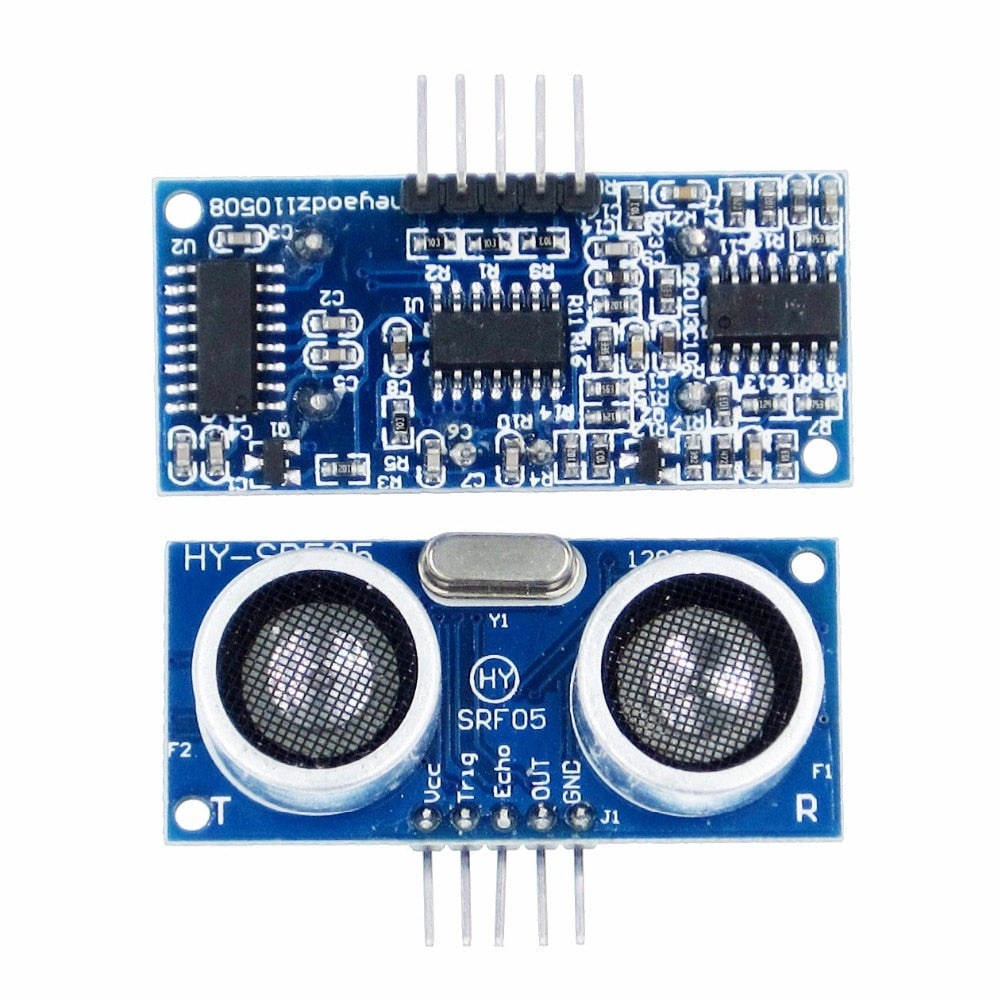

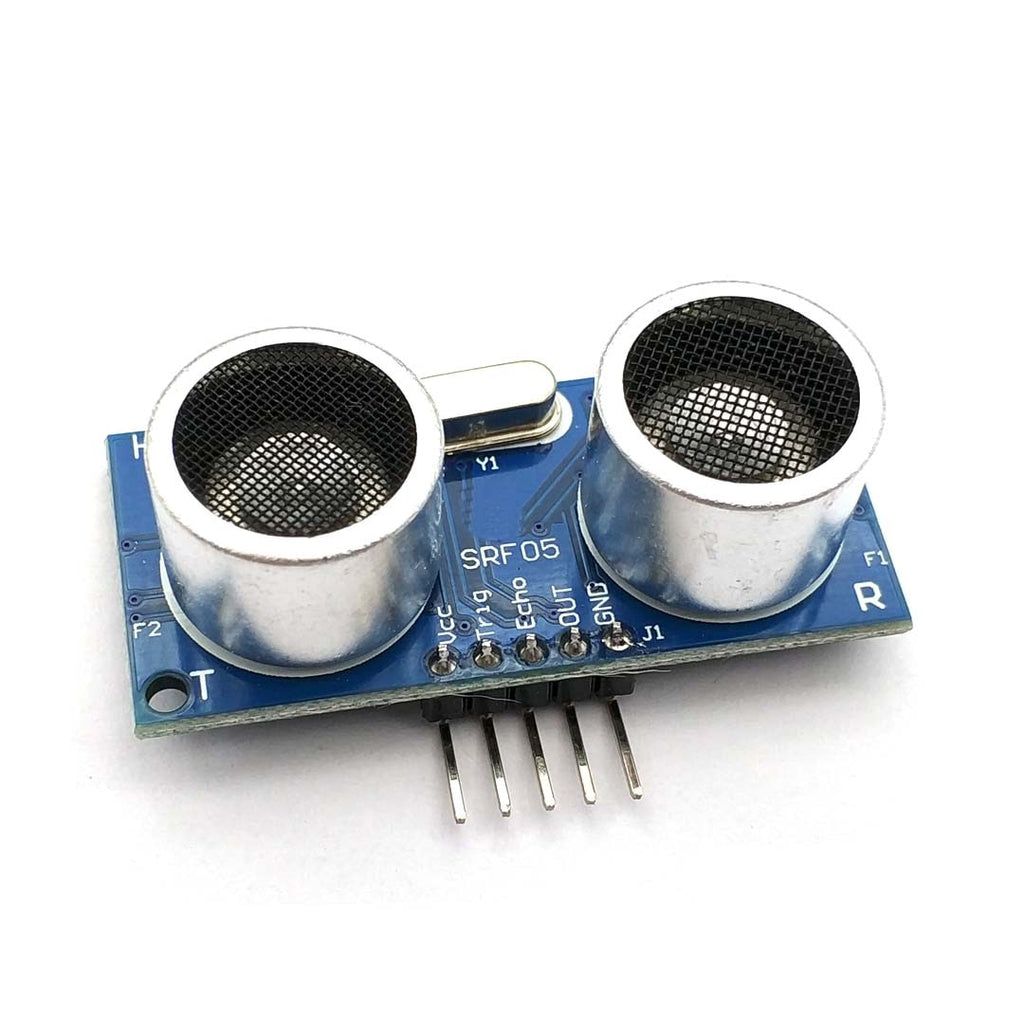

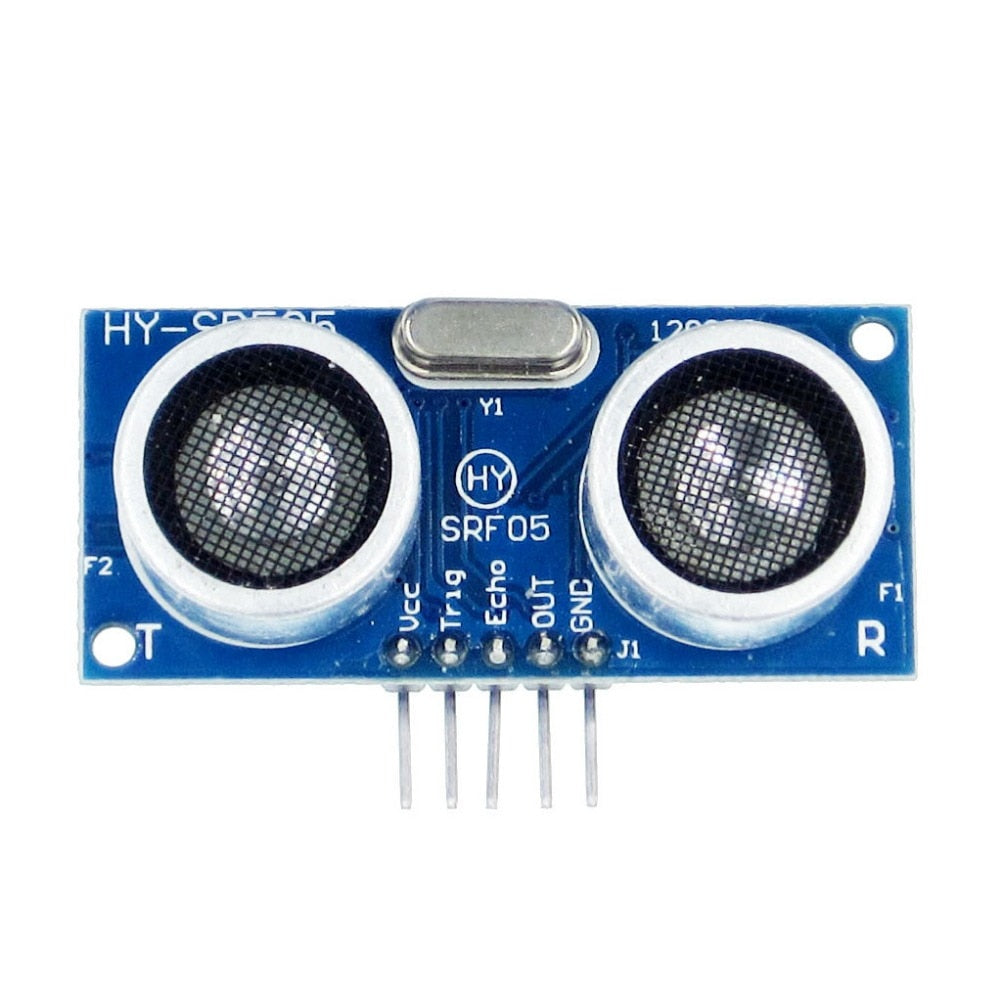

HY-SRF05 SRF05 Ultrasonic Distance Sensor Module Replace SR04 5 Pin for Arduino
In stock
Business & Industrial>Industrial Automation & Motion Controls>Sensors>Other Sensors
B-01-09-03
Ultrasonic sensors overcome many of the weaknesses of IR sensors - they provide distance measurement regardless of color and lighting of obstacles.
They also provide lower minimum distances and wi...
$4.89
customers are viewing this product
Ultrasonic sensors overcome many of the weaknesses of IR sensors - they provide distance measurement regardless of color and lighting of obstacles.
They also provide lower minimum distances and wider angles of detection to guarantee that obstacles are not missed by a narrow sensor beam.
This model is an upgrade from the lower precision HC-SR04. This has 5 pins and can be used in 1-pin trigger/echo or 2-pin.
Use these formulas to calculate distance:
Distance (in cm) = (elapsed time * (340 m/s)) / 50
Distance (in inches) = ((elapsed time * (340 m/s)) / 50) * 0.393701
Specifications
Trigger Pin Format: 10 uS digital pulse
Sound Frequency: 40 kHz
Echo Pin Output: 0-Vcc
Echo Pin Format: output is DIGITAL and directly proportional with range. See our conversion formula above.
Measurement Range: 2cm to ~4.5m
Measurement Resolution: 0.3cm
Measurement Angle: up to 15 deg
Measurement Rate: 40 Hz
Supply Voltage: 4.5V to 5.5V
Supply Current: 10 to 40mA
Connector: standard 5-pin male connector which can plug directly into breadboards.
Package Included:
1 x HY-SRF05 SRF05 Ultrasonic Distance Sensor Module Replace SR04 5 Pin for Arduino
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
