Features:
1. With LCD display, the current mode and parameters are clear at a glance, very clear and easy to use;
2. Support button trigger control, high and low level trigger, switch control, suitable for most occasions;
3. Wide voltage power supply (6-30V), use very build order;
4. Support UART data upload and parameter setting;
5. With comment pause function, with reverse connection protection, reverse connection will not burn;
6. The sleep mode is added. After enabling, the LCD backlight will be automatically turned off without any for about 5 minutes; any key to wake up;
7. Different OP, CL, LOP parameters can be set, and these parameters are saved independently of each other;
8. All set parameters are automatically saved after power-off;

Specification:
Working voltage: 6-30V power supply;

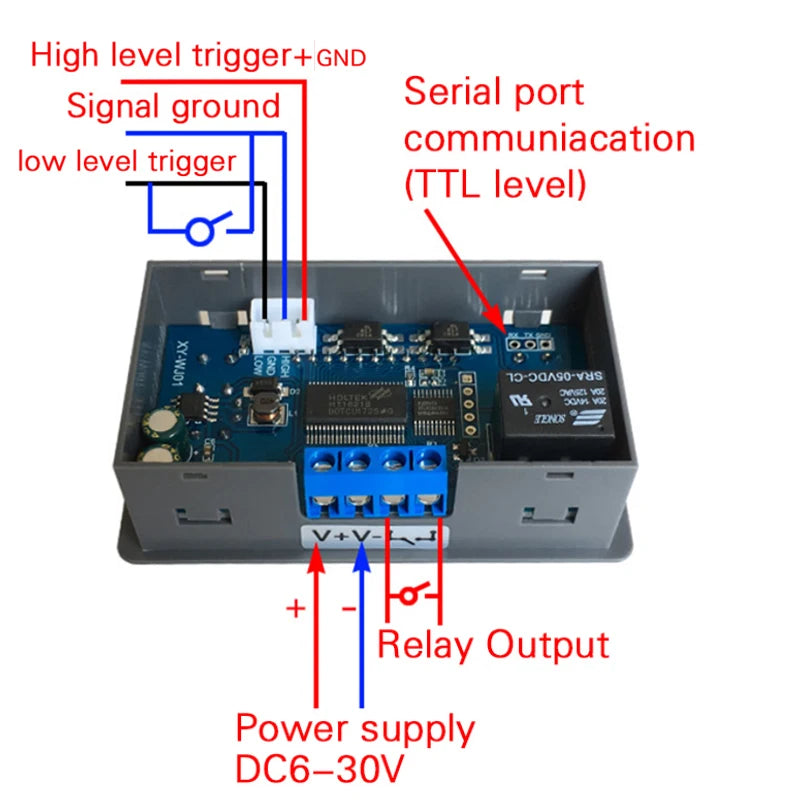

Trigger signal source: high level trigger (3.0V-24V),
Low level trigger (0.0V-0.2V),
Switch control (passive switch);
Output capacity: can control equipment within DC 30V 10A or AC 220V 5A;
Quiescent current: 15mA;
Working current: 50mA;
Service life: more than 100,000 times;
Working temperature: -40-85℃;
Product size: 7.1*3.9*2.5cm
Timing range: 0.01 second to 9999 minutes (peak value) continuously adjustable
With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set the parameter point and remember forever.
Timing range: 0.01 second -9999 minutes

This product lcd display, very clear, simple and easy to use, powerful, but please read user instructions carefully before using.

Product Highlights:

1. Display with LCD two columns, Can display parameters directly;
2. Trigger mode: high and low level,switch quantity.meet most of the needs.
3. Power supply: 6~30V.
4. Parameters can be modified via UART.
5. Stop button to provide emergency stop function.
6. 5 minutes without any operation into a low-power state. Any action wake up.
7. OP/CL/LOP params can be modified individually
8. All parameters are automatically saved by power off.

Working Mode Introduction(P1~P7)

P0: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal is invalid.

P1: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal triggers a new timer.

P2: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, signal trigger reset timer, relay disconnected and stop timing.

P3: After the signal is triggered, the relay disconnects the CL time, and then the relay conduction.

P4: After the signal is triggered, the relay conduction the OP time, and then the relay disconnects the CL time, and then loops the above action, gives the signal again in the loop, relays disconnect, stops the timer; and the number of cycles (LOP) can be set; End of cycle, keep relay disconnected;

P5: After the signal is triggered, the relay disconnects the CL time , and then the relay conduction the OP time, and then loops the above action, gives the signal again in the loop, relays conduction, stops the timer; and the number of cycles (LOP) can be set; End of cycle, keep relay conduction;

P6: No trigger signal after power-on, After the relay conduction OP time, the relay disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) can be set; End of cycle, keep relay disconnected;

P6: No trigger signal after power-on, After the relay disconnects the CL time, the relay conduction OP time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) can be set; End of cycle, keep relay conduction;

P8: Signal hold function: The signal is maintained, the timing is cleared, and the relay conduction; when the signal disappears, the relay disconnects after the timing OP; during the timing, there is another signal and the timing is cleared;

P9: Signal hold function: The signal is maintained, the timing is cleared, and the relay disconnected; when the signal disappears, the relay conduction after the timing CL; during the timing, there is another signal and the timing is cleared;

(P0~P7) mode, short press the pause button, Start timing if the system is not timed; If the system is already timed, the system pauses the timer, the relay disconnected, flashing "out" to indicate a reminder;

P8/P9 mode, The pause button as a trigger signal in the Run interface, Short / Long press fail;

parameter settings:
1. Enter the setting interface through the landing setting button;
2. set the working mode, the working mode flashes to remind, short press the increase/decrease key to set the working mode;
3. Short press the setting button, select the working mode, and enter the parameter setting;
4. In the parameter setting interface, short press the setting button to switch the parameter to be modified, short press/long press the increase/decrease button to modify;
(Note: Short press the setting button is invalid in P0-P3/P8/P9 mode);
5. In the 0P/CL parameter modification interface, short press the pause button to switch the timing unit (1S/0.1S/0.01S/1min);
6. After all parameter settings are completed, press and hold the setting button to save the parameter settings and exit the setting interface.

Timing range:
How to choose the timing range:
In the OP/CL parameter modification interface, short press the pause button to select the timing range.

In the OP/CL parameter modification interface, press the pause button shortly to select the timing range.
XXXX Timing range:1sec~9999sec
XXX.X Timing range:0.1sec~999.9sec
XX.XX Timing range:0.01sec~99.99sec
X.X.X.X Timing range:1min~999.9min
For example, if you want to set the OP to 3.2 seconds, move the decimal point to ten digits. LCD display 003.2
Parameter Description: OP on-time, CL off time, LOP cycle times (1 - 9999 times, "----" represents an infinite number of cycles)
l Parameter Settings:
a) Press and hold the SET key to enter the setting interface;
b) First set the working mode, work mode flashes reminder, set the working mode by pressing the UP / DOWN keys;
c) Short press the SET button to select the working mode and enter the system parameter settings.
d) In the system parameter setting interface, press SET key to switch the system parameters to be modified, and press / long press UP/DOWN key to modify. (Note: Short press SET in P0~P3/ P8/P9 mode is invalid);
e) In the OP/CL parameter modification interface, short press STOP to switch the timer unit (1s/0.1s/0.01s/1min);
f) After all parameters are set, press and hold the SET button for more than 2 seconds to release the hand, save the parameter settings and exit the setting interface

Package Included:
1 x Digital Time Delay Relay Module Control Switch Timing Trigger DC12V 12V LCD
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
