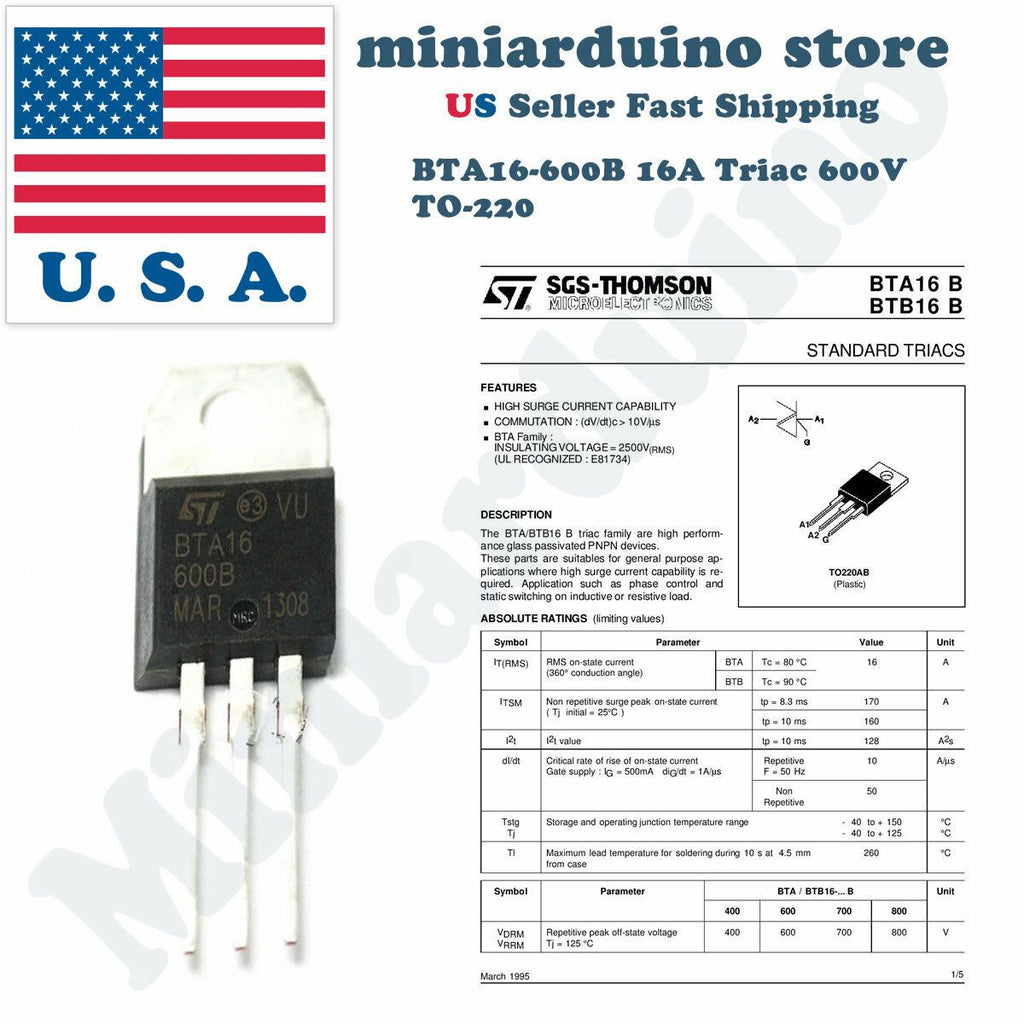

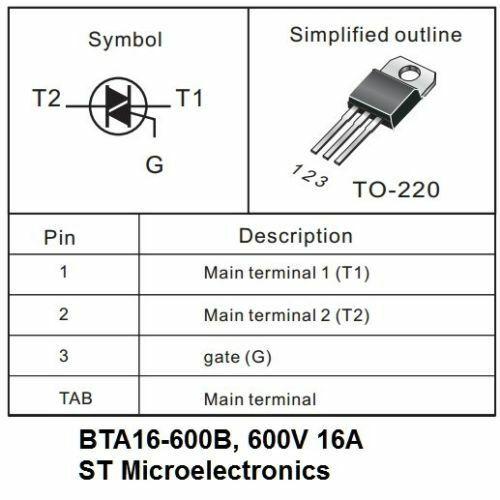

5pcs Triac BTA16-600B 600V 16A BTA16 + 5pcs DB3 Bidirectional Trigger Diode Diac

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Thyristors & SCRs
Product Category: Triacs  Manufacturer: STMicroelectronics  RoHS: RoHS Compliant Details  Series: BTA16  Non Repetitive On-State Current: 168 A  Rated Repetitive Off-State Voltage VDRM: 600 V  Off...
$5.63
  customers are viewing this product

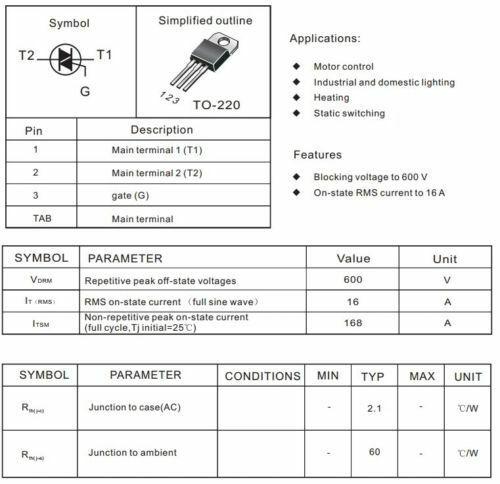

Product Category: Triacs
Manufacturer: STMicroelectronics
RoHS: RoHS Compliant Details
Series: BTA16
Non Repetitive On-State Current: 168 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
On-State Voltage: 1.55 V
Holding Current Ih Max: 50 mA
Gate Trigger Voltage - Vgt: 1.3 V
Gate Trigger Current - Igt: 100 mA
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Packaging: Tube
Brand: STMicroelectronics
Current Rating: 16 A
Minimum Operating Temperature: - 40 C

Package Included:

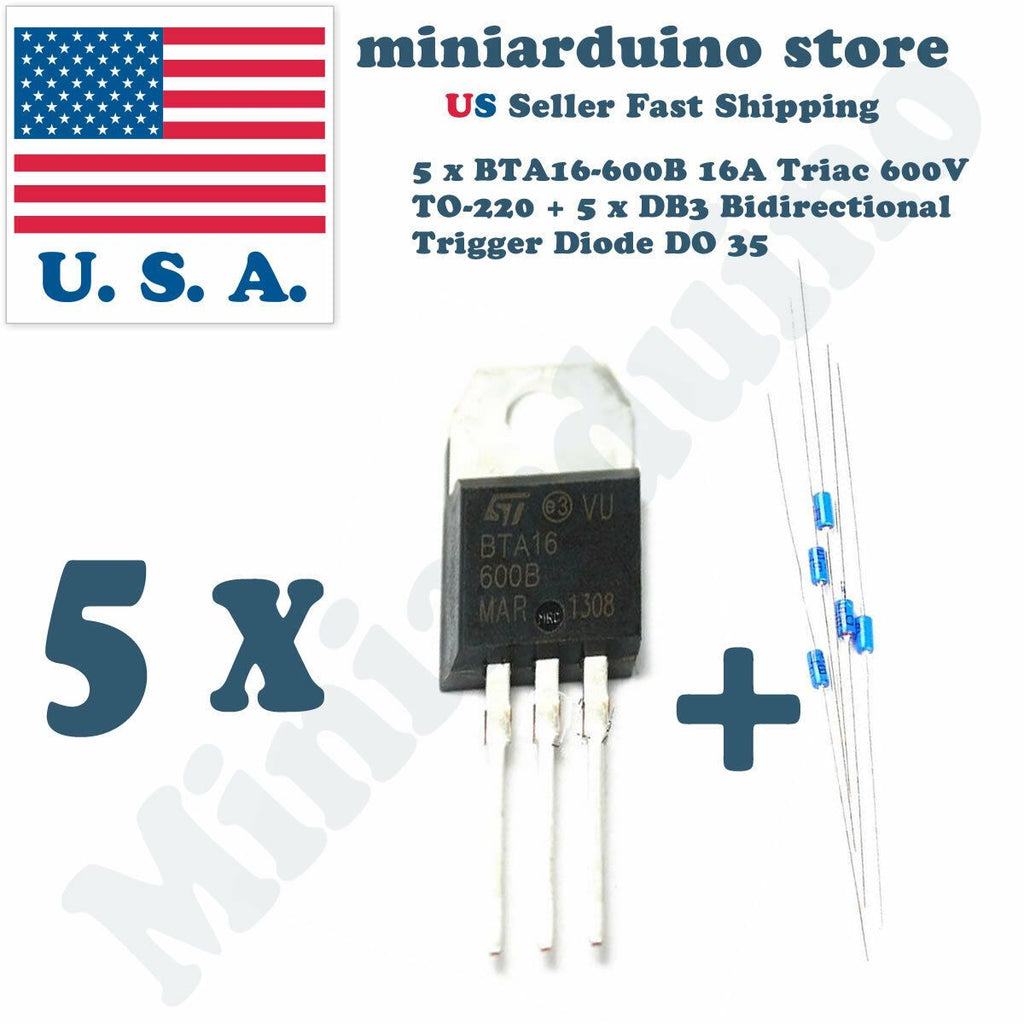

5 x BTA16-600B TRIAC 16A 600 VOLT
5 x

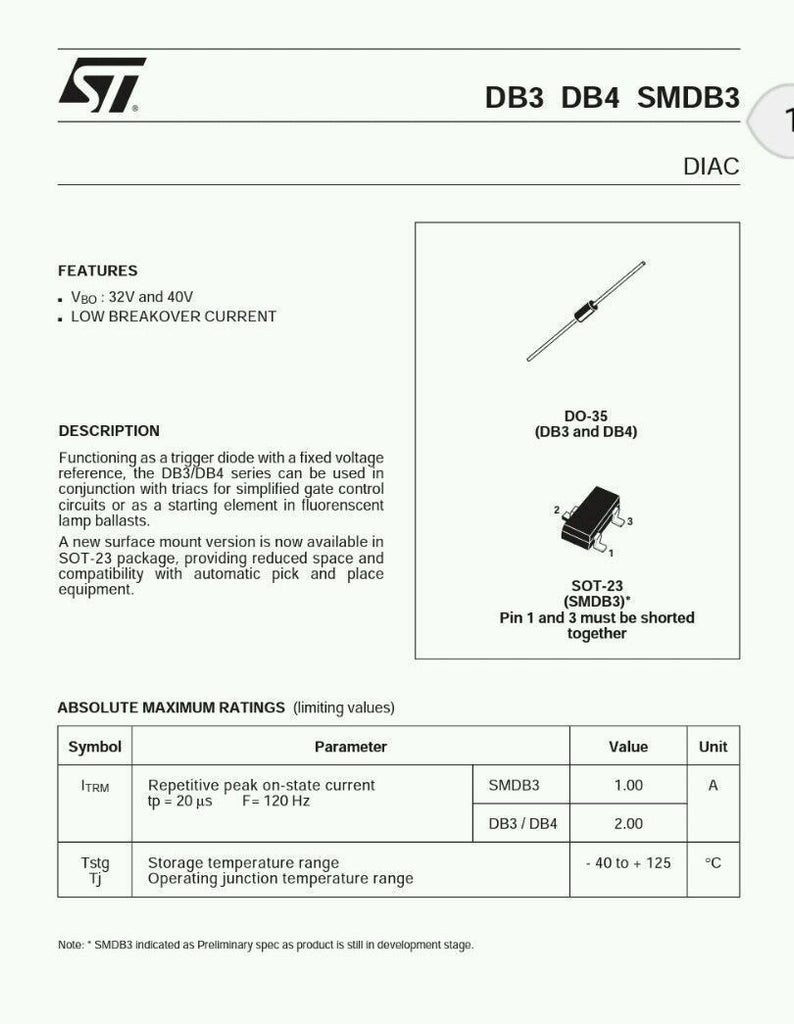

DB3 Bidirectional Trigger Diode DO 35
