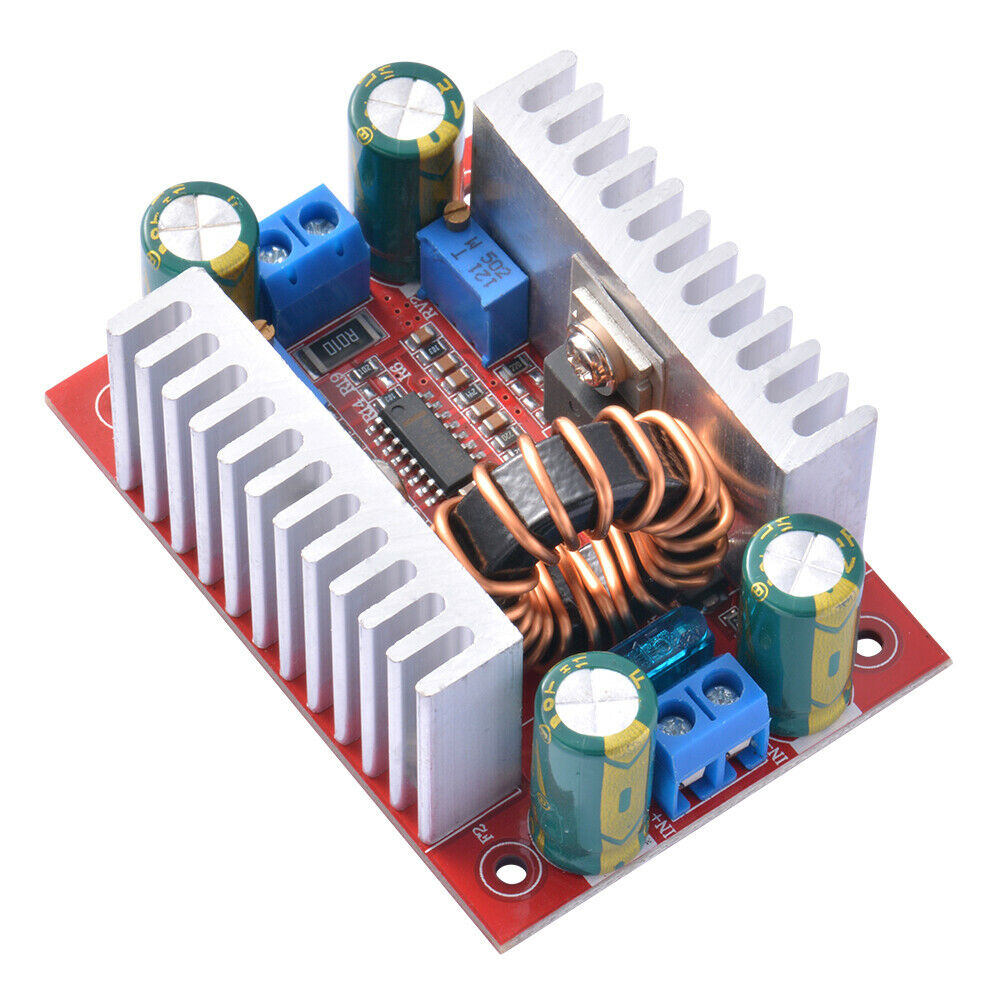

400W DC-DC Step Up Boost Buck Voltage Converter Power Supply Module 15A
Features:
This is a great 400W DC to DC step-up power supply module for electric equipment, digital products, laptop, etc.
Input and output are designed with screw terminals for convenient wire con...
$12.63
customers are viewing this product
Features:
This is a great 400W DC to DC step-up power supply module for electric equipment, digital products, laptop, etc.
Input and output are designed with screw terminals for convenient wire connection and disconnection.
High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.

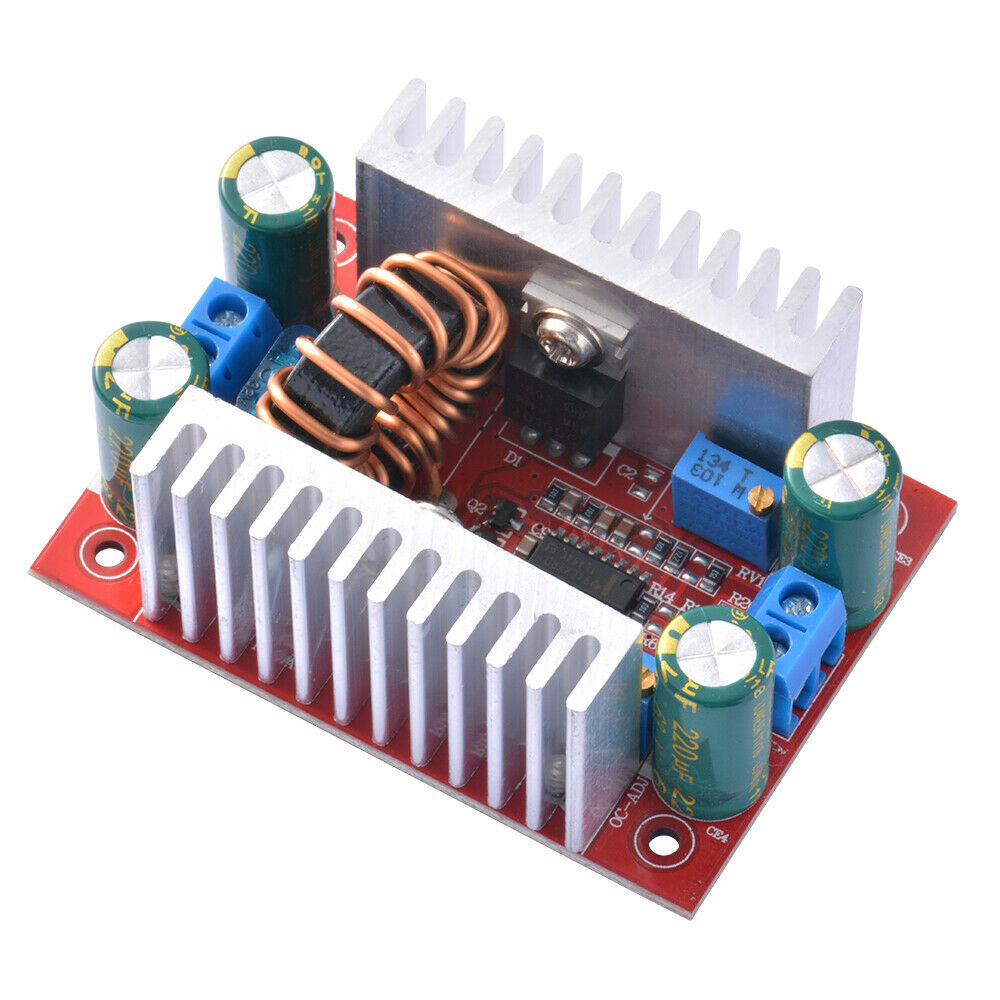

There are 2 heat sinks that would ensure a better heat dissipation.
It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
Specification:
Type: 400W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC8.5V-50V
Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-60V continuously adjustable
Constant] range: 0.2-12A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: yes
Input reverse polarity protection: no
Installation: 4 2.55mm screw holes
Connection method: Connection Output

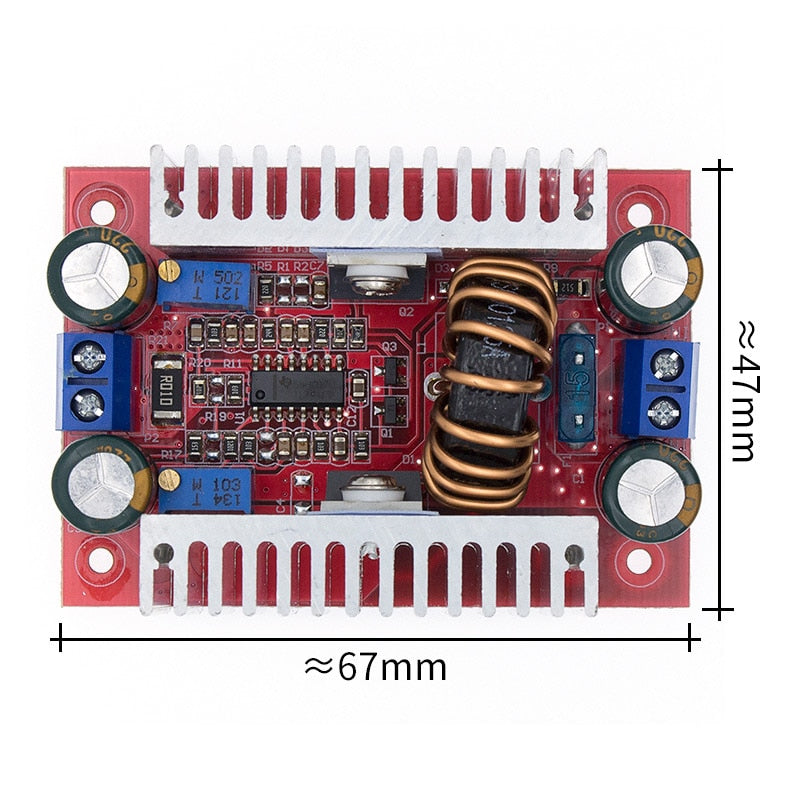

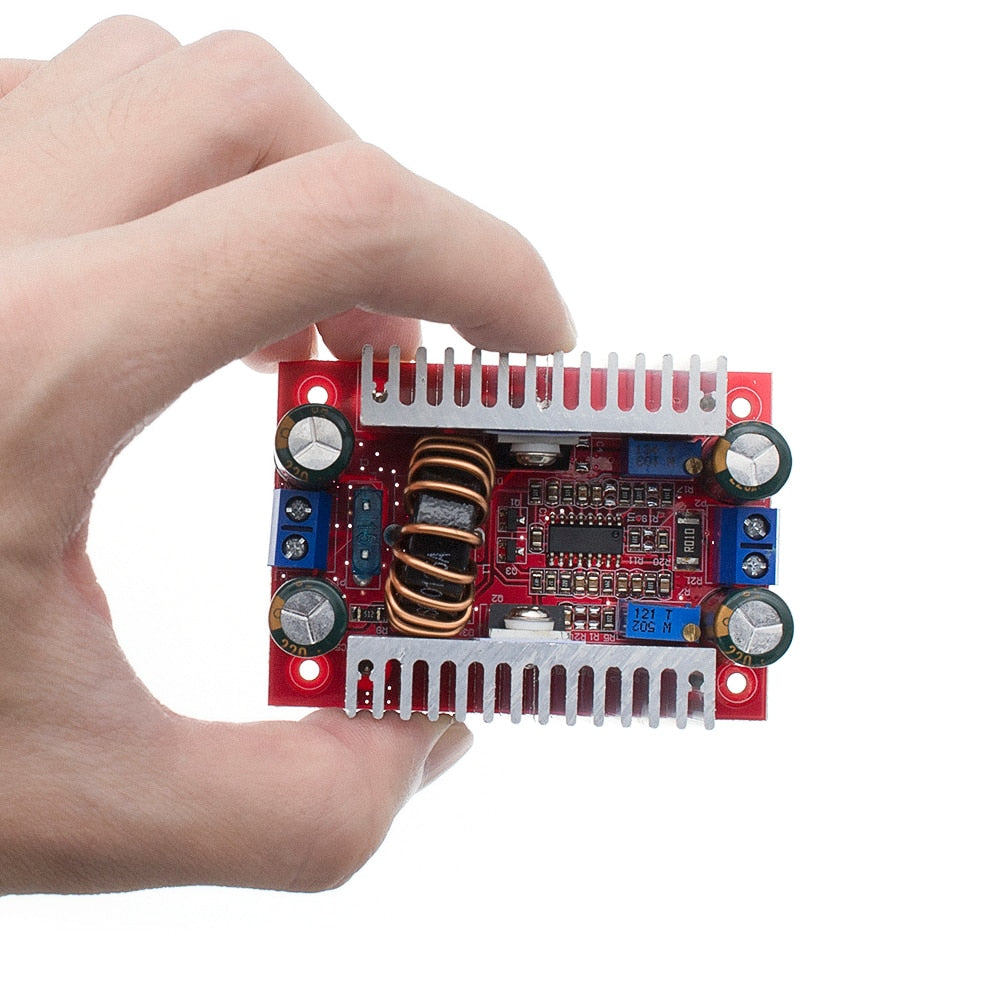

Module size: 67mm X48mm X 28mm
8.5-50V to 10-60V Voltage
Applications:
1. Be used as a regulated power supply.
2. Power your electronic device and set the output value according to your system voltage.
3. Power your laptop, PDA or a variety of digital products as a car power supply.
4. Be used as a high-power notebook mobile power with a large-capacity 12V lithium battery pack.
5. Solar panel voltage regulator.
6. Charge the battery, lithium battery, etc.
7. Drive high-power LED lights.

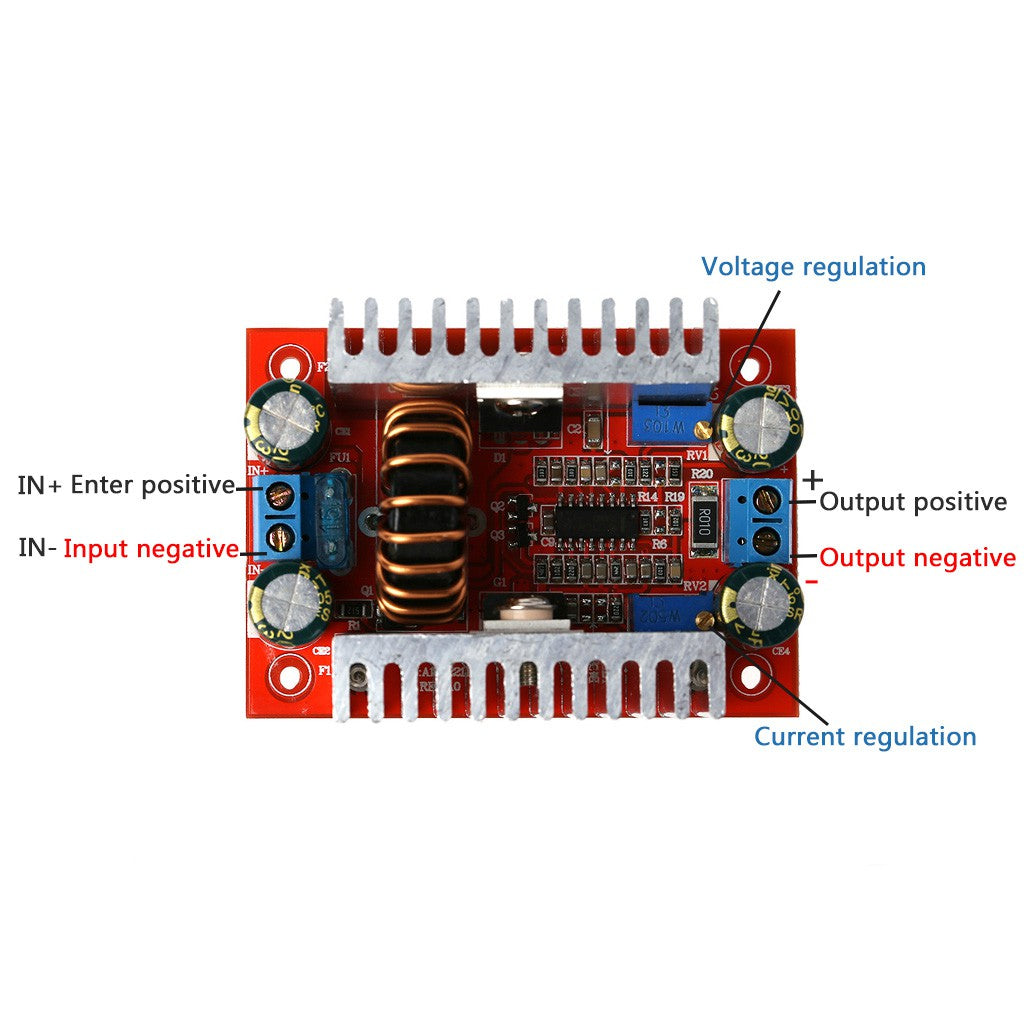

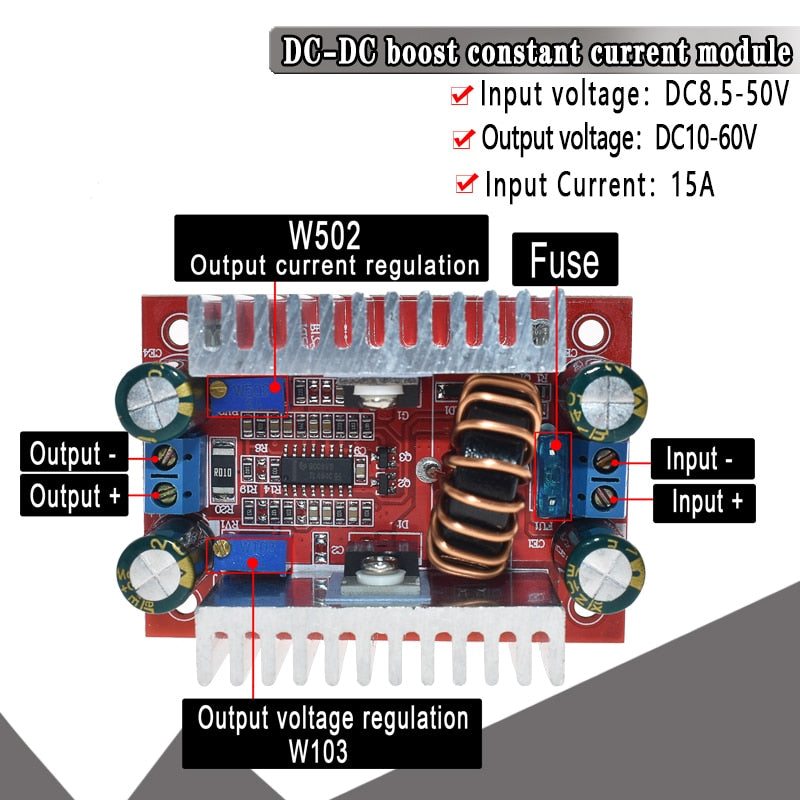

Output Voltage/Current Adjustment:

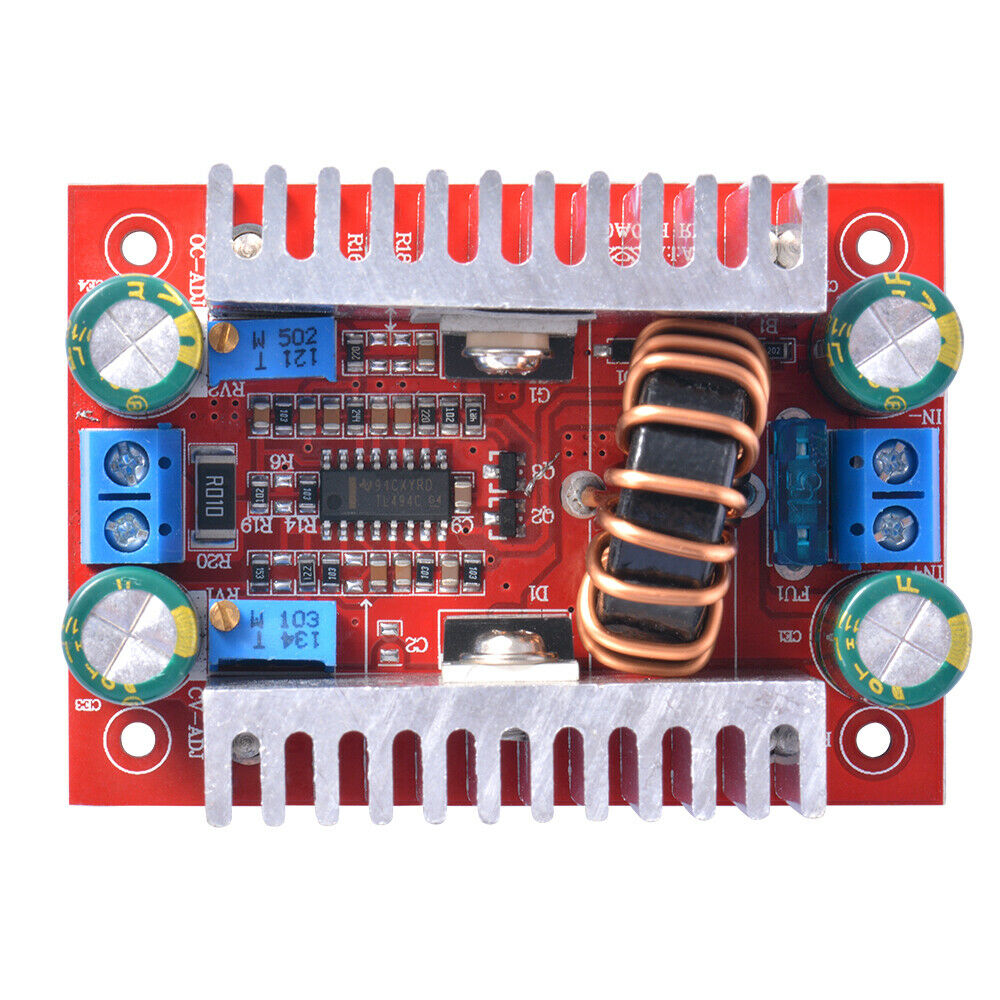

1. Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
2. Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery charging, connect to output after battery is fully discharged. Because if the more energy is left in battery, the less charging current will be.
Package included:
1 x 400W DC-DC Step Up Boost Buck Voltage Converter Power Supply Module 15A
Instructions are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
