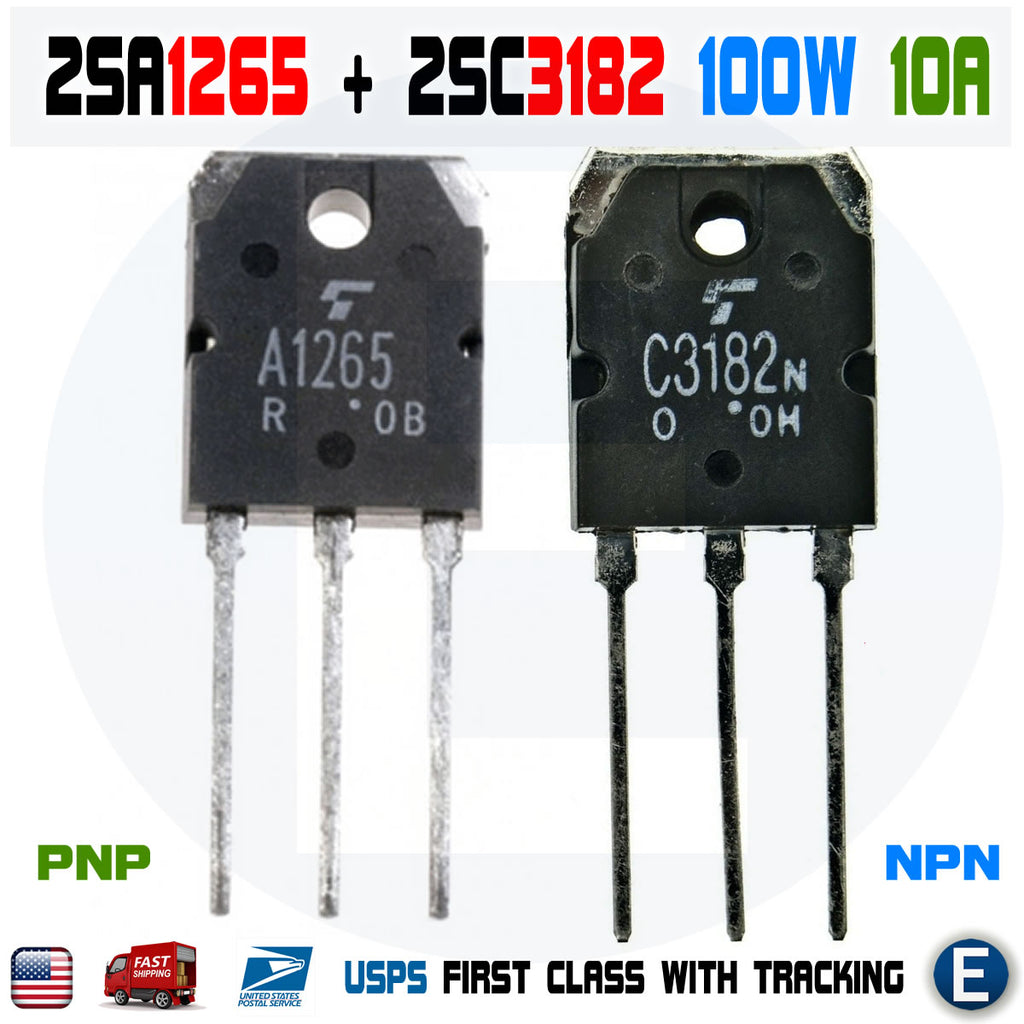

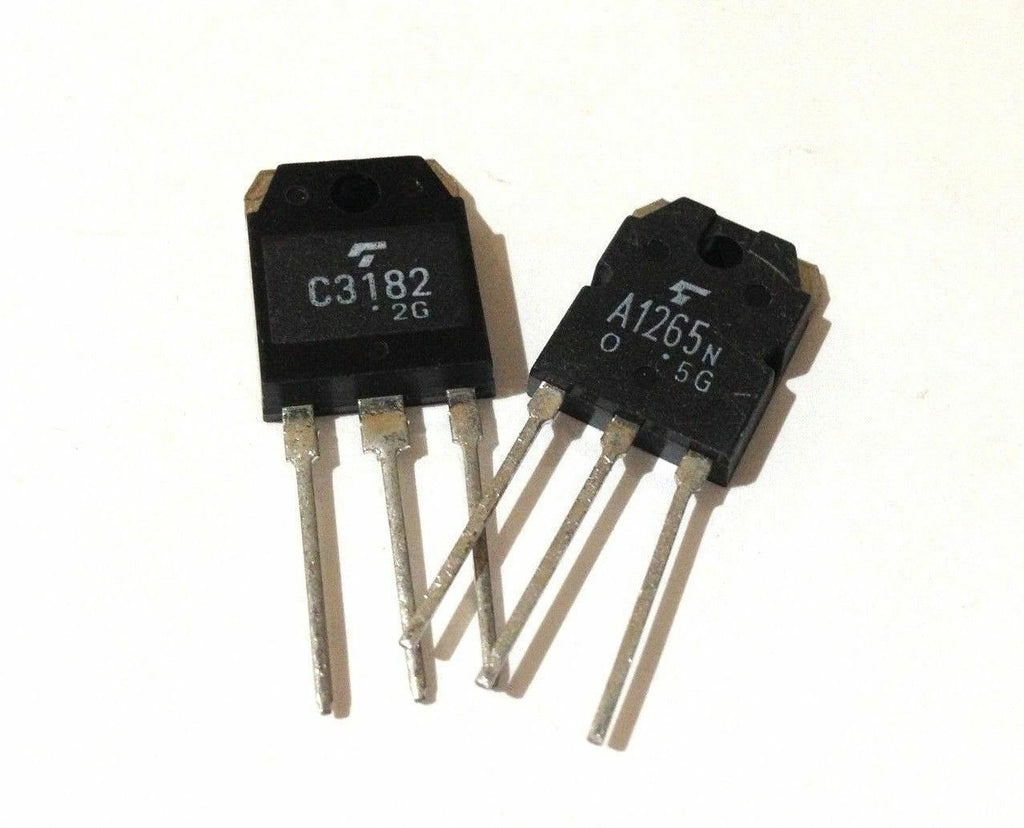

2SA1265N + 2SC3182 Toshiba Transistor PNP NPN 140V 10A 100W A1265N C3182N TO-3P

In stock
Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Transistors
Toshiba
2SA1265N-2SC3182-T-2
2SC3182 Material of Transistor: Si Polarity: NPN Maximum Collector Power Dissipation (Pc): 100 W Maximum Collector-Base Voltage 'Vcb': 140 V Maximum Collector-Emitter Voltage 'Vce': 140 V Maximum E...
$4.63
$4.63
  customers are viewing this product

2SC3182
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage 'Vcb': 140 V
Maximum Collector-Emitter Voltage 'Vce': 140 V
Maximum Emitter-Base Voltage 'Veb': 5 V
Maximum Collector Current 'Ic max': 10 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 220 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: TO-3P

2SA1265
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage 'Vcb': 140 V
Maximum Collector-Emitter Voltage 'Vce': 140 V
Maximum Emitter-Base Voltage 'Veb': 5 V
Maximum Collector Current 'Ic max': 10 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 480 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: TO-3P

Package Included:
1 x Pair 2SA1265N + 2SC3182 Toshiba Transistor PNP NPN 140V 10A 100W A1265N C3182N TO-3P
