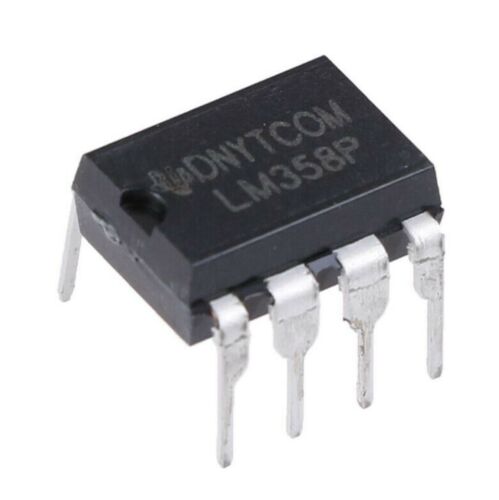

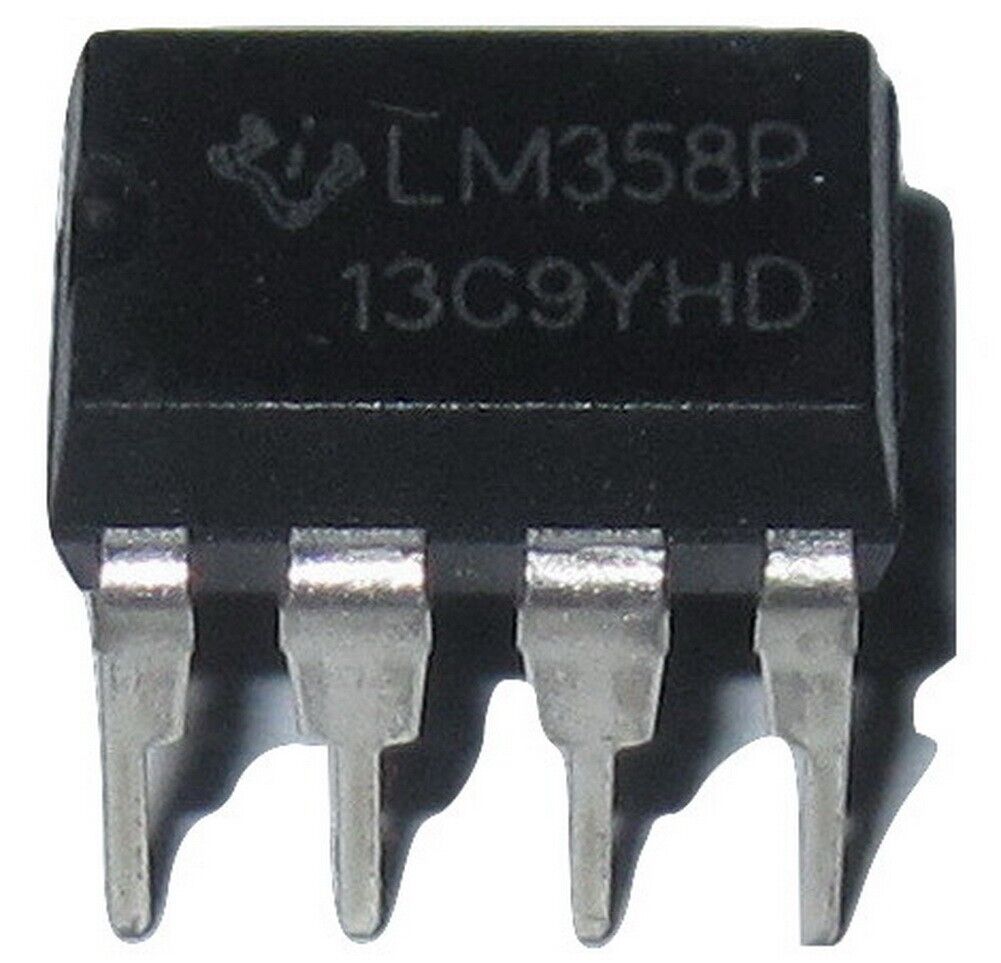

10pc LM358 LM358N LM358P Dual Op ICs Amp DIP-8 Low Power Operation Amplifier

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Integrated Circuits (ICs):Other Integrated Circuits
LM358-10
Description:   The LM358 is an easy to use dual-channel op amp. The LM158/358 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were de...
$3.98
  customers are viewing this product
Description:

The LM358 is an easy to use dual-channel op amp. The LM158/358 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.

Specifications:

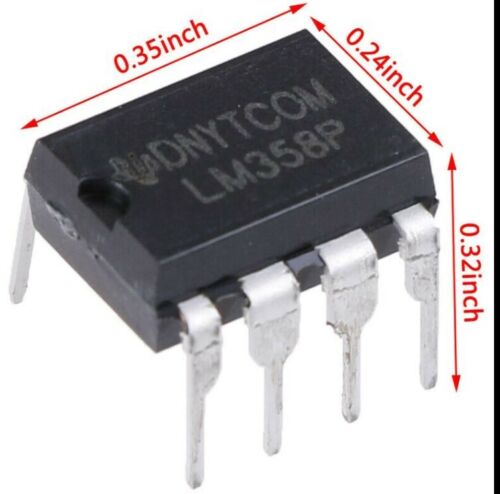

Amplifier Case Style: DIP
Bandwidth: 1MHz
MSL: MSL 1 - Unlimited
Number of Amplifiers: 2
Number of Pins: 8
Op Amp Type: Low Power
Operating Temperature Max: 70°C
Operating Temperature Min: 0°C
Packaging: Each Slew Rate: 0.1V/µs
Supply Voltage Range: 3V to 32V

Package Included:

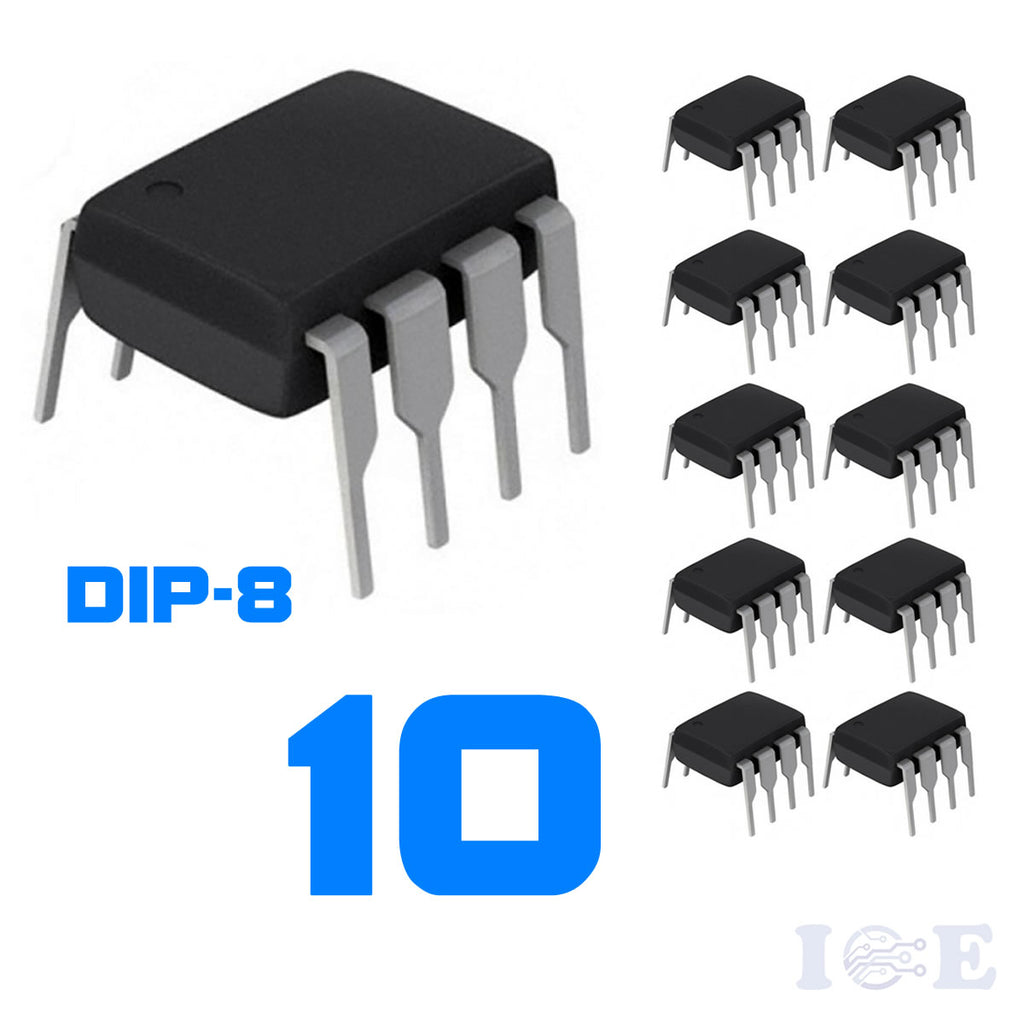

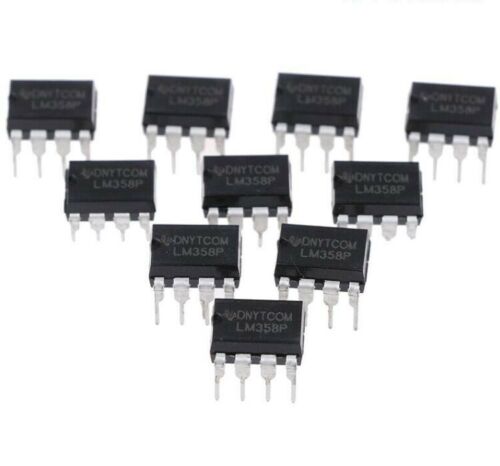

10 x LM358p Dual Operational amplifier DIP-8
