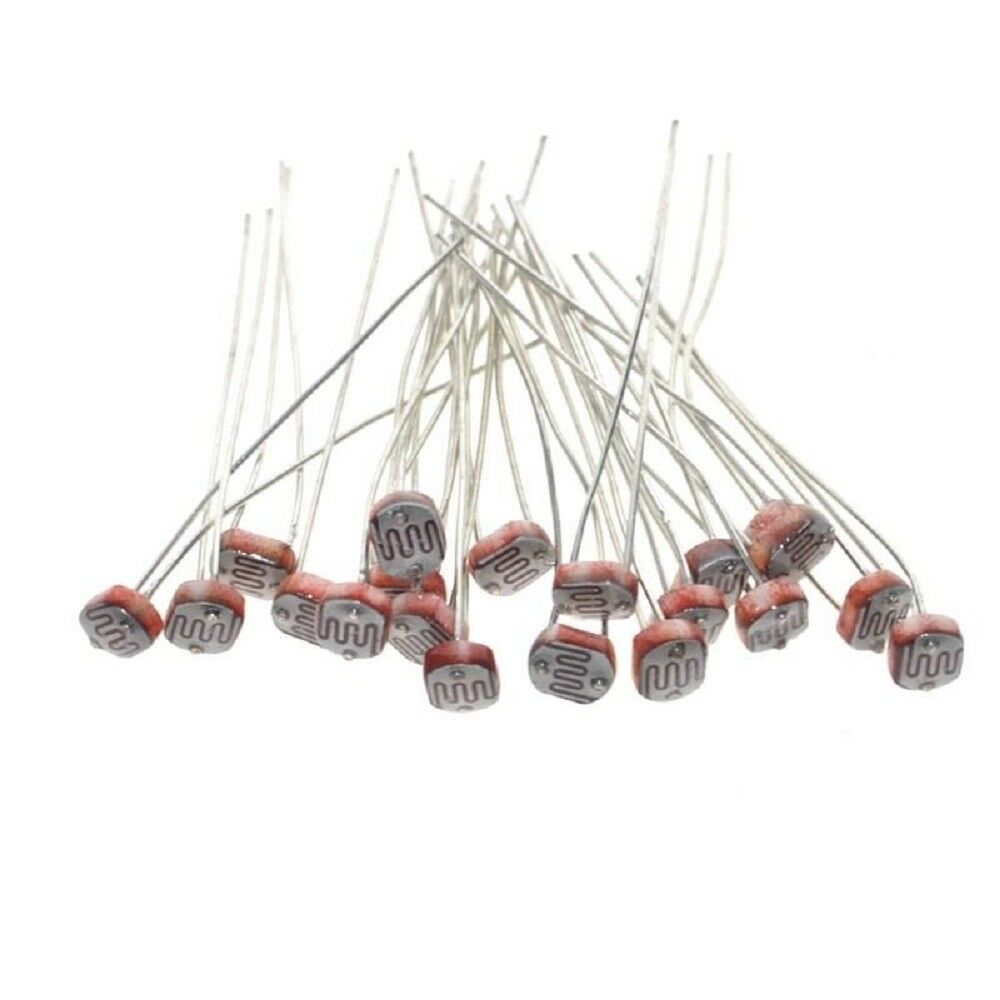

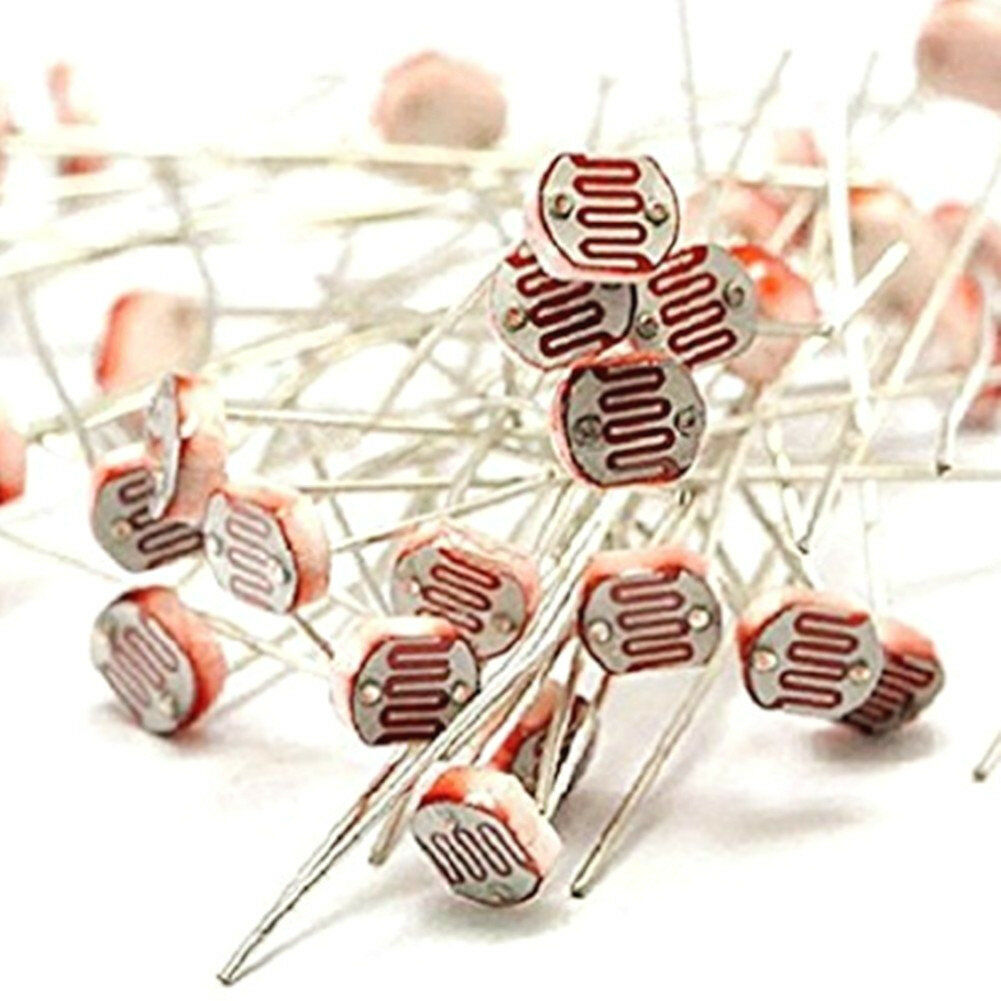

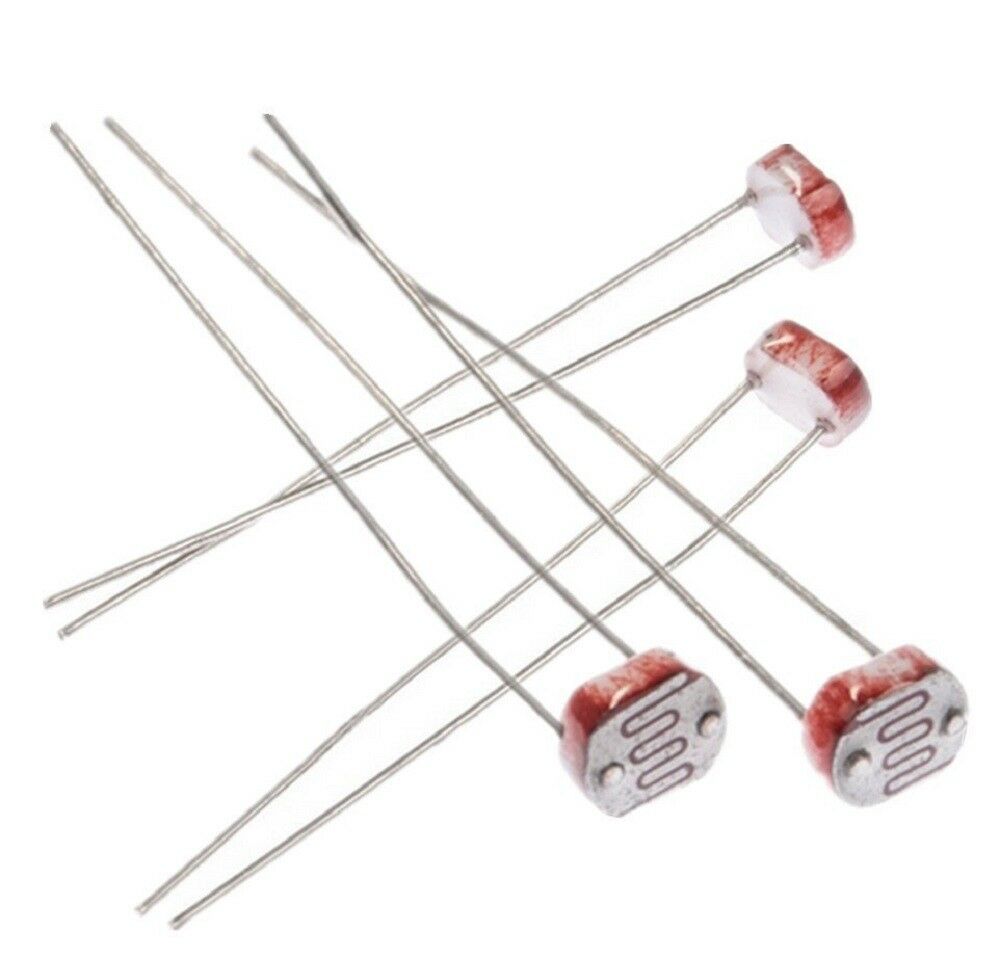

100PCS 5516 5MM 5K-10K Photoresistor Light-Dependent Resistor Sensor GL5516
100PCS 5516 5MM 5K-10K Photoresistor Light-Dependent Resistor Sensor GL5516Light-dependent resistors or photoresistors are a staple of electronics. If you need a way to sense the level of ambient l...
$8.63
customers are viewing this product
100PCS 5516 5MM 5K-10K Photoresistor Light-Dependent Resistor Sensor GL5516
Light-dependent resistors or photoresistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it. As the light on the sensor increases then the resistance across the two leads decreases. If you have a rear view mirror that darkens when its hit buy headlights you can check in the little hole on face of the mirror and you'll see those wavy lines of photoresistor!
Condition: NEW, 100% Good Quality
Maximum Voltage: 150 Volt DC
The Max power consumption(mw):100
Operating Temperature: -30 ~ +70 deg C
Spectral Peak: 540nm
Light Resistance （10Lux）（KΩ）: 5-10
Dark Resistance: （MΩ）:0.5
100λ10：0.5
Response time: 30ms (Rise), 30ms (Down)
Resistance Illumination: 2
Package Included:
100PCS 5516 5MM 5K-10K Photoresistor Light-Dependent Resistor Sensor GL5516
