0.96" I2C IIC 128X64 OLED LCD LED Blue Color SSD1306 + Transparent Case Arduino
In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:LEDs, LCDs & Display Modules:LCD Display Modules
A-02-10-07+A-02-08-05
Transparent Shell Acrylic Case For 128X64 0.96 Inch OLED
Material: Acrylic sheet
Color: Transparent (Please tear the protective film before use)
Uses: For 0.96 Inch OLED LCD LED display module brac...
$6.98
customers are viewing this product

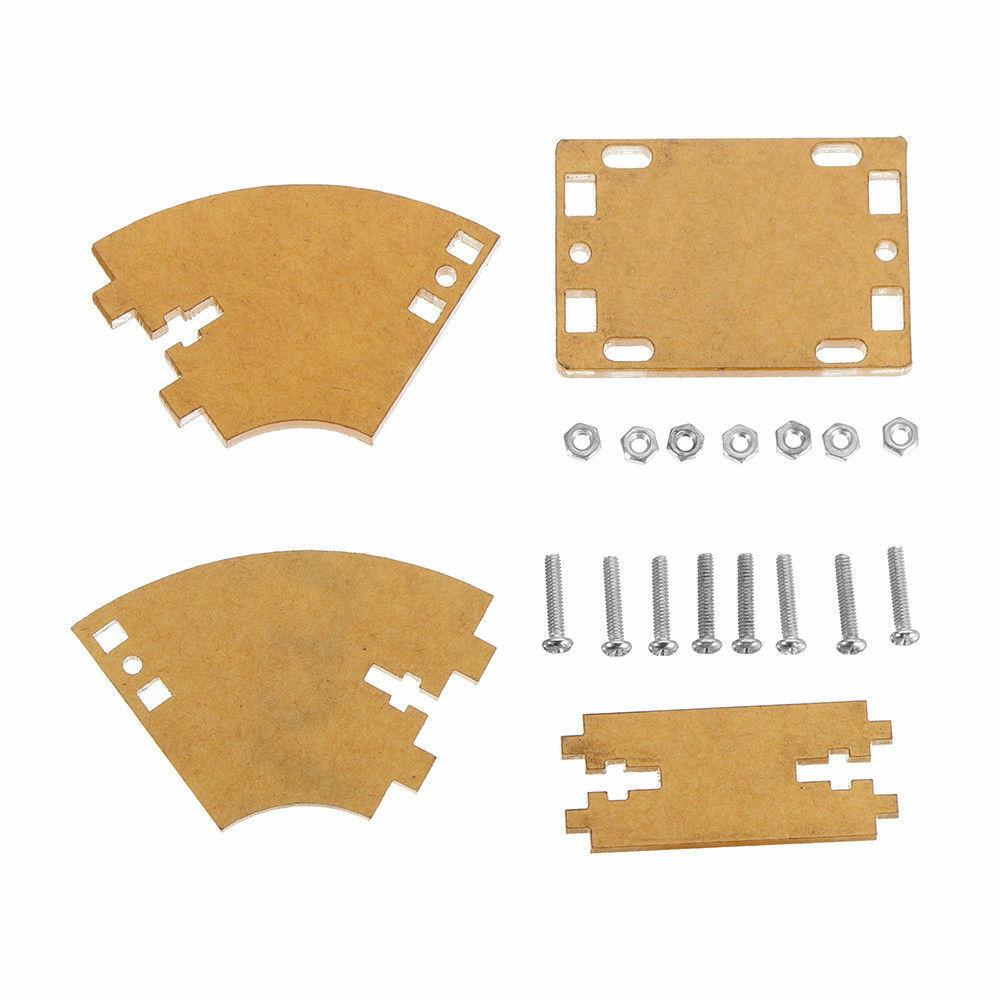

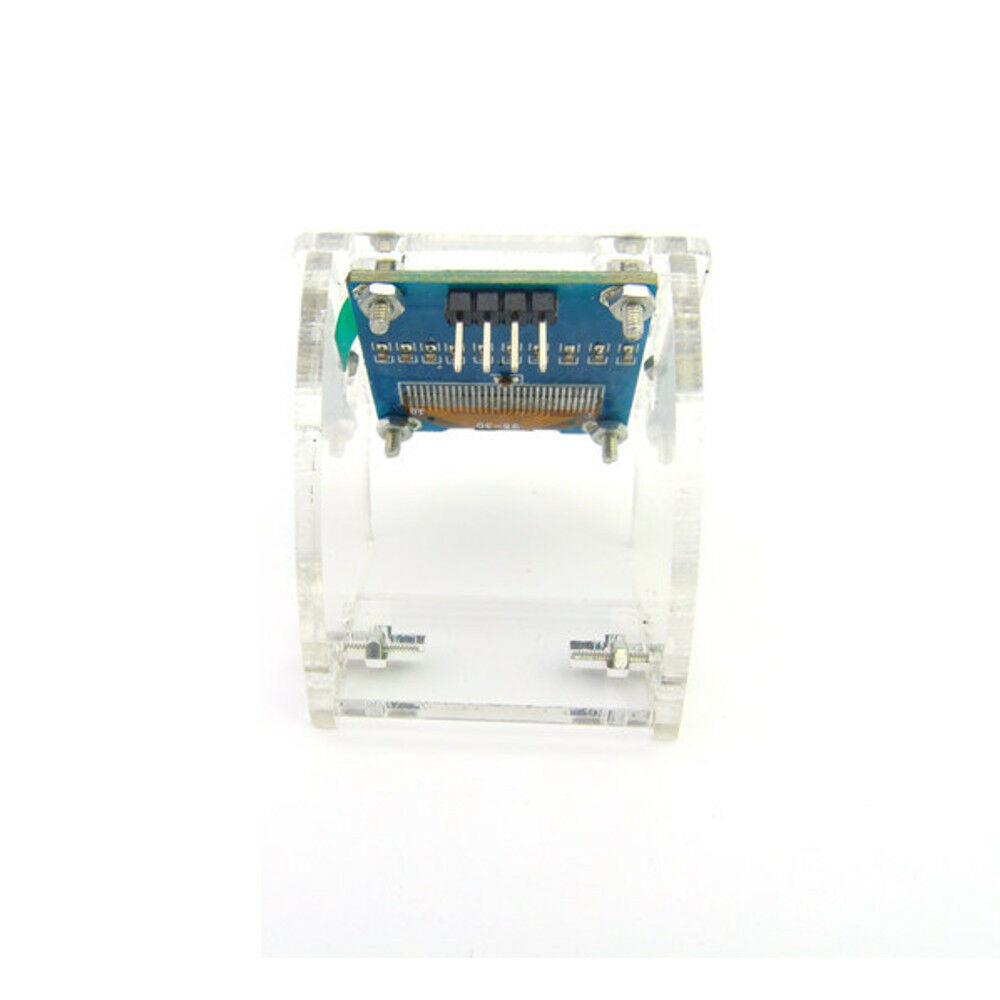

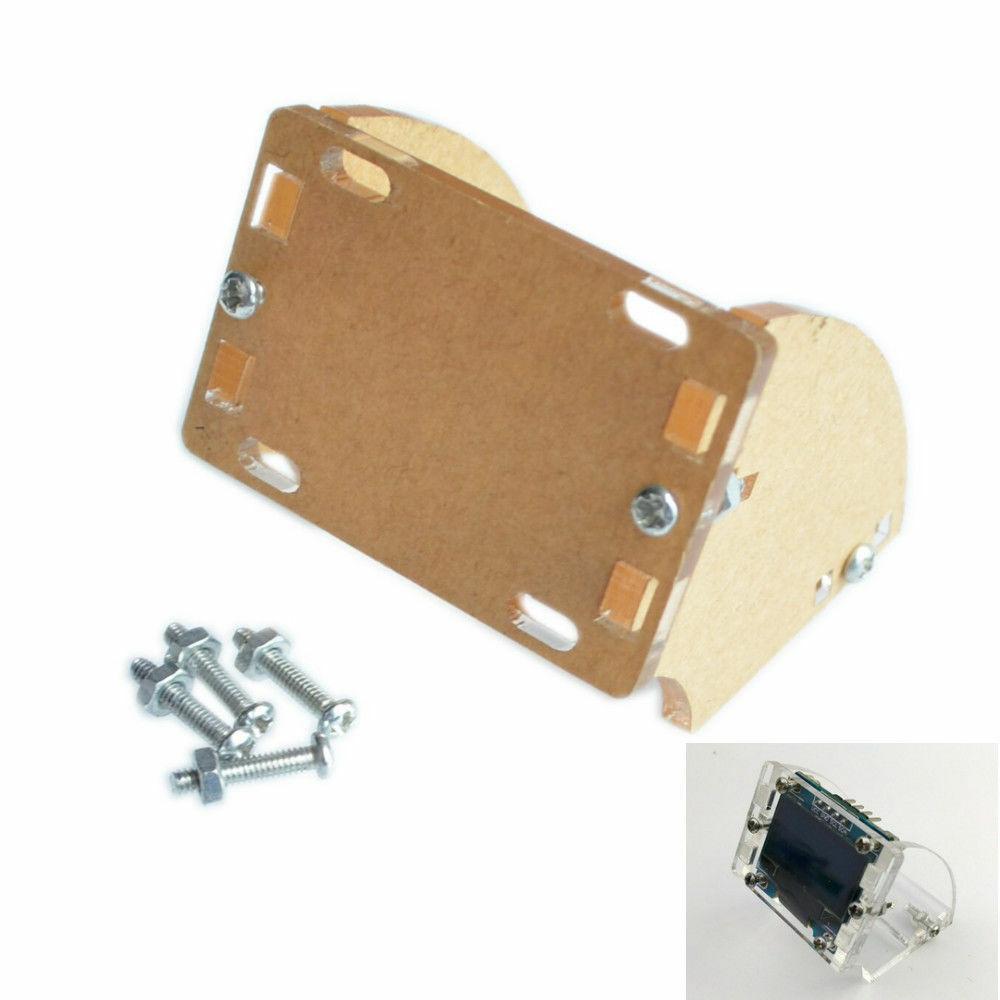

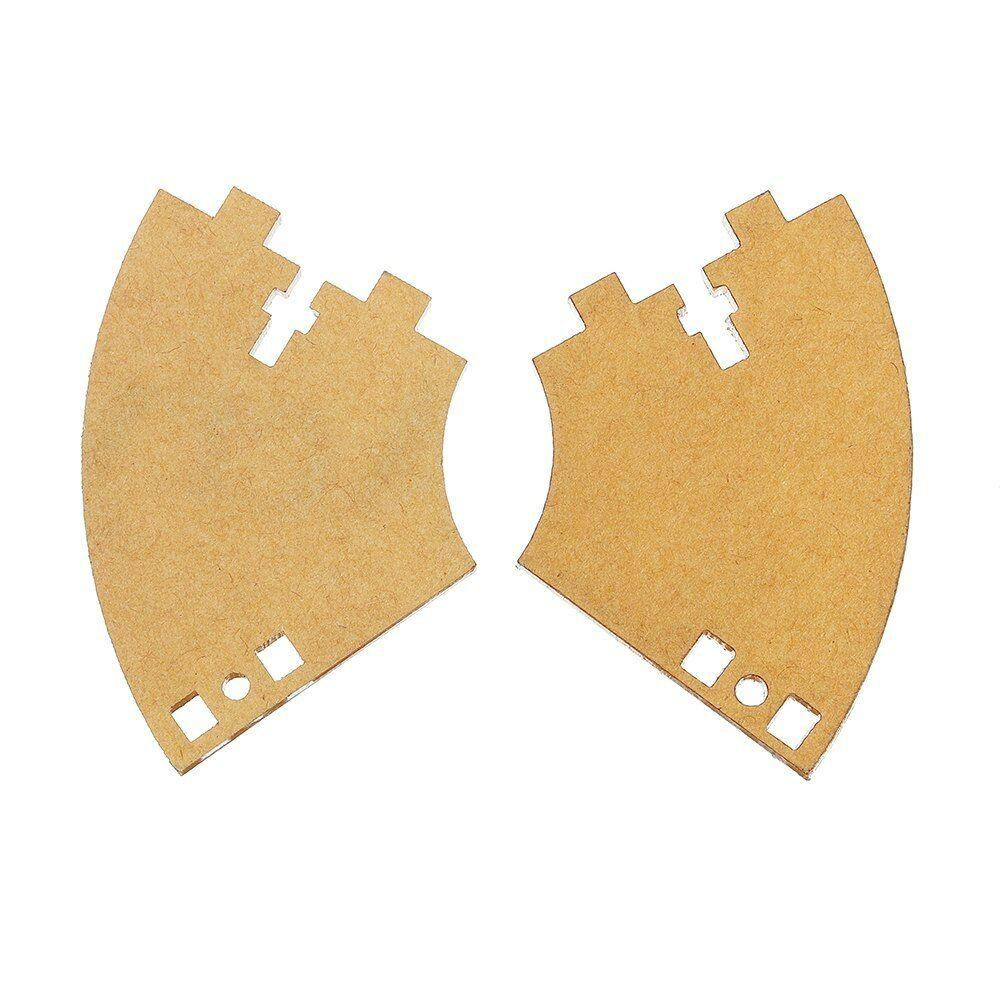

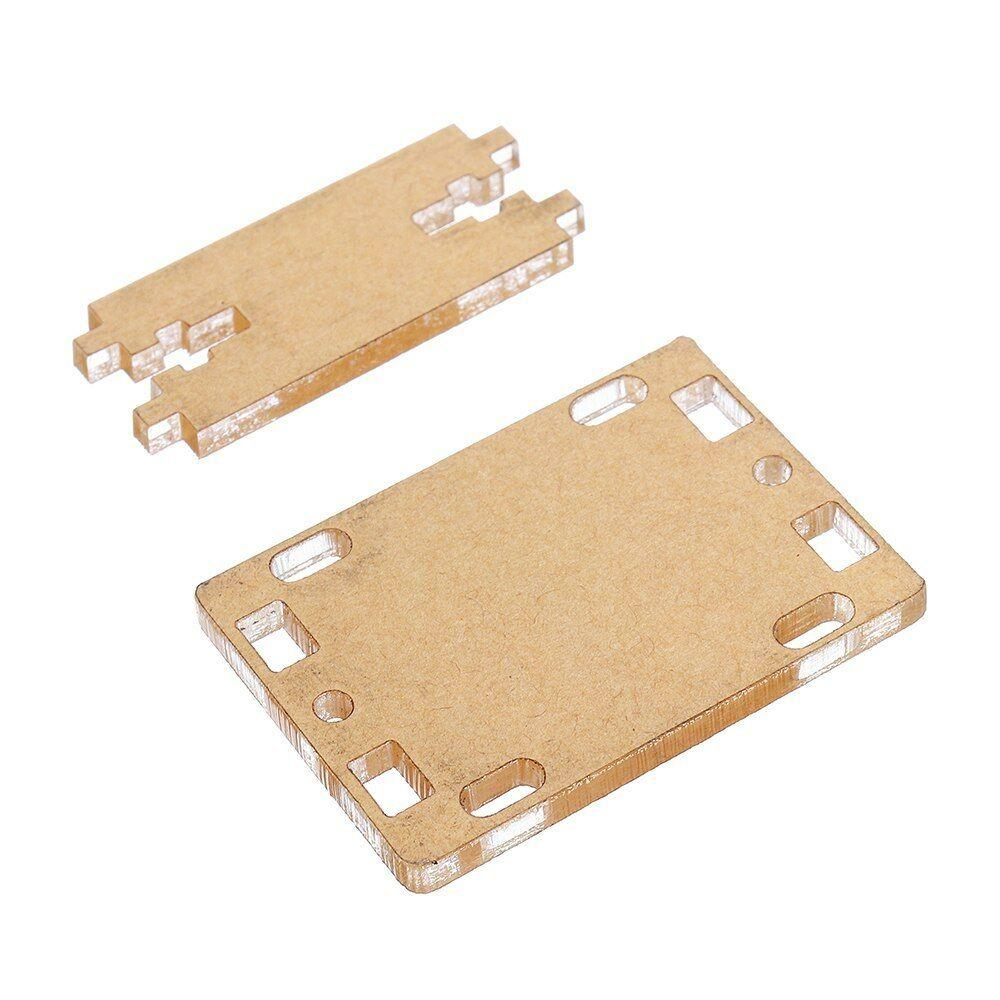

Transparent Shell Acrylic Case For 128X64 0.96 Inch OLED
Material: Acrylic sheet

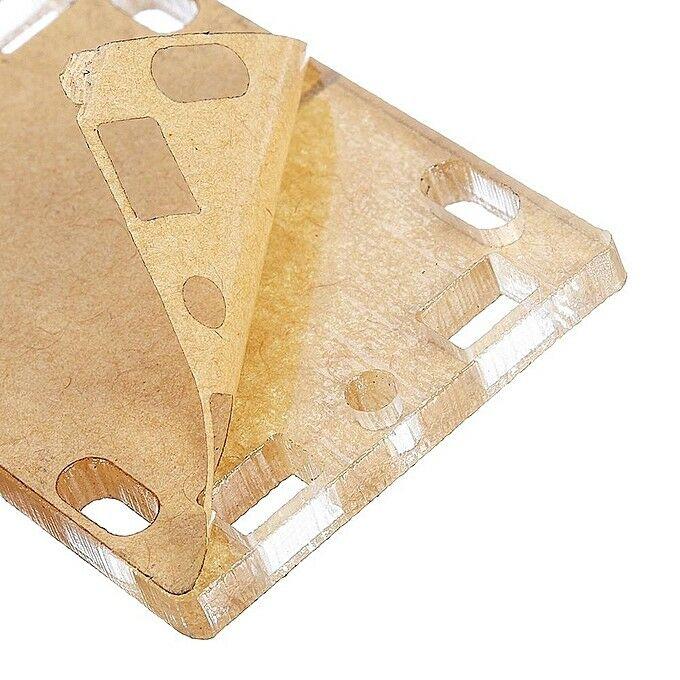

Color: Transparent (Please tear the protective film before use)
Uses: For 0.96 Inch OLED LCD LED display module bracket

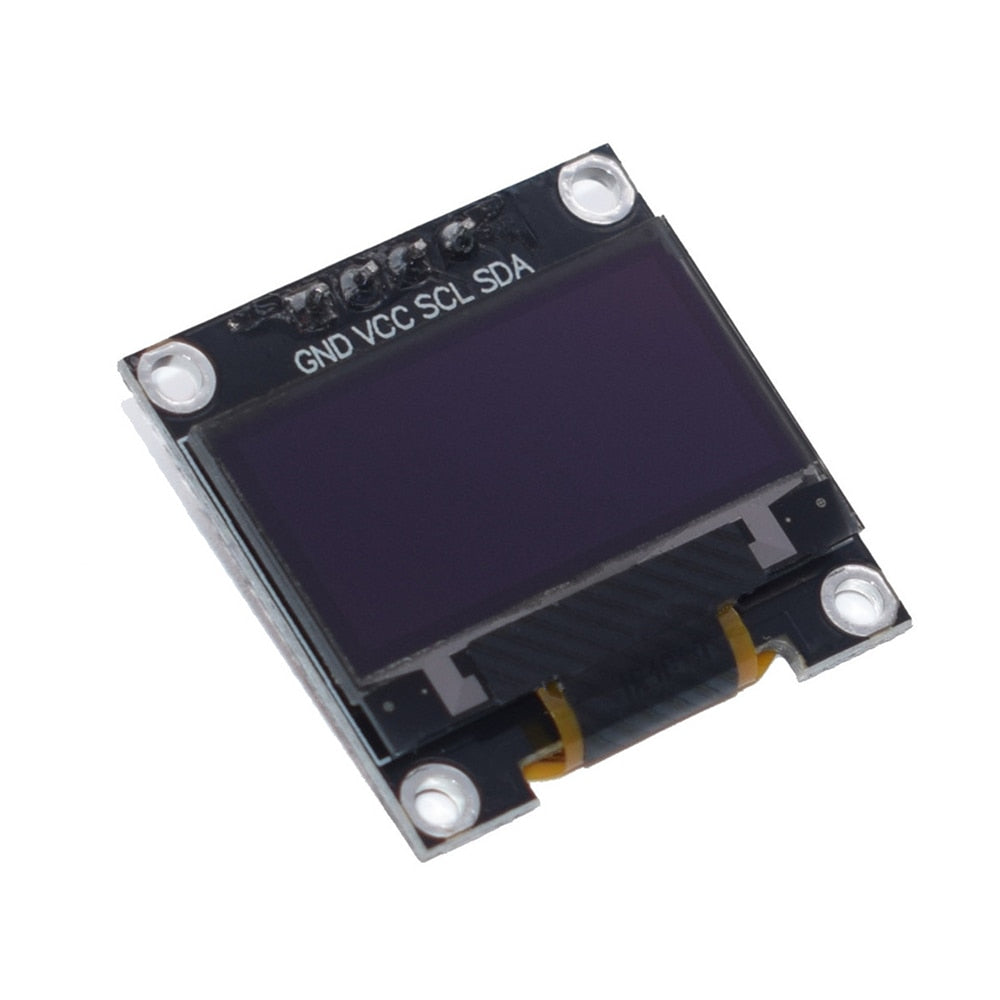

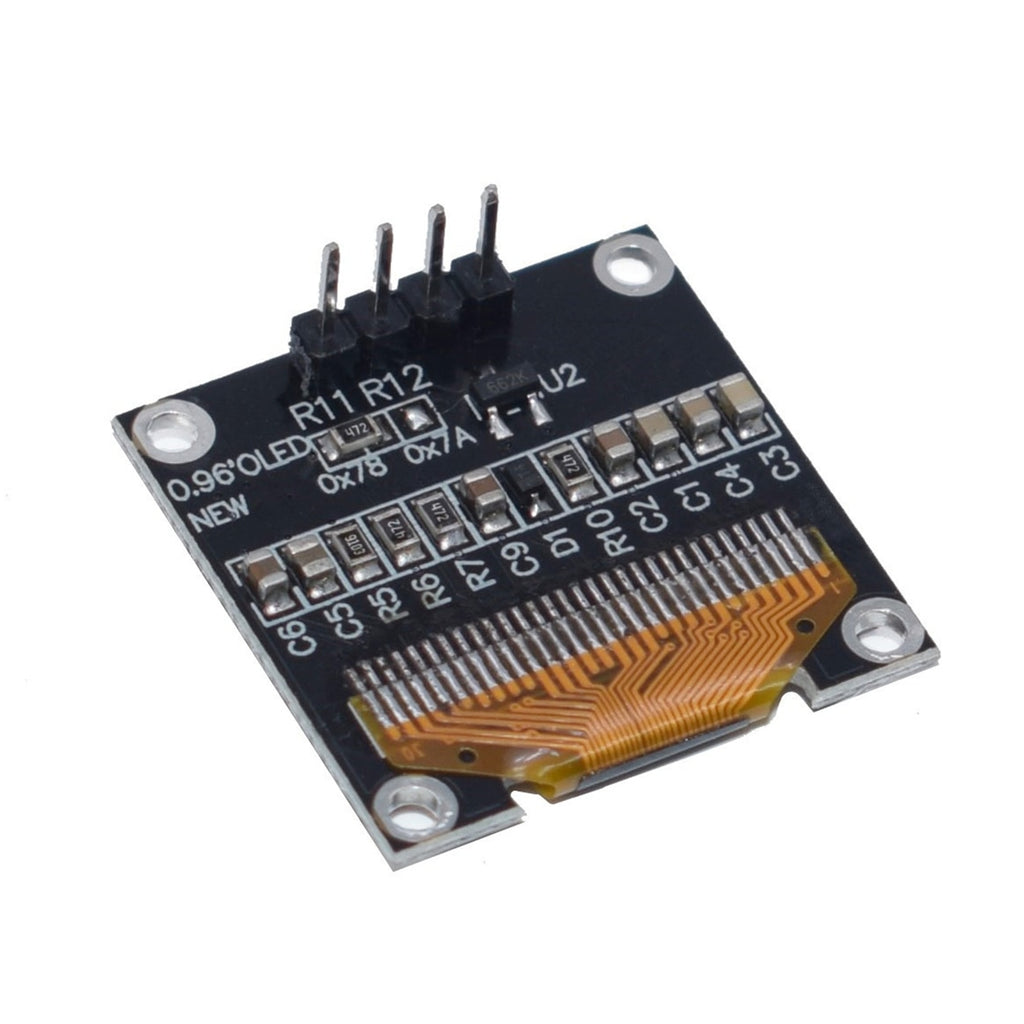

0.96" I2C IIC 128X64 OLED Blue Color
Size: 0.96
Resolution: 128X64
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees

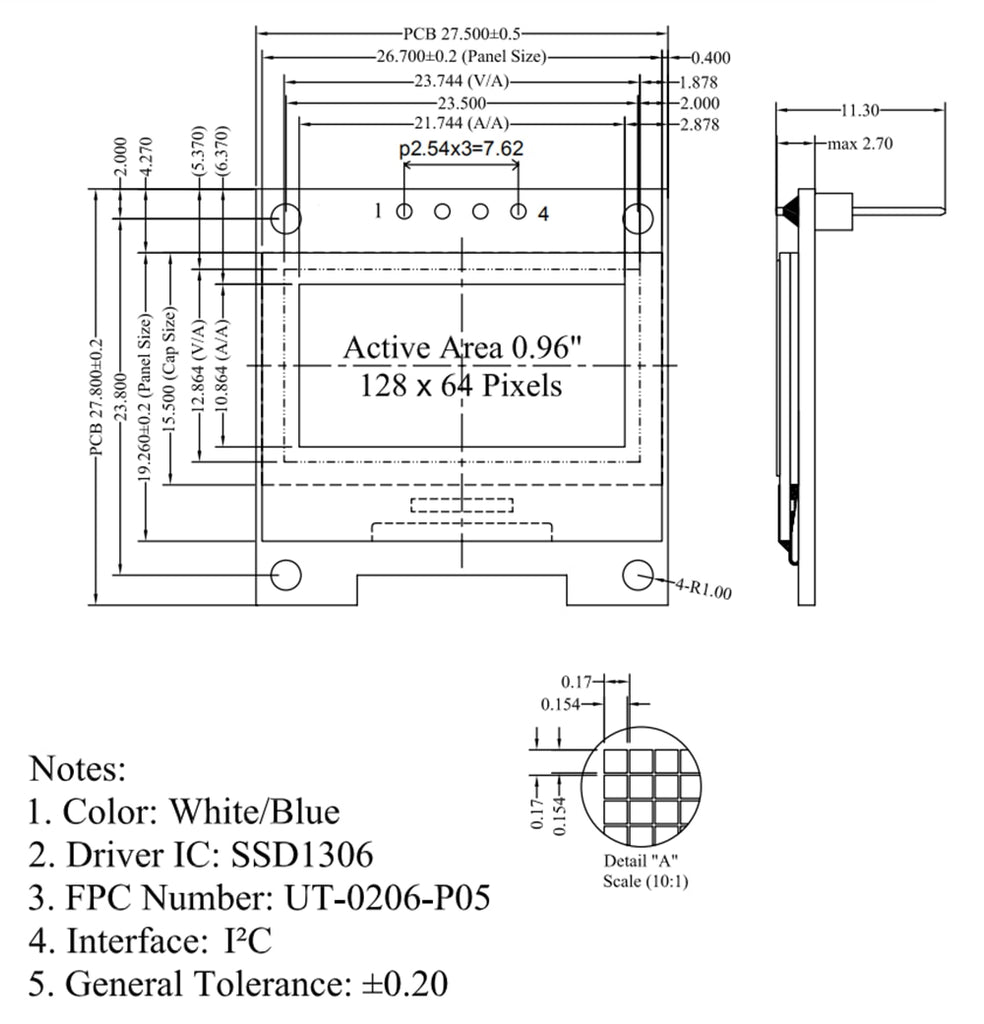

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Communication: IIC, only two I / O ports
Backlight: OLED self light, no backlight
Interface:
GND: Ground
VCC: 3.3-5V
SCK: Serial Clock
SDA: Serial Data
Driver IC: SSD1306
What is OLED ?
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
The use of OLED technology offers the following advantages for flat-panel displays ?
1. A simplified manufacturing process compared to TFT-LCD (See comparison of Picture 1 and Picture 2 below)
2. Self-emitting light, in contrast to the required backlight for TFT-LCD
3. High luminosity
4. Lightweight and thin (less than 2 mm)
5. Low operating voltage and power consumption
6. Wide range of operating temperatures (-40℃ to 85℃)
A Comparison of OLED and TFT-LCD Display Technologies
How Does OLED Emit Light ?
OLED”s basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.
Package included:
1 x 0.96" I2C IIC 28X64 LED OLED LCD Display Module for Arduino Blue

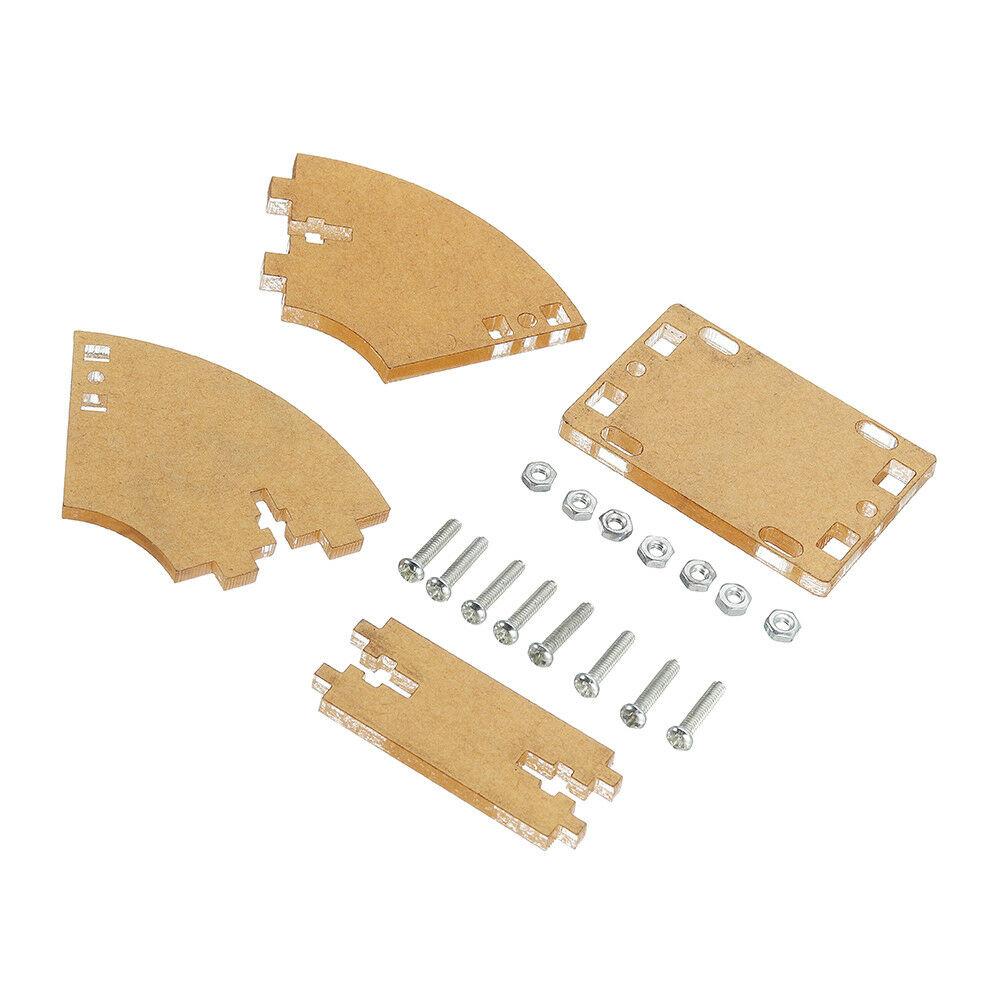

1 x Transparent Shell Acrylic Case For 128X64 0.96 Inch OLED
