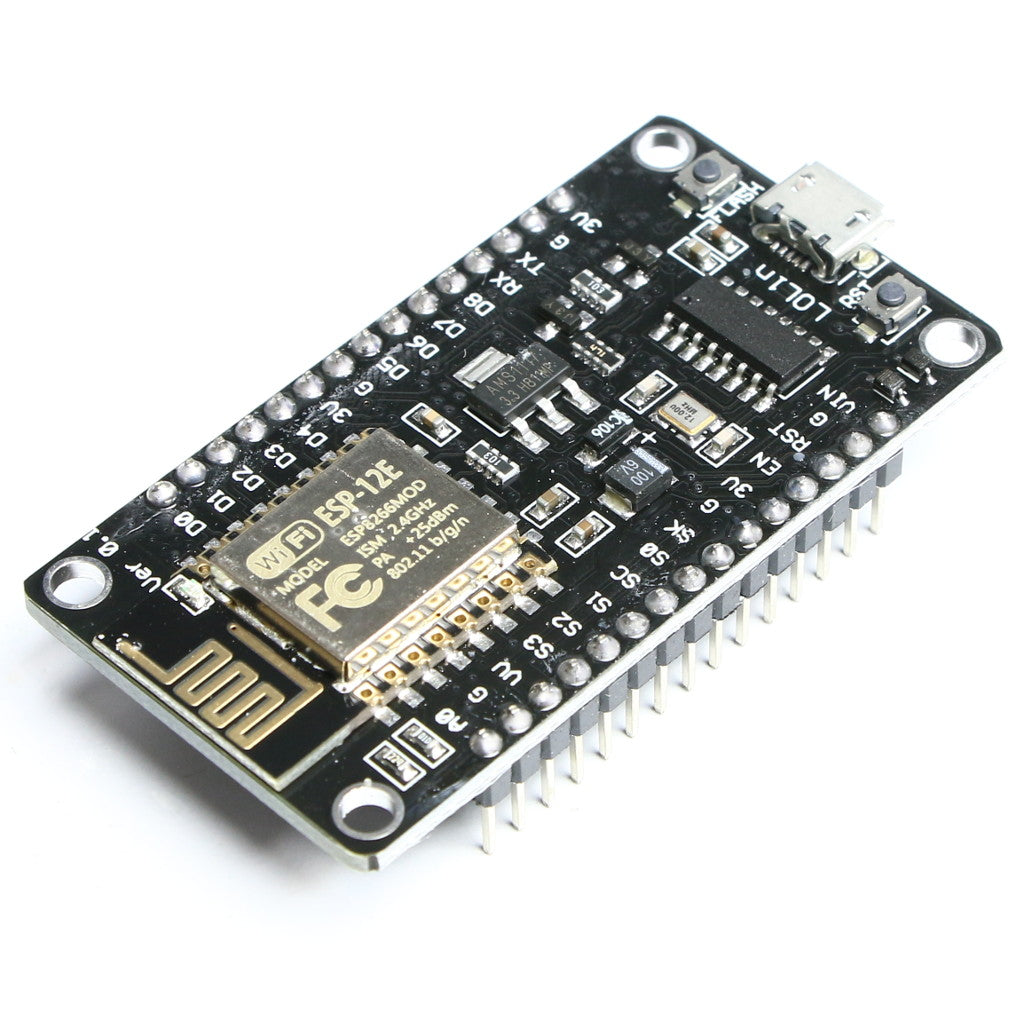

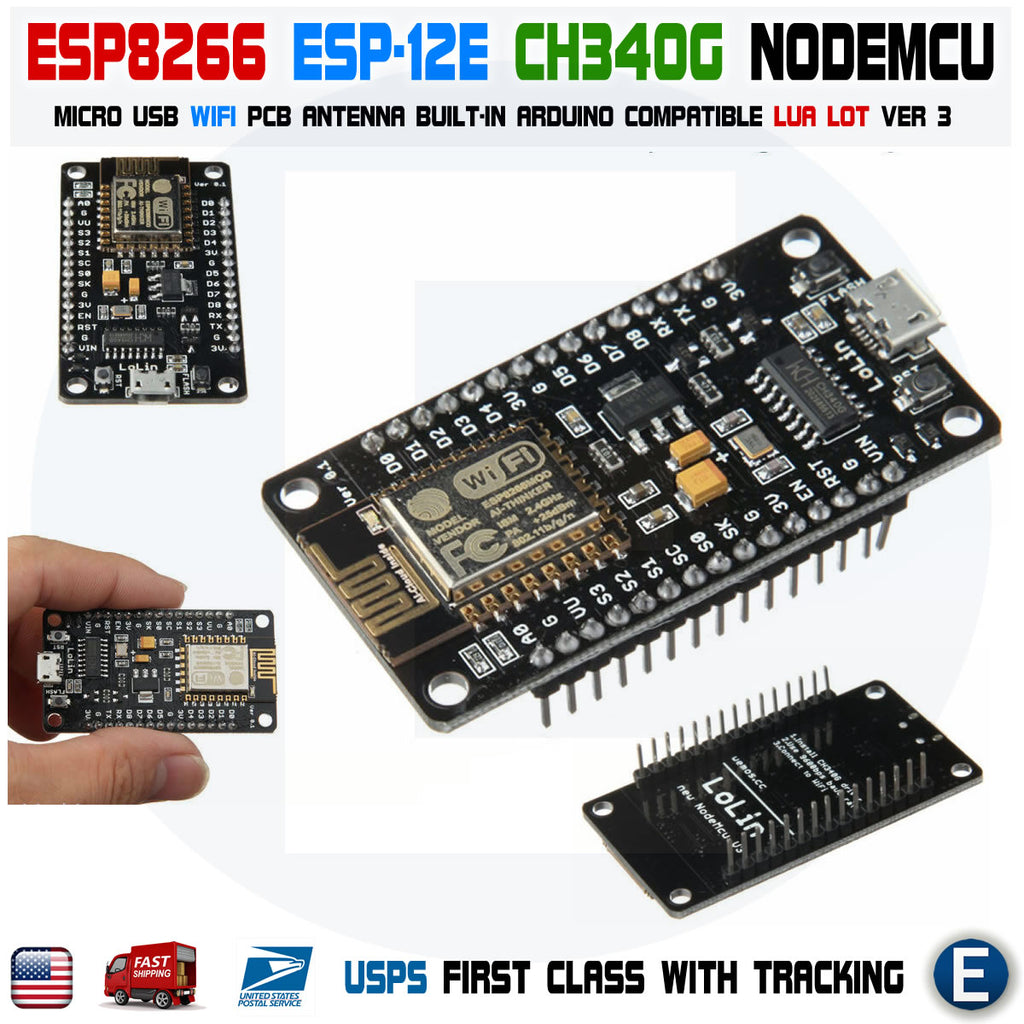

NodeMCU ESP-12E ESP8266 WiFi LUA IoT CH340G V3 New Version Arduino Compatible

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Other Electronic Components
A-03-03-02
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines. The Development Kit based on ESP8266, integrates GPIO, PWM, ...
$4.63
  customers are viewing this product
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines. The Development Kit based on ESP8266, integrates GPIO, PWM, IIC, 1-Wire and ADC all in one board.
  • USB-TTL included, plug&play
  • 10 GPIO, every GPIO can be PWM, I2C, 1-wire
  • FCC CERTIFIED WI-FI module(Coming soon)
  • PCB antenna
  • Use Arduino IDE for programming
  • Uses CH340G instead of CP2102.
  • NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
  • Communication interface voltage: 3.3V.
  • Antenna type: Built-in PCB antenna is available.
  • Wireless 802.11 b/g/n standard
  • WiFi at 2.4GHz, support WPA / WPA2 security mode
  • Support STA/AP/STA + AP three operating modes
  • Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
  • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
  • AD0: 1 channel ADC
  • Power input: 4.5V ~ 9V (10VMAX), USB-powered
  • Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
  • Transfer rate: 110-460800bps
  • Support UART / GPIO data communication interface
  • Remote firmware upgrade (OTA)
  • Support Smart Link Smart Networking
  • Working temperature: -40 ℃ ~ + 125 ℃
  • Drive Type: Dual high-power H-bridge driver
  • ESP8266 has IO Pin
  • Don't need to download resetting
  • A great set of tools to develop ESP8266
  • Flash size: 4MByte

Wireless 802.11 b / g / n standard
Support STA / AP / STA + AP three operating modes
Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 channel ADC
Power input: 4.5V ~ 9V (10VMAX), USB-powered
Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
Transfer rate: 110-460800bps
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
Working temperature: -40 ℃ ~ + 125 ℃
Drive Type: Dual high-power H-bridge driver

Package include:

1 x ESP8266 NodeMCU ESP-12E
