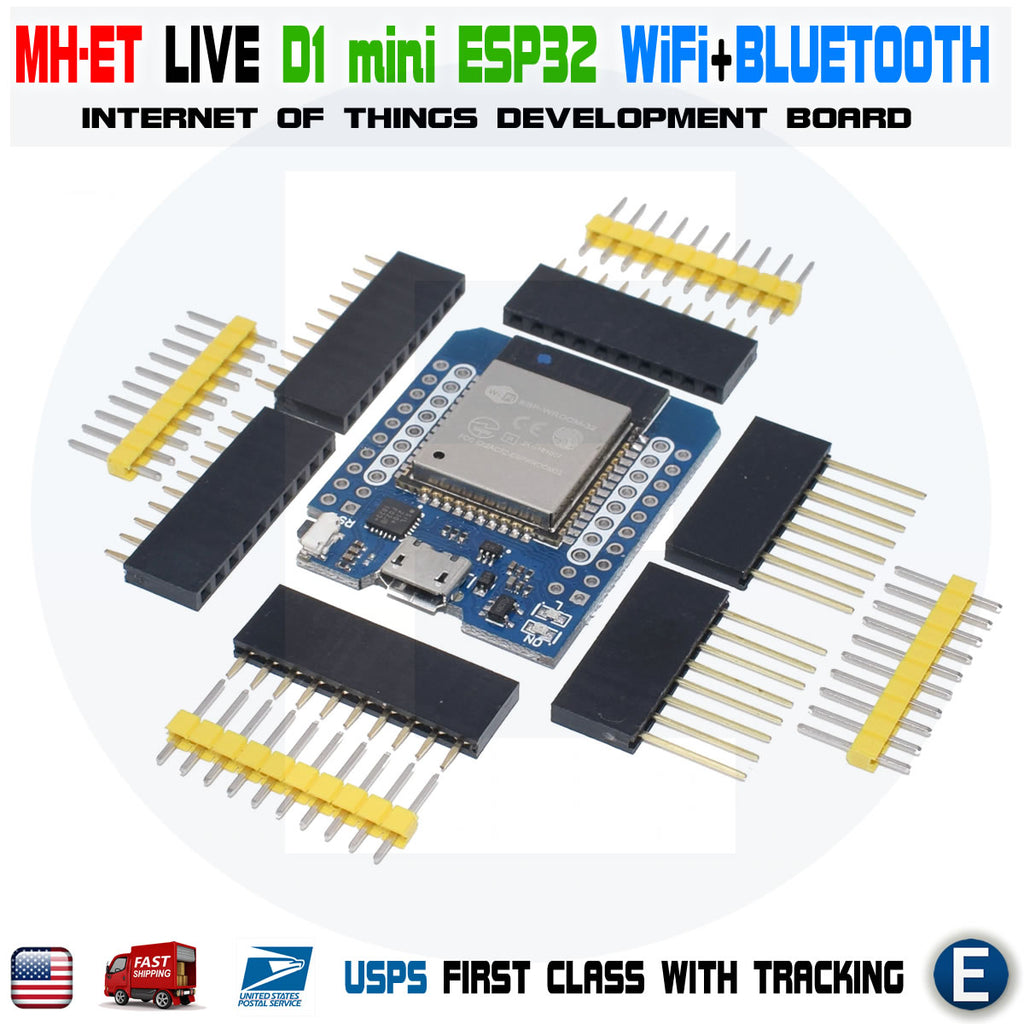

0.66 Inch OLED + Wemos Mini D1 ESP32 CP2104 ESP32S WIFI Bluetooth 64x48 Arduino
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailo...
$12.89
customers are viewing this product
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current
|
Wi-fi |
802.11 b/g/n/e/i |
|---|---|
| 802.11 n (2.4 GHz), up to 150 Mbps | |
| 802.11 e: QoS for wireless multimedia technology | |
| WMM-PS, UAPSD | |
| A-MPDU and A-MSDU aggregation | |
| Block ACK | |
| Fragmentation and defragmentation | |
| Automatic Beacon monitoring/scanning | |
| 802.11 i security features: pre-authentication and TSN | |
| Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) | |
| Infrastructure BSS Station mode/SoftAP mode | |
| Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management | |
| UMA compliant and certified | |
| Antenna diversity and selection | |
| Compliant with Bluetooth v4.2 BR/EDR and BLE specification | |
|
Bluetooth |
Class-1, class-2 and class-3 transmitter without external power amplifier |
| Enhanced power control | |
| +10 dBm transmitting power | |
| NZIF receiver with -98 dBm sensitivity | |
| Adaptive Frequency Hopping (AFH) | |
| Standard HCI based on SDIO/SPI/UART | |
| High speed UART HCI, up to 4 Mbps | |
| BT 4.2 controller and host stack | |
| Service Discover Protocol (SDP) | |
| General Access Profile (GAP) | |
| Security Manage Protocol (SMP) | |
| Bluetooth Low Energy (BLE) | |
| ATT/GATT | |
| HID | |
| All GATT-based profile supported | |
| SPP-Like GATT-based profile | |
| BLE Beacon | |
| A2DP/AVRCP/SPP, HSP/HFP, RFCOMM | |
| CVSD and SBC for audio codec | |
| Bluetooth Piconet and Scatternet |
0.66 OLED DISPLAY MODULE
Features:
1. Fast response: This product is an OLED display with a faster response time than TFT-LCD, which is a few microseconds to tens of microseconds.
2. Good low temperature characteristics: The product has good low temperature characteristics and can be used normally at minus 40 °C.
3. No need for back light source: The diode used in this product will emit light by itself, so no back light source is needed, the conversion efficiency is high, and the energy consumption is lower than that of liquid crystal.
4. Low-voltage DC drive: This product can only be lit with a voltage of 3.3V, and the brightness is high.
5. Active illumination: This product has the characteristics of active illumination, has a wide viewing angle, and is not distorted from the side.
Descriptions:
1. This product is suitable for automotive electronics, network communication, security equipment, medical electronics, measuring instruments, smart home, household appliances, lighting electronics, 3C digital, radio and television education, Internet of Things IoT, wearable devices, new energy and other fields.

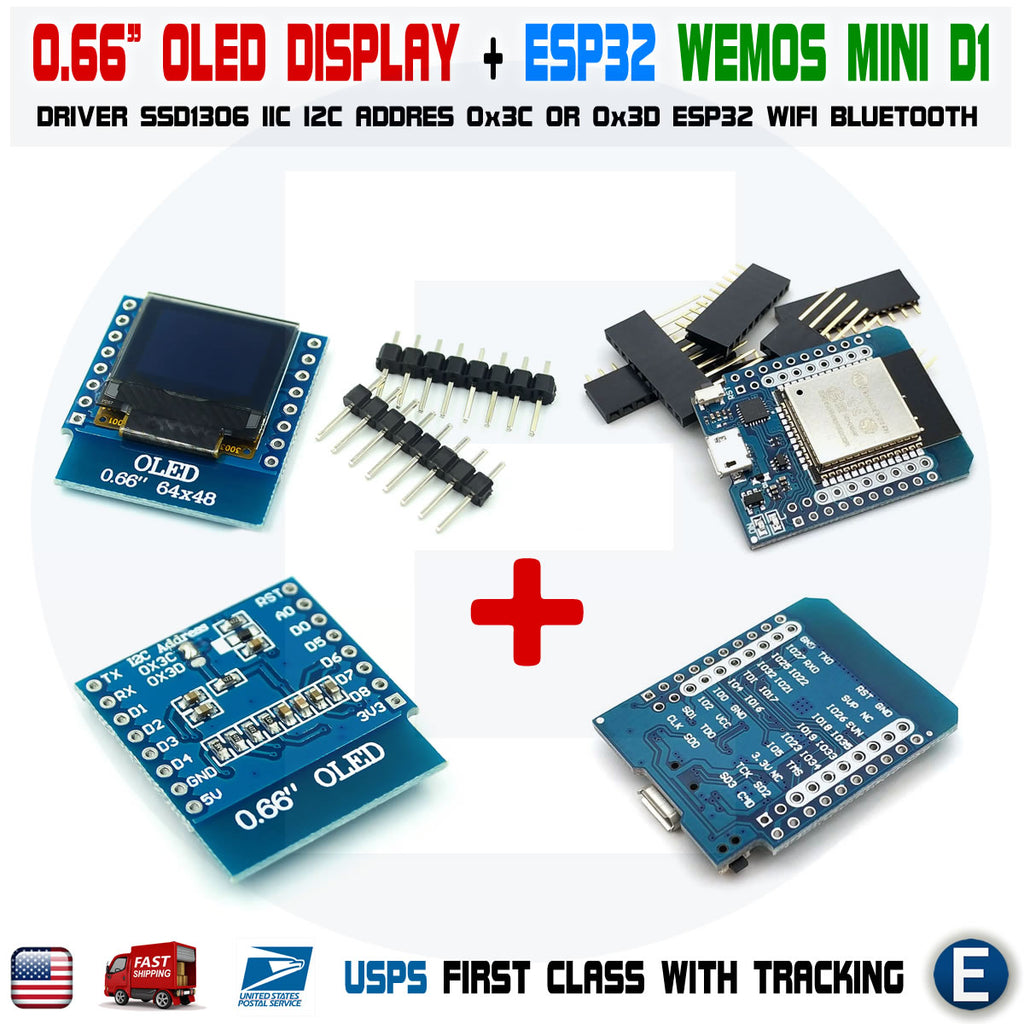

2. This product uses a 0.66-inch OLED display, which is used on the D1 mini development board to facilitate its display function.

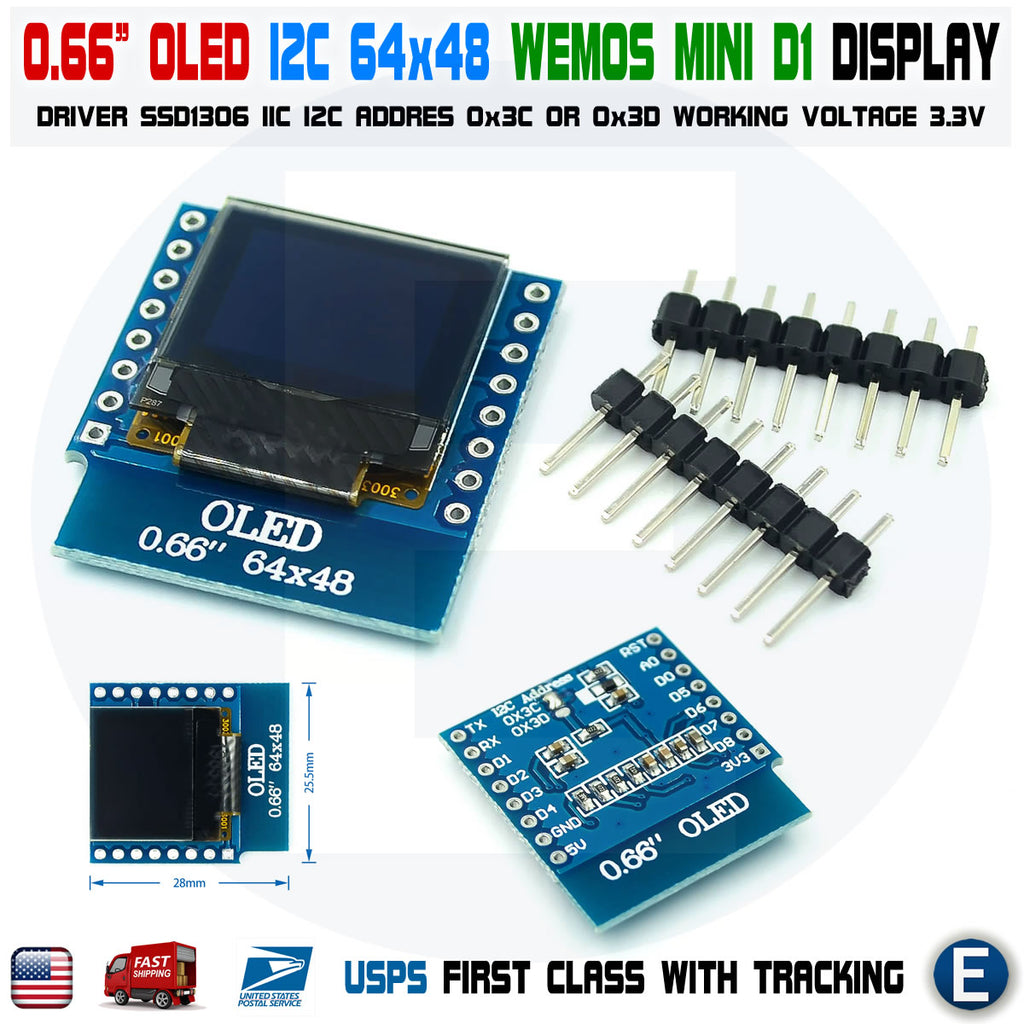

Specifications:
Display Color: White
Model: HW-699
Screen size: 0.66 inch diagonal
Resolution: 64*48 pixels
Working voltage: 3.3V
Driver IC: SSD1306
Interface: IIC (I2C)
IIC address: 0x3C or 0x3D
Package Included:
0.66 Inch OLED + Wemos Mini D1 ESP32 CP2104 ESP32S WIFI Bluetooth 64x48 Arduino
